Transform your 1948-1954 Chevrolet passenger car with a Scott’s Hotrods complete custom chassis, engineered and Built-To-Order specifically for your vehicle, engine, transmission, wheel and tire combination, desired ride height and driving style. Whether you’re building a classic Chevy street cruiser, custom, restomod or ProTouring car, Scott’s replaces the limitations of the original Chevrolet frame and suspension with a modern, performance-engineered foundation built for better handling, braking, steering and ride quality.
Every Scott’s 1948-1954 Chevy car chassis is handcrafted in Knoxville, Tennessee using American-made materials and features Scott’s proprietary independent front suspension, rack-and-pinion steering, tubular control arms, an adjustable 4-bar rear suspension and a Moser Ford 9-inch rear end. Choose a coilover chassis for everything from a comfortable cruiser to an aggressive ProTouring build, or a SuperSlam airbag chassis for adjustable ride height and the ability to lay the car low. Every chassis is 100% TIG-welded and Built-To-Order — not pulled from a warehouse as a one-size-fits-all frame.
If you are looking for the MOST complete chassis available for your ’48-’54 Chevy Car, you have come to the right place. Each and every chassis is Built-To-Order per the vehicle and customer specs. Coilovers (Casual Cruiser to ProTouring) or Airbags (Lay Frame/Rocker, Adjustable On-The-Fly Ride Height). You won’t find any leafs or drum brakes here.
Scott’s Coilover ’48-’54 Chevy Car Chassis – Starting at $14,750
Scott’s SuperSlam ’48-’54 Chevy Car Chassis – Starting at $15,650
*MORE PRICING INFORMATION IS IN THE NEXT TABS*
SCOTT’S CHASSIS FEATURES
Mandrel Bent 2”x4”x.120-wall tube frame rails

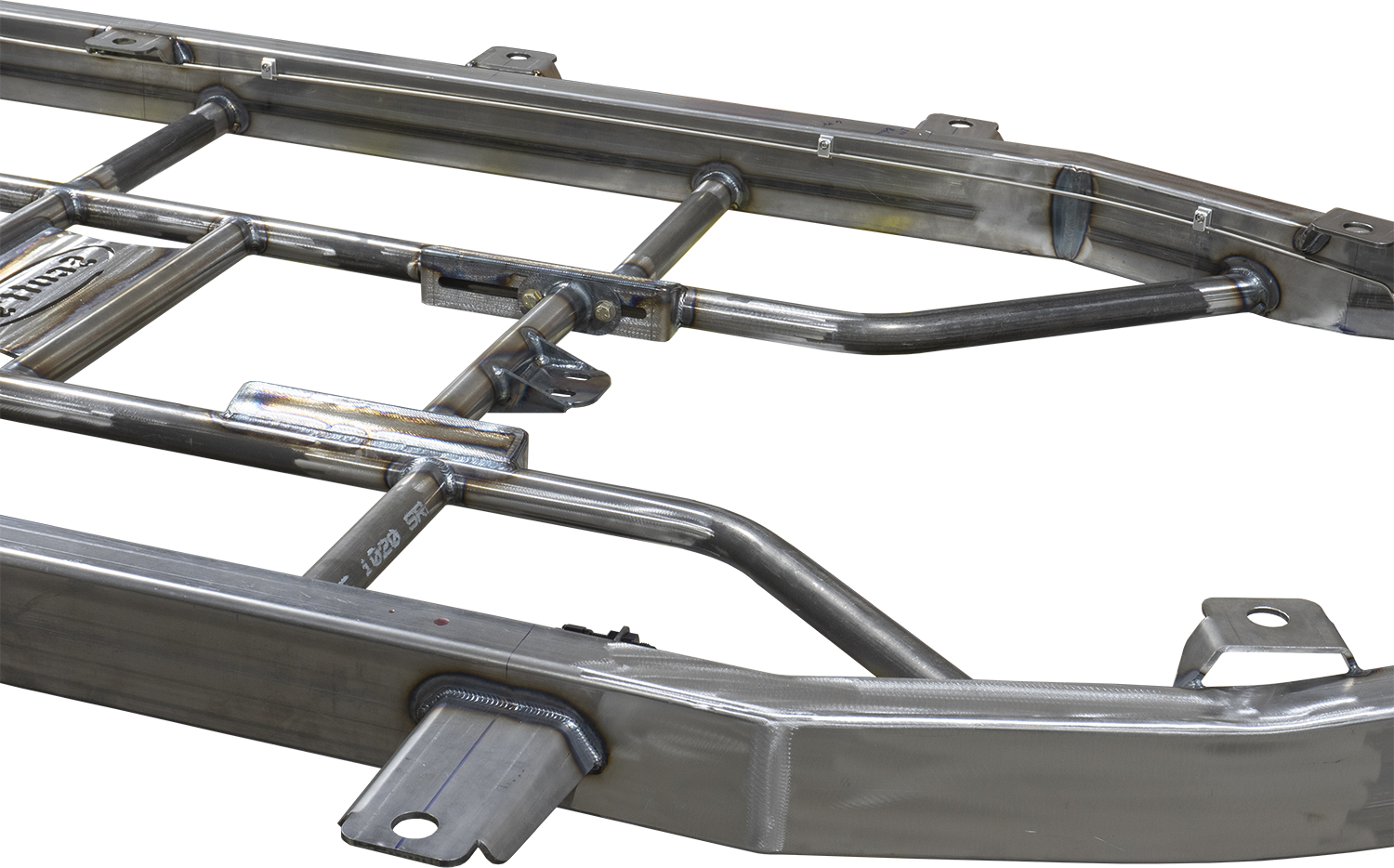

8-Point 1-1/2” DOM tubular Chassis Crossmember
1-piece 2”x4”x3/16”-wall tube IFS Crossmember
100% TIG-welded

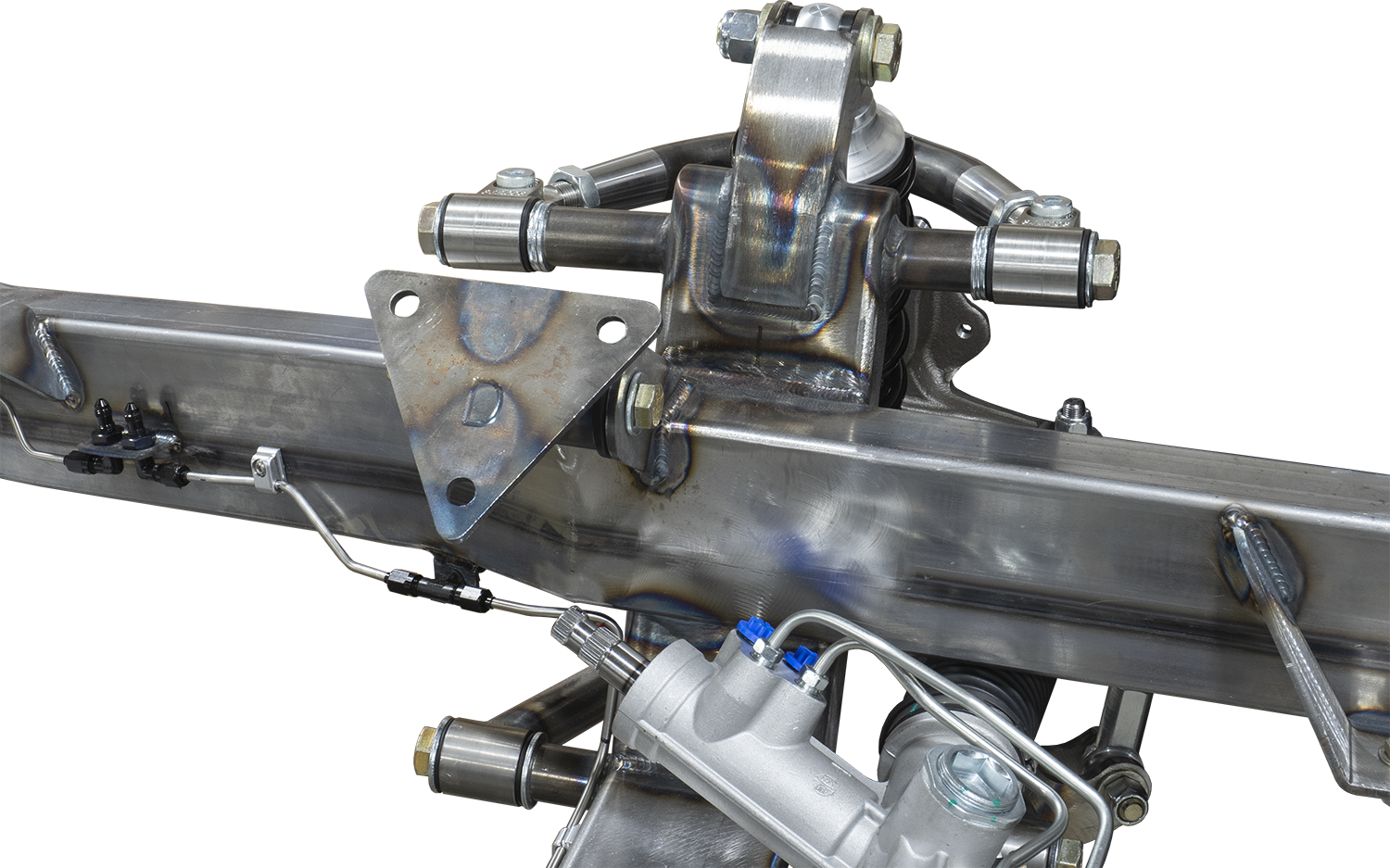

Scott’s IFS
Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
Built-in Anti-Dive
Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
Oversized, Serviceable Press-In Ball Joints
Standard or Drop Forged Steel Spindles
Aldan American Single-Adjustable Coilovers or Airbags & Shocks
Manual Steering Rack & Pinion

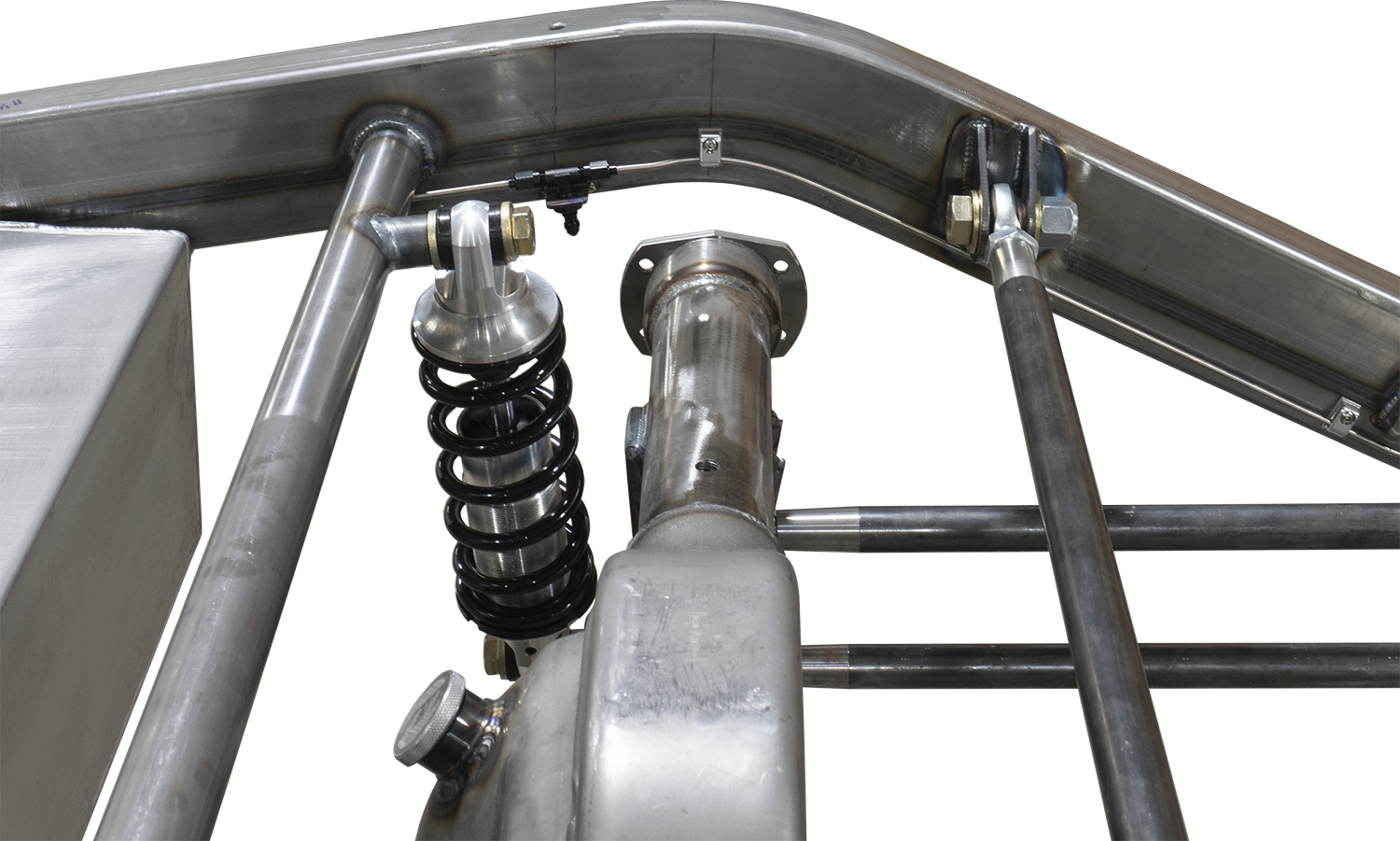

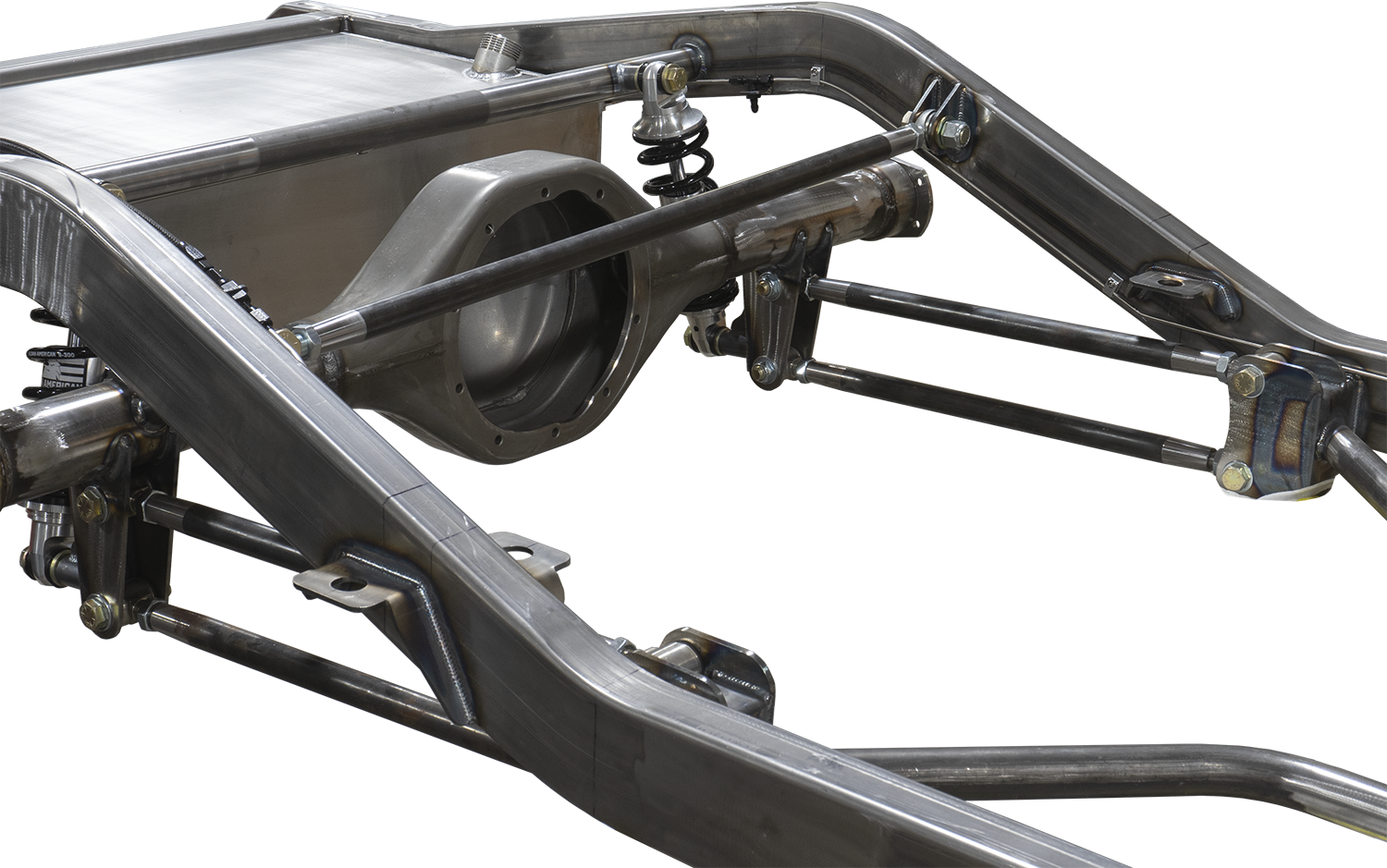

Scott’s 4-Bar
1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
FK Bearing Heim Joints – RH- & LH-Thread
Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
Body Mounts
All Grade-8 Hardware
LIFETIME GUARANTEE
Scott's Hotrods Chassis Pricing 2026
ITEM/UPGRADE
DESCRIPTION
PRICE
COILOVER CHASSIS
COILOVER CHASSIS
$14,750
SUPERSLAM CHASSIS
SUPERSLAM CHASSIS
$15,650
REAR STEER CHASSIS
ADD
$1,000
LONG BED TRUCK
ADD
$1,500
COILOVERS
Aldan American Single-Adjustable
$0
RideTech Single-Adjustable
$1,650
Aldan American Double-Adjustable
$1,000
RideTech Triple-Adjustable
$3,800
RACK & PINION
Power
$330
Power Rear Steer
$990
SWAY BAR
1" Solid Sway Bar
$390
Torsion Spline Sway Bar, FRONT
$840
Torsion Spline Sway Bar, FRONT & REAR
$1,680
MOTOR MOUNTS
FORD MODULAR, 4.6, 5.4, 5.0
$303
SBF, WINDOSR
$204
BBF, 390, 427, 428
$204
BBF, 429, 460
$204
LT
$277
LS
$204
FORD, Y-BLOCK
$204
SBC
$185
BBC
$185
318, 360, MOPAR, EARLY
$216
352, 392, MOPAR, HEMI
$260
318, 360, MOPAR, LATE
$216
426, MOPAR, HEMI
$260
HELLCAT, MOPAR
$216
440, MOPAR
$216
5.7, 6.1, MOPAR, HEMI
$216
TRANSMISSION
TRANS MOUNT
$400
SPINDLES
WILWOOD PRO
$430
PRO M2 HUB*
$650
BRAKES (1/2"-20 STUDS)
11" D&S Wilwood Kit, Red or Black
$2,411
12" D&S Wilwood Kit, Red or Black
$2,525
13" D&S Wilwood Kit, Red or Black
$4,452
14" D&S Wilwood Kit, Red or Black
$4,846
14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,235
15" & 14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,399
15" & 14" Slotted Wilwood Kit, Red or Black, AERO, PRO*
$5,261
PRO M2 HUB*
12" D&S Wilwood Kit, Red or Black
$2,436
12" D&S Wilwood Kit, Red or Black 6-PISTON
$2,654
13" D&S Wilwood Kit, Red or Black
$4,332
14" D&S Wilwood Kit, Red or Black
$4,698
14" D&S Wilwood Kit, Red or Black, AERO
$5,141
15" & 14" D&S Wilwood Kit, Red or Black, AERO
$5,282
15" & 14" Slotted Wilwood Kit, Red or Black, AERO
$5,282

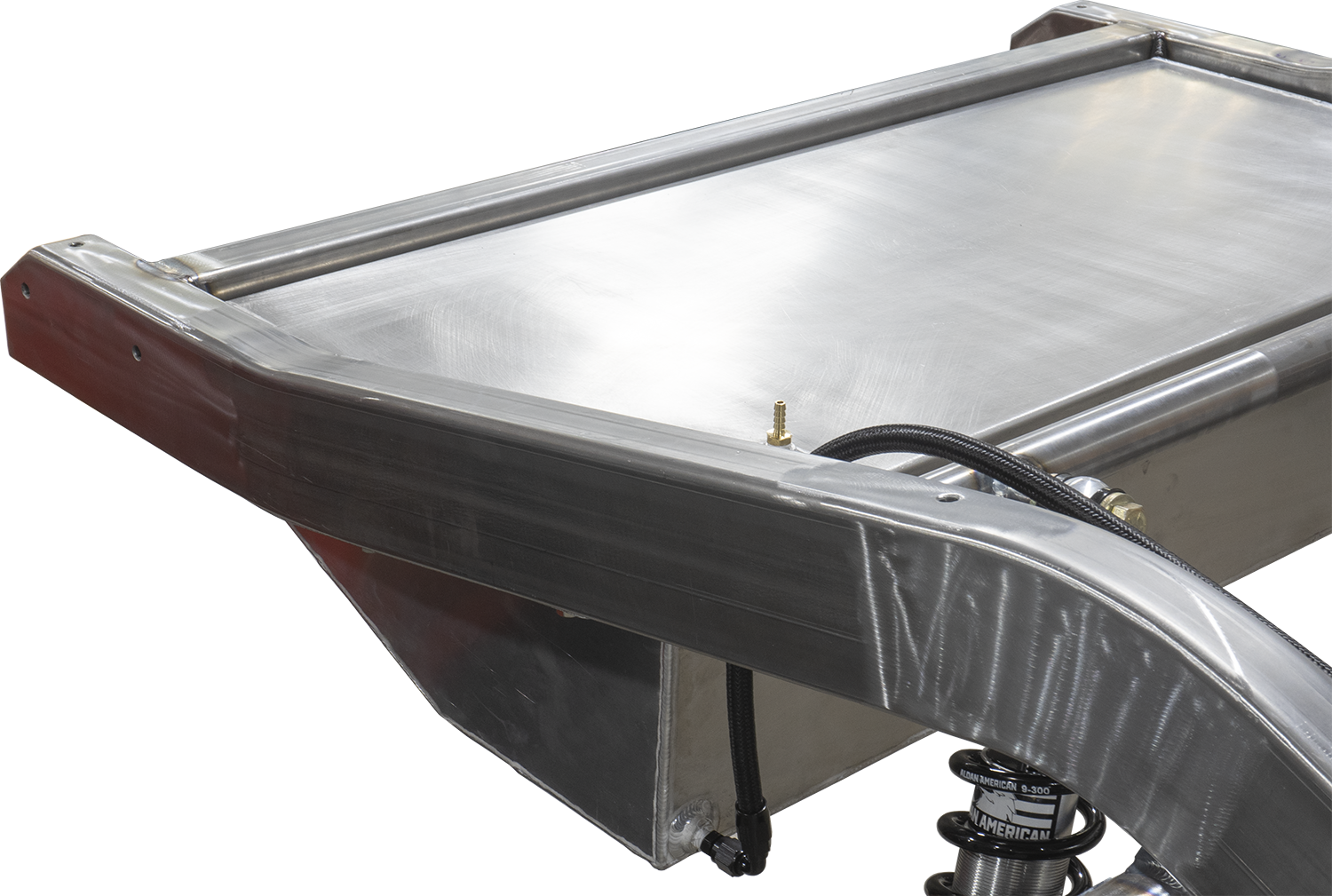

ALUMINUM FUEL TANK
TANK +SENDER
$1,125
TANK +SENDER +PA-4 PUMP
$1,501
TANK +SENDER +PA-6 PUMP
$1,531
TANK +SENDER +PA-8 PUMP
$1,561
TANK +SENDER +PA-9 PUMP
$1,591

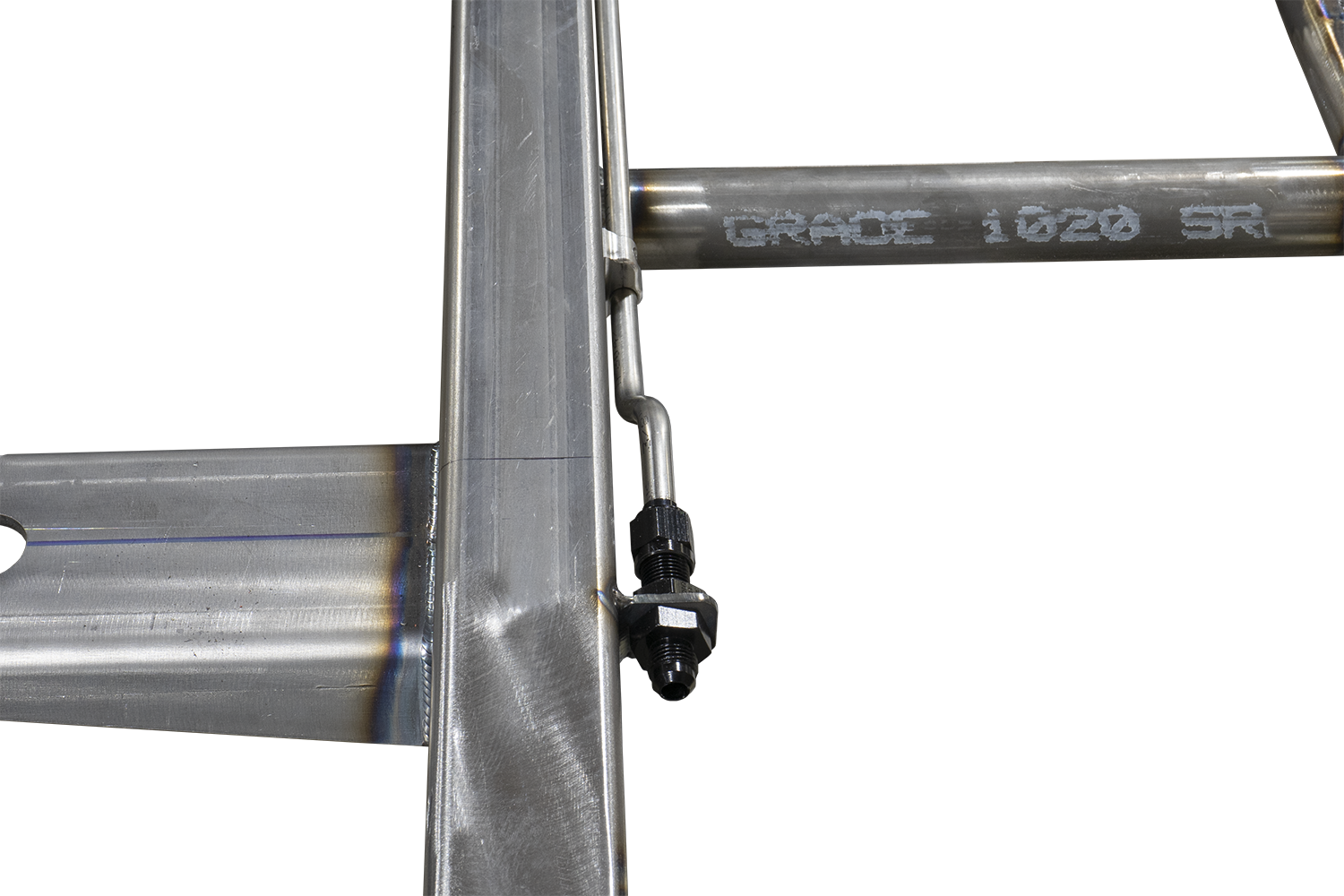

FUEL LINES - STAINLESS STEEL
FEED -6AN 3/8" HARDLINE
$860
FEED -6AN & RETURN -6AN 3/8" HARDLINE
$1,415
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE
$1,600
FEED -8AN & RETURN -8AN 1/2" HARDLINE
$1,815
BRAKE LINES - STAINLESS STEEL
STAINLESS BRAKE LINES +FLEX LINES
$1,290
REAR END
MOSER M9 FAB, 35-SPLINE
$225
BACK BRACE
$250
FULL-FLOATER 31-spline, FAB Housing, Back Brace
$2,500
WATT'S LINK
$1,155
WaveTrac 3rd member (31 or 35-spline)
$2,160
Powder Coated 3rd Member
$120
REM FINISH Gears
$165
POWDER COATING
CHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.
$3,300
ACCESSORIES
GUNI Wheels (set of 4)
$840
POWER STEERING LINE KIT
$185
PARKING BRAKE CABLES
$170
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)
$425
WILWOOD COMPACT MASTER CYLINDER, BLACK w/combo valve
$520
SCOTT'S FUEL CAP
$94
CHASSIS ASSEMBLY
STANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES
$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.
$650
CHASSIS CRATING
NEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)
$1,350
*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771
A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack
*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771
We stand behind ALL of the parts we manufacture. Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties. We are not responsible for these items outside of their original warranty.
All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.
GM Performance Parts LS Engine Oil Pan 12628771

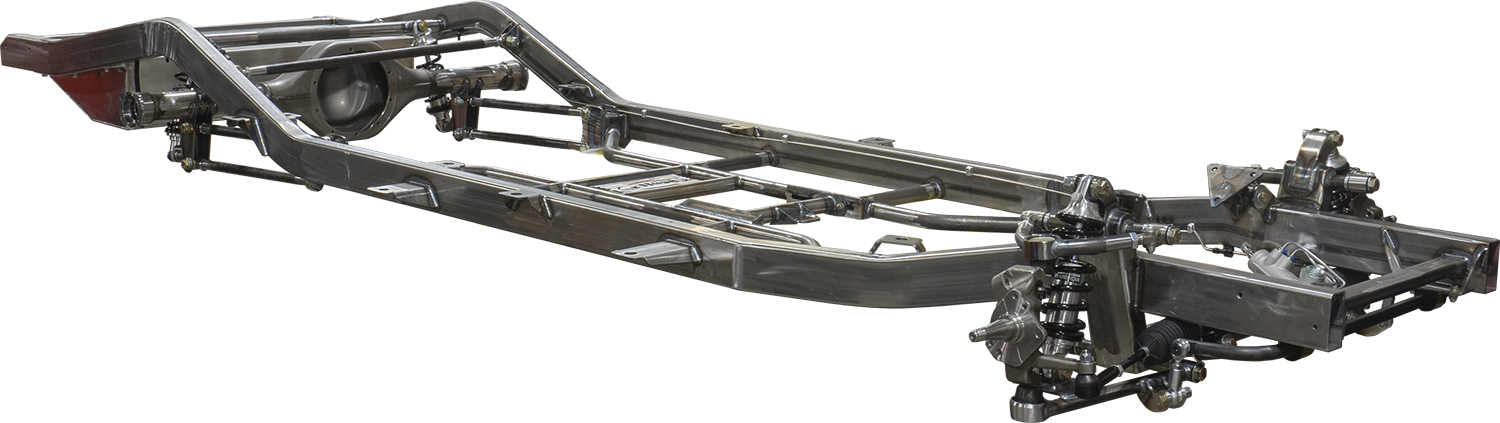

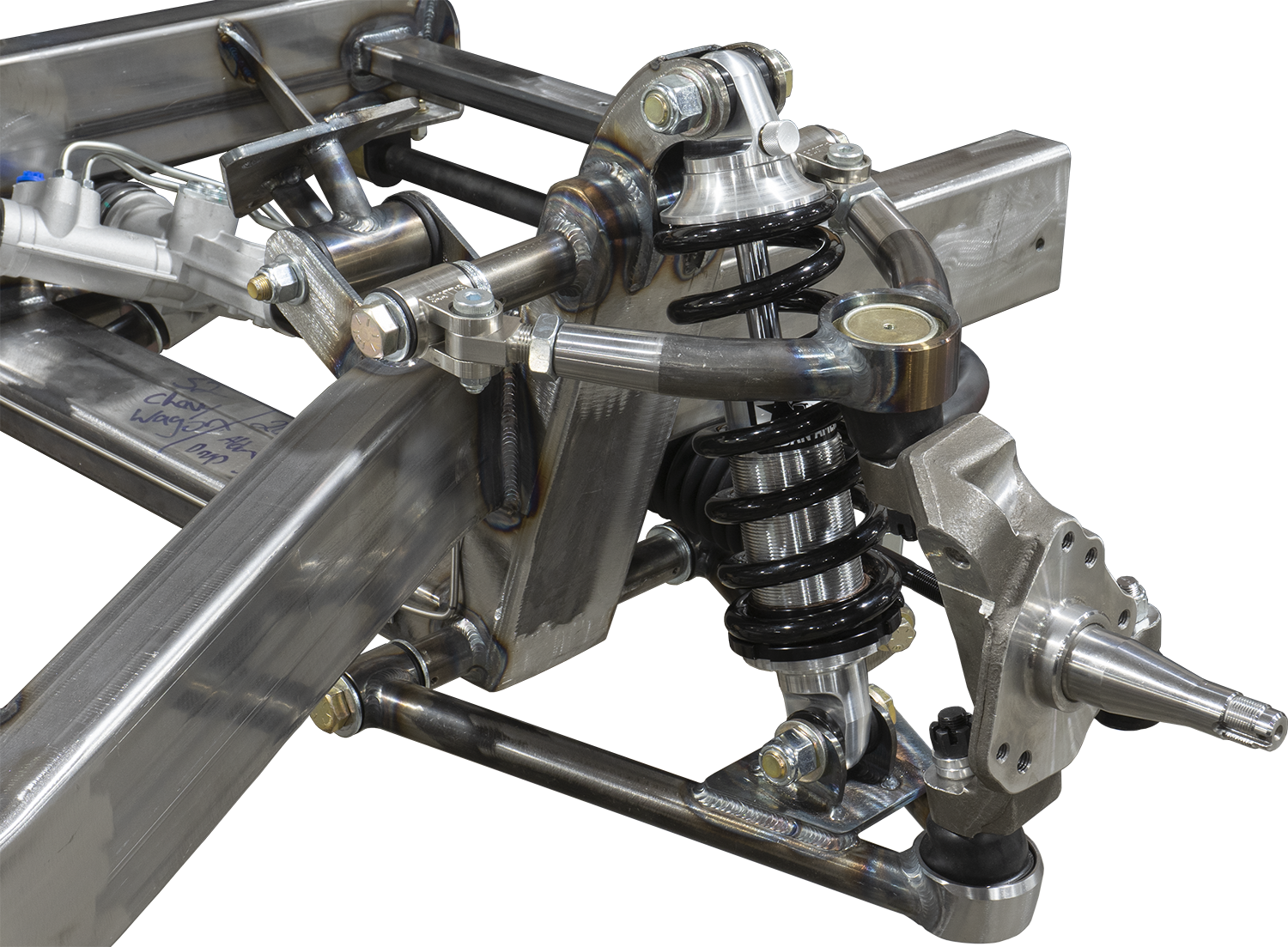

'48-'54 Chevrolet Car Coilover Chassis

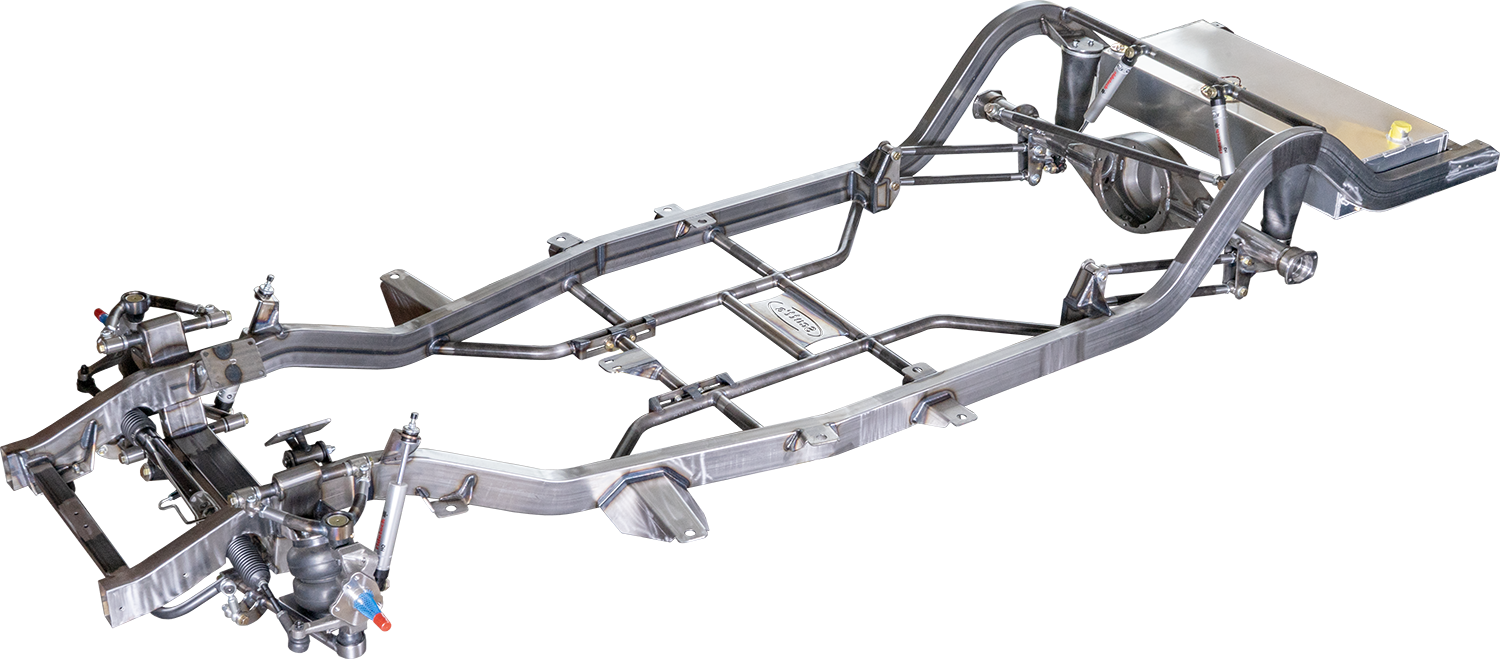

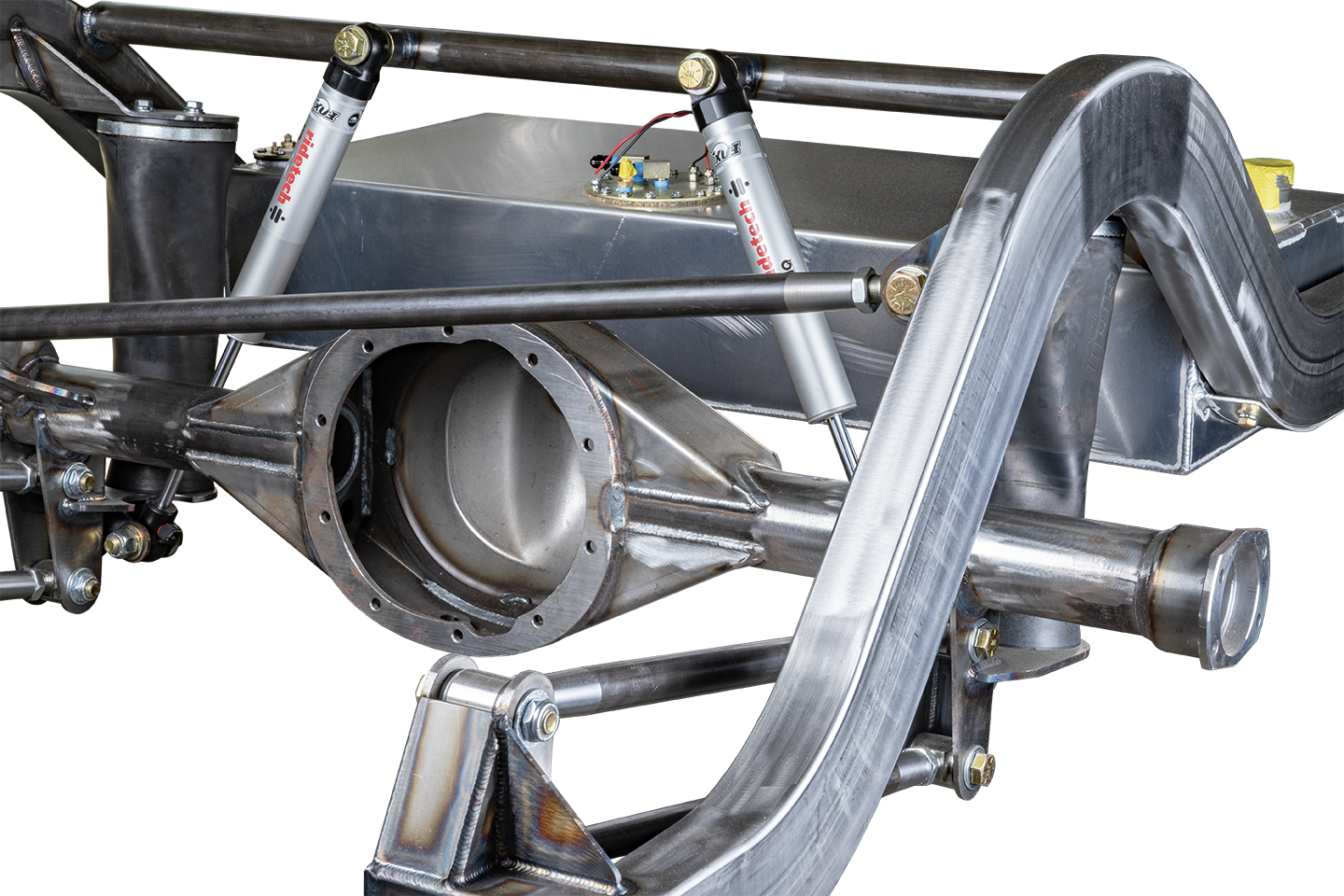

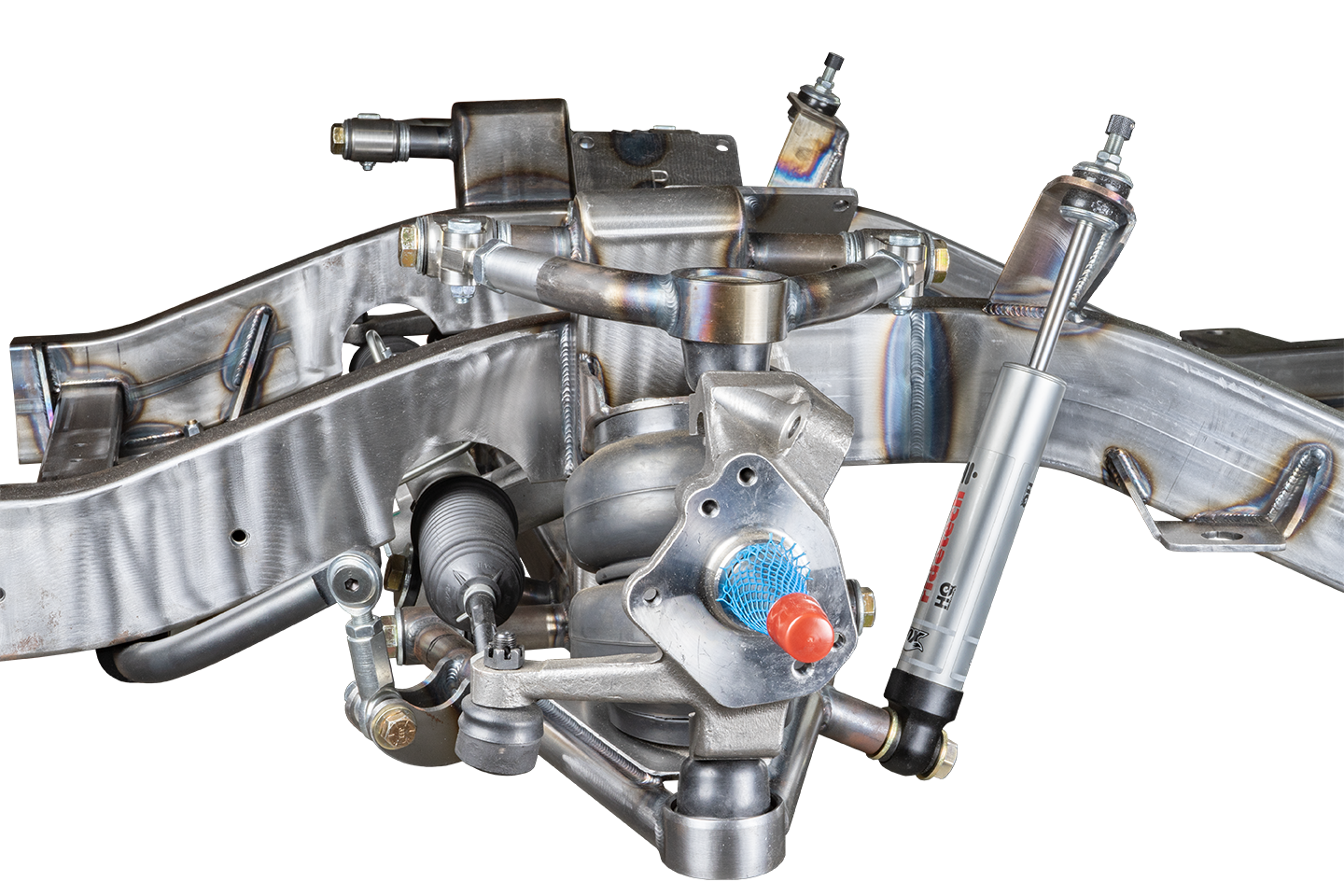

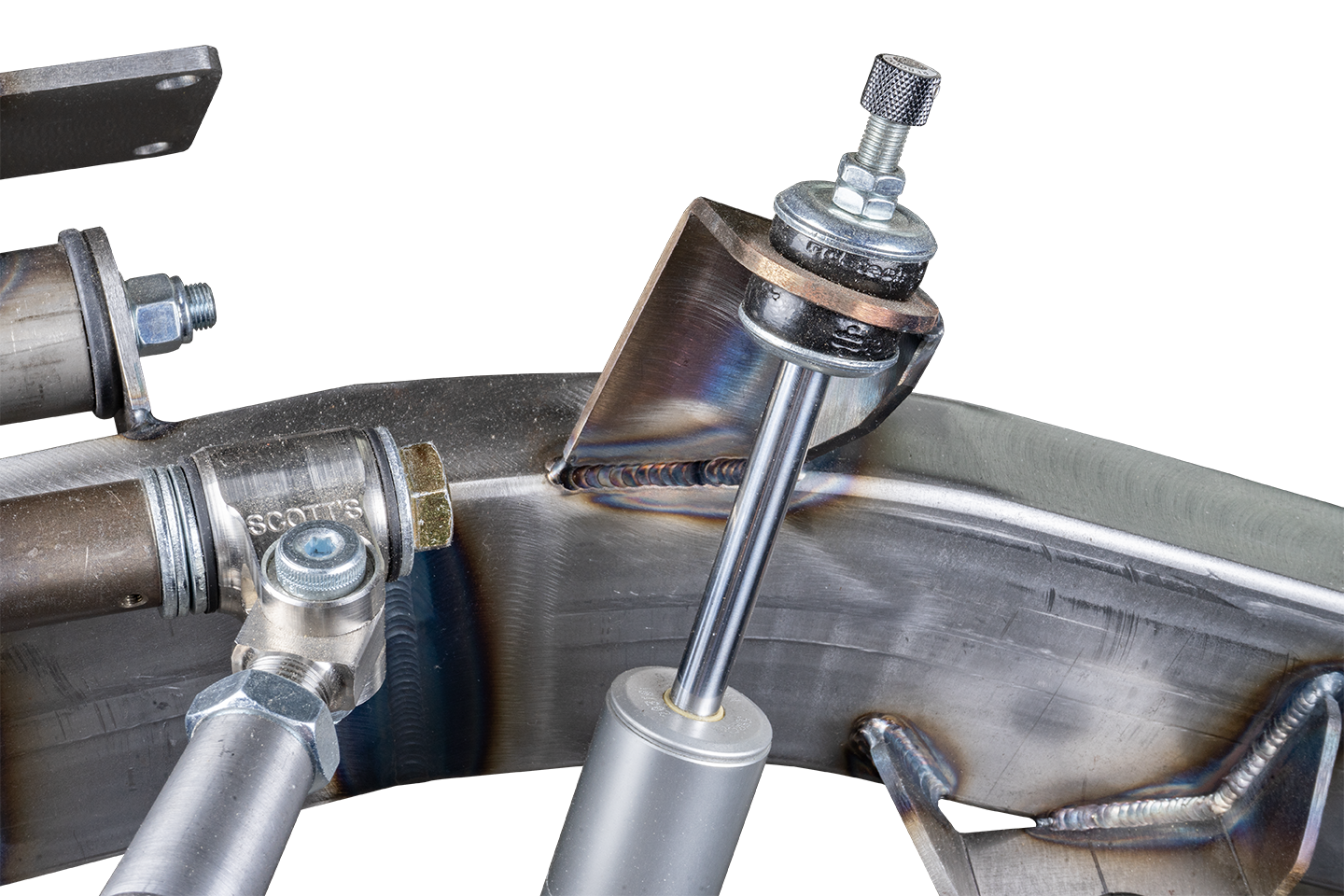

'48-'54 Chevrolet Car SuperSlam Chassis
Finish Your 1948-1954 Chevy with a
Chassis Built for the Car You’re Building
Your classic Chevrolet deserves more than a generic replacement frame. A Scott’s Hotrods 1948-1954 Chevy Car Chassis is Built-To-Order around your specific project, whether you’re building a comfortable street cruiser, modern restomod, aggressive ProTouring car or a slammed custom. From engine and transmission placement to track width, wheel and tire fitment, suspension configuration and desired ride height, every Scott’s Chevy chassis and custom frame is engineered around the finished car you have in mind.
With Scott’s proprietary independent front suspension, rack-and-pinion steering, heavy-duty tubular components, parallel 4-bar rear suspension and a Moser Ford 9-inch rear end, you get a completely modern foundation without sacrificing the character of your classic Chevrolet. Choose coilovers for responsive handling and performance or a SuperSlam airbag chassis for an ultra-low stance and adjustable ride height. Every chassis is handcrafted, 100% TIG-welded and manufactured in Knoxville, Tennessee using American-made materials.
Stop trying to make an old Chevrolet frame perform like a modern chassis. Start your 1948-1954 Chevy build with a Scott’s Hotrods chassis engineered to perform from the ground up.
Ready to build yours? Request a quote today and let Scott’s design a chassis specifically for your 1948-1954 Chevrolet.
