Built-to-Order Aluminum Fuel Tanks

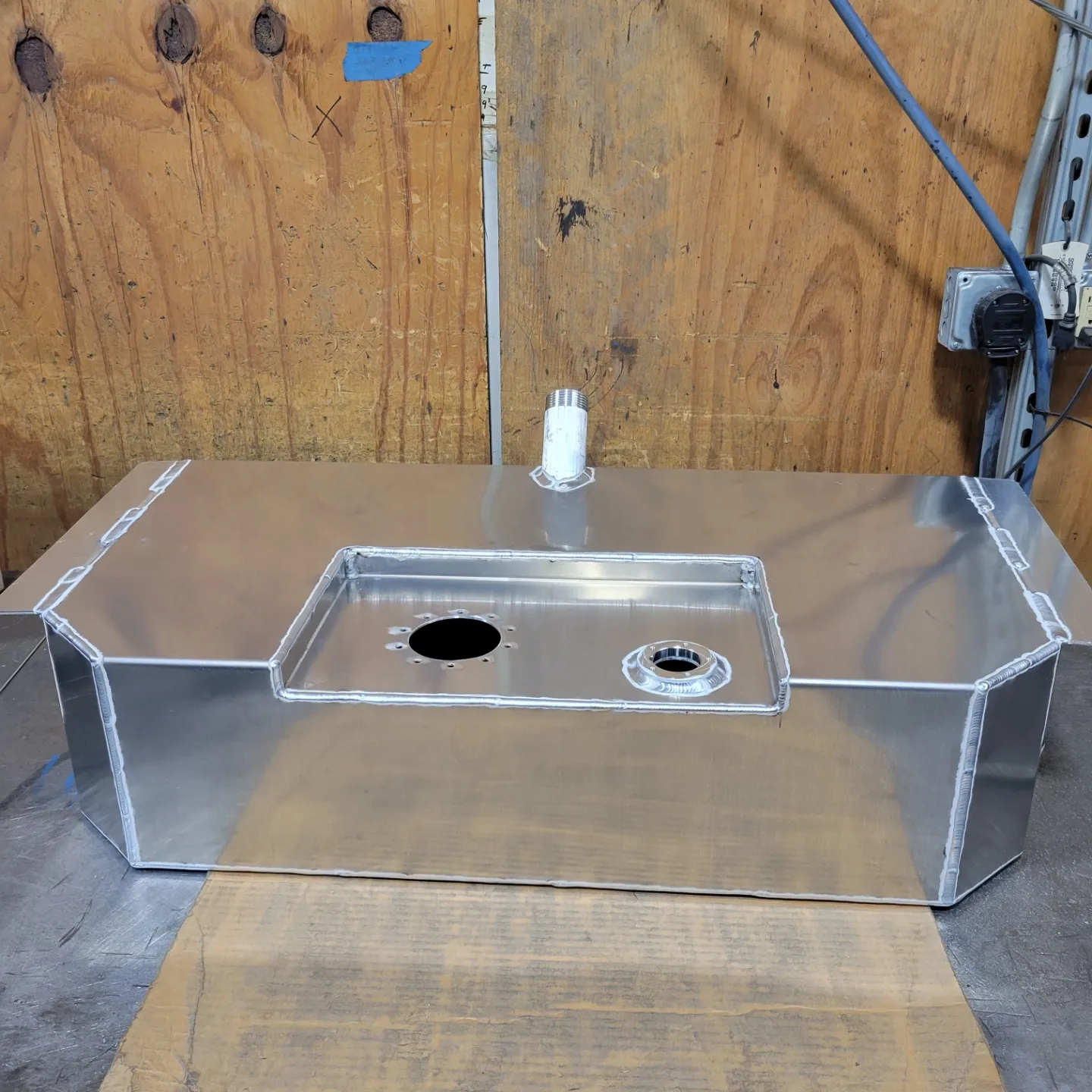

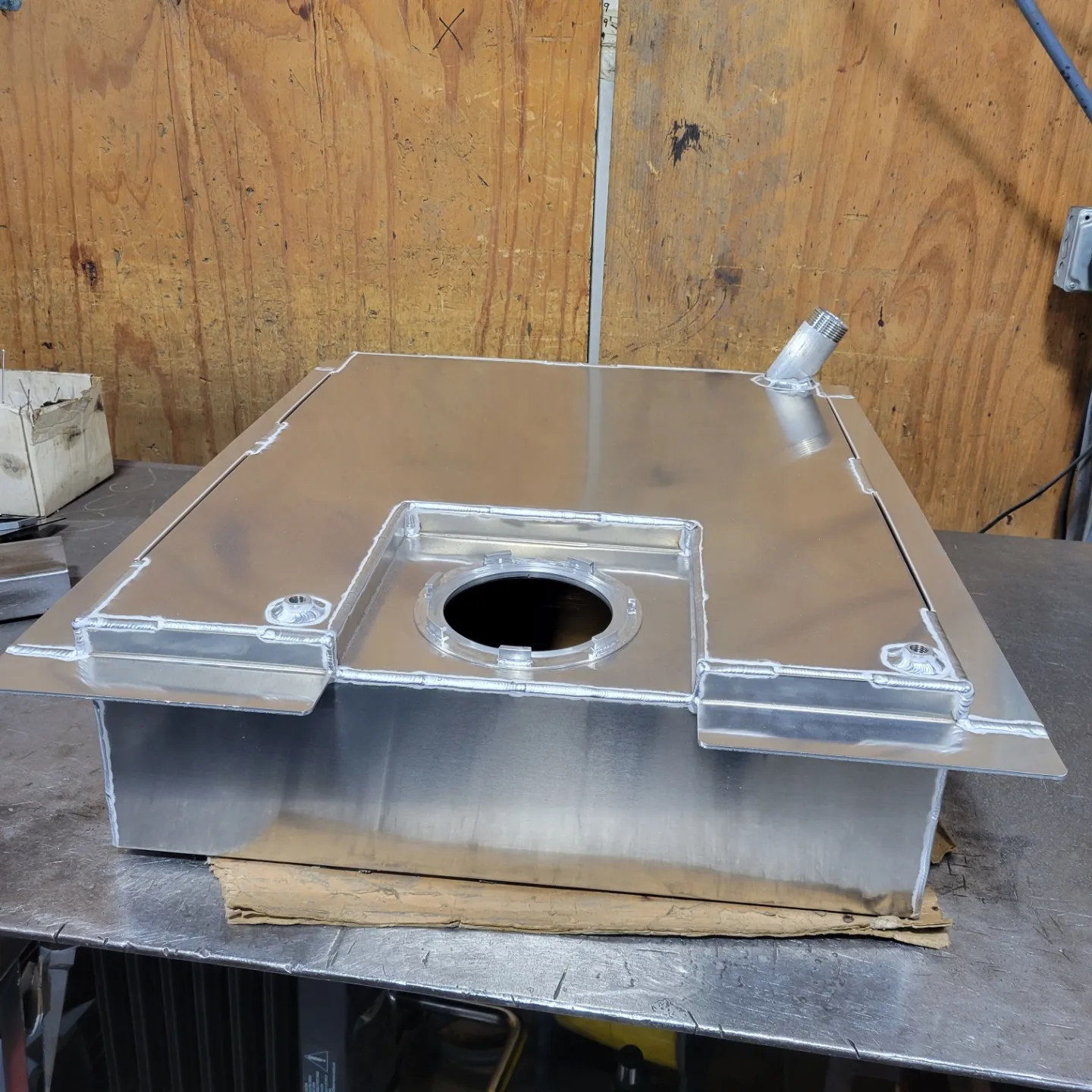

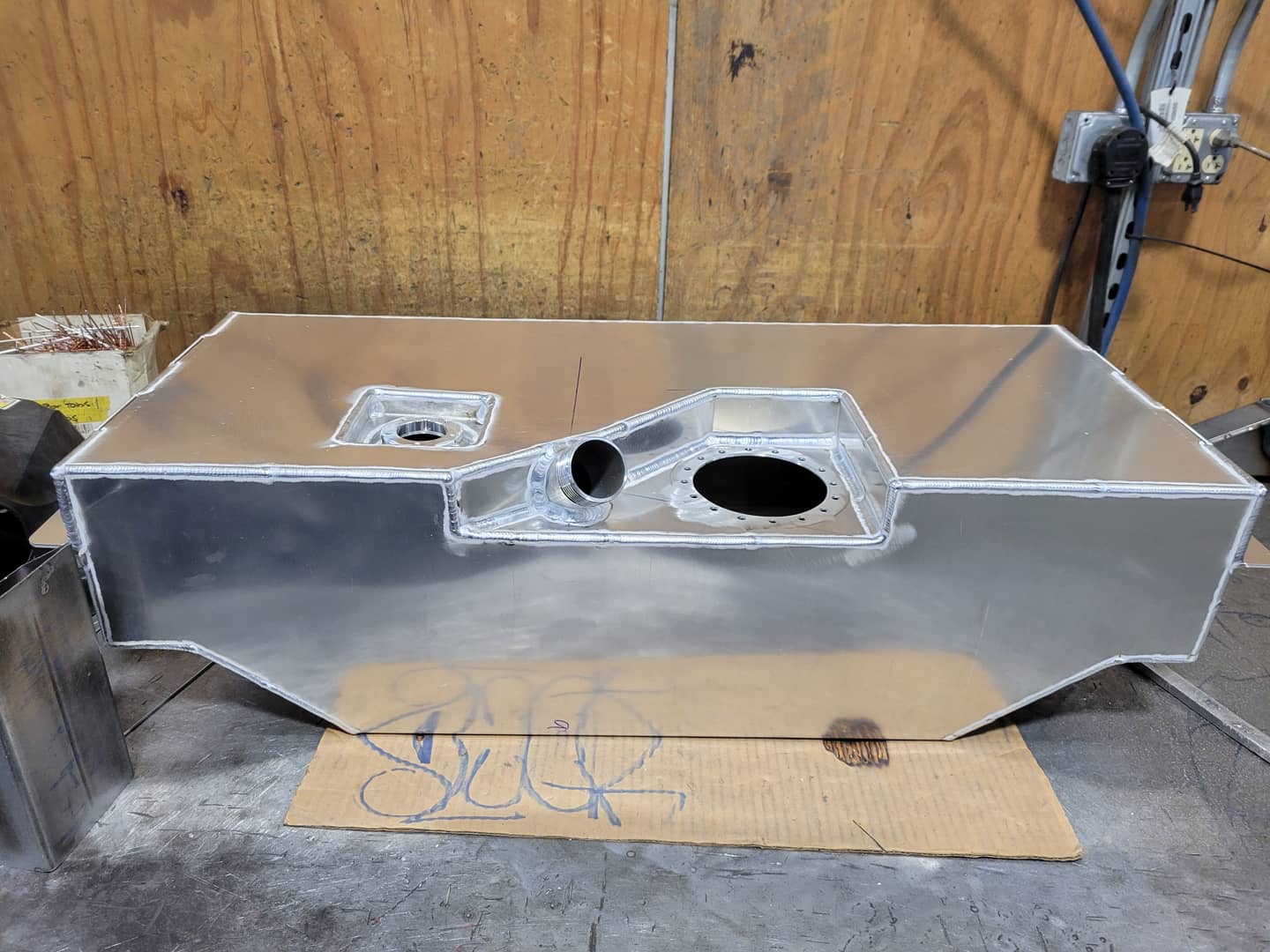

Scott’s Hotrods builds custom aluminum fuel tanks for classic cars, trucks, hot rods, restomods and custom vehicles. Every tank is built-to-order for the specific application, allowing the tank dimensions, filler location, fuel pickup, sending unit, mounting brackets and in-tank fuel pump to be configured around your vehicle and drivetrain.

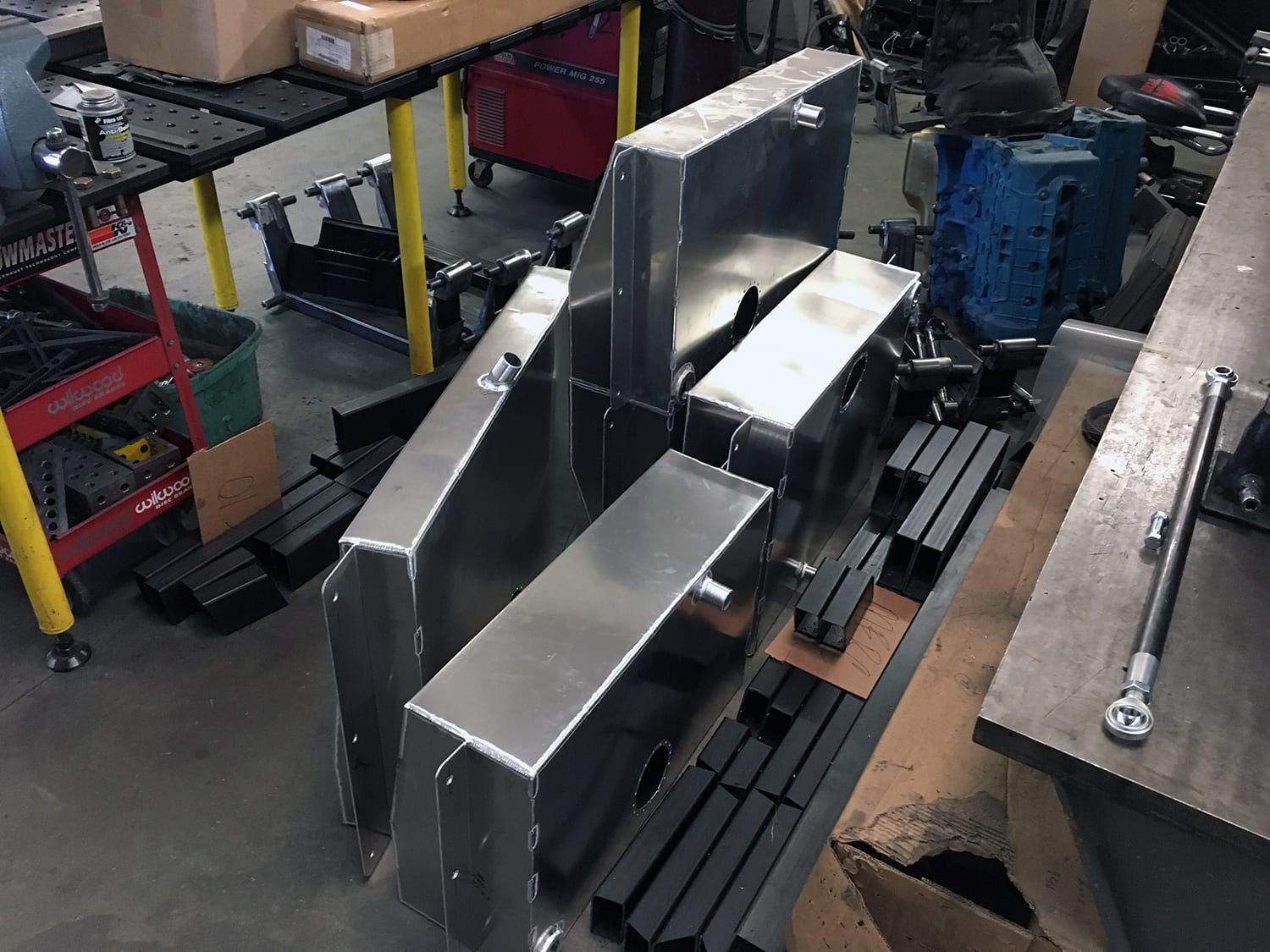

Each Scott’s fuel tank is fabricated from Series 3000 .120-wall aluminum, 100% TIG welded, fully baffled and individually pressure tested. Whether you’re building a carbureted cruiser or a high-horsepower EFI restomod, Scott’s can build the fuel system around your project.

Built Around Your Vehicle

We don’t build a one-size-fits-all universal fuel tank. Each tank is manufactured from dimensions supplied for your particular application.

Scott’s requires a detailed line drawing showing the dimensions and configuration of the tank you need. The drawing can be hand-drawn as long as the measurements and required features are clearly identified.

When ordering, we’ll need to know:

  • Overall tank dimensions and shape
  • Desired filler-neck location
  • Fuel sending unit requirements
  • In-tank fuel pump requirements and engine horsepower
  • Fuel pickup location

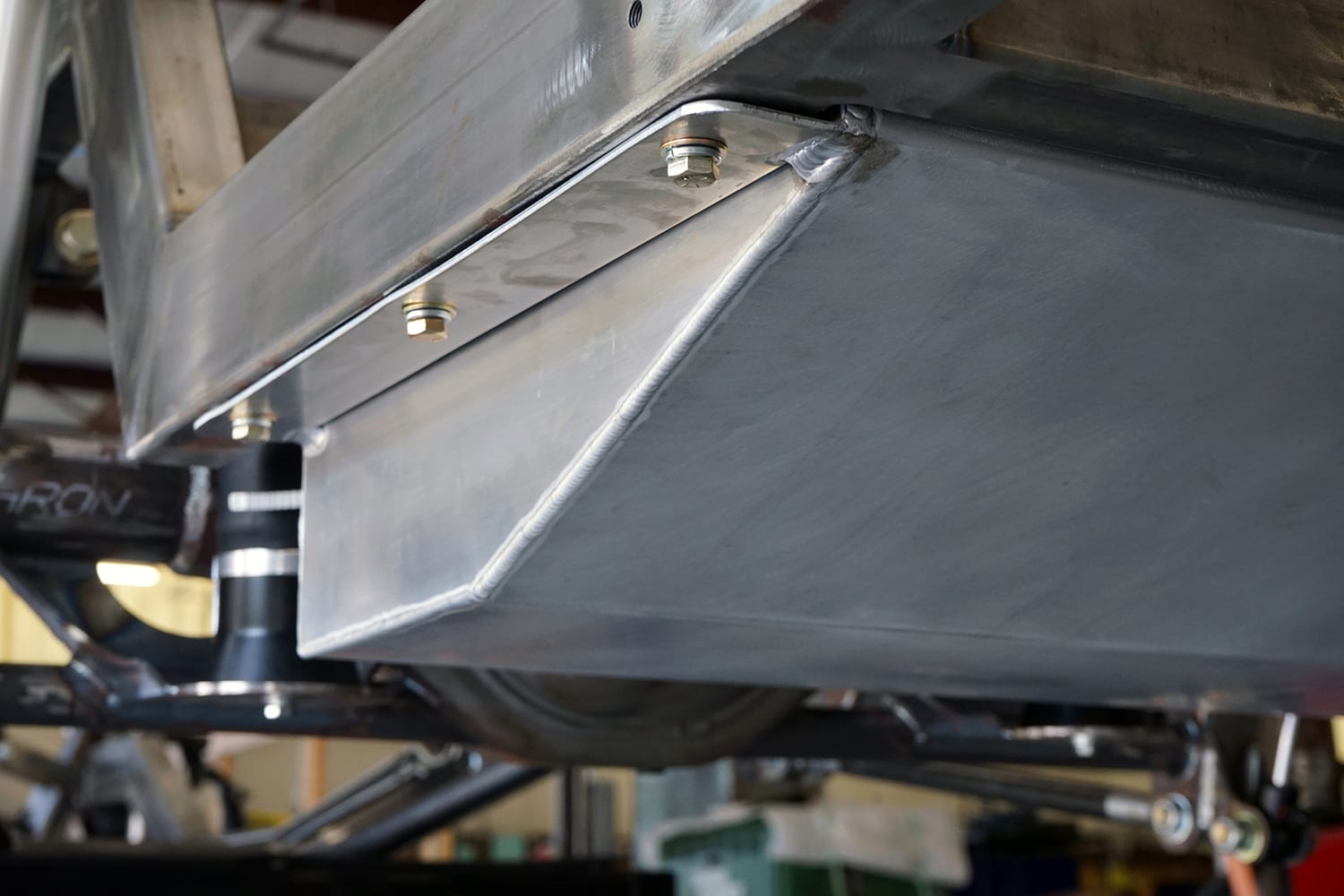

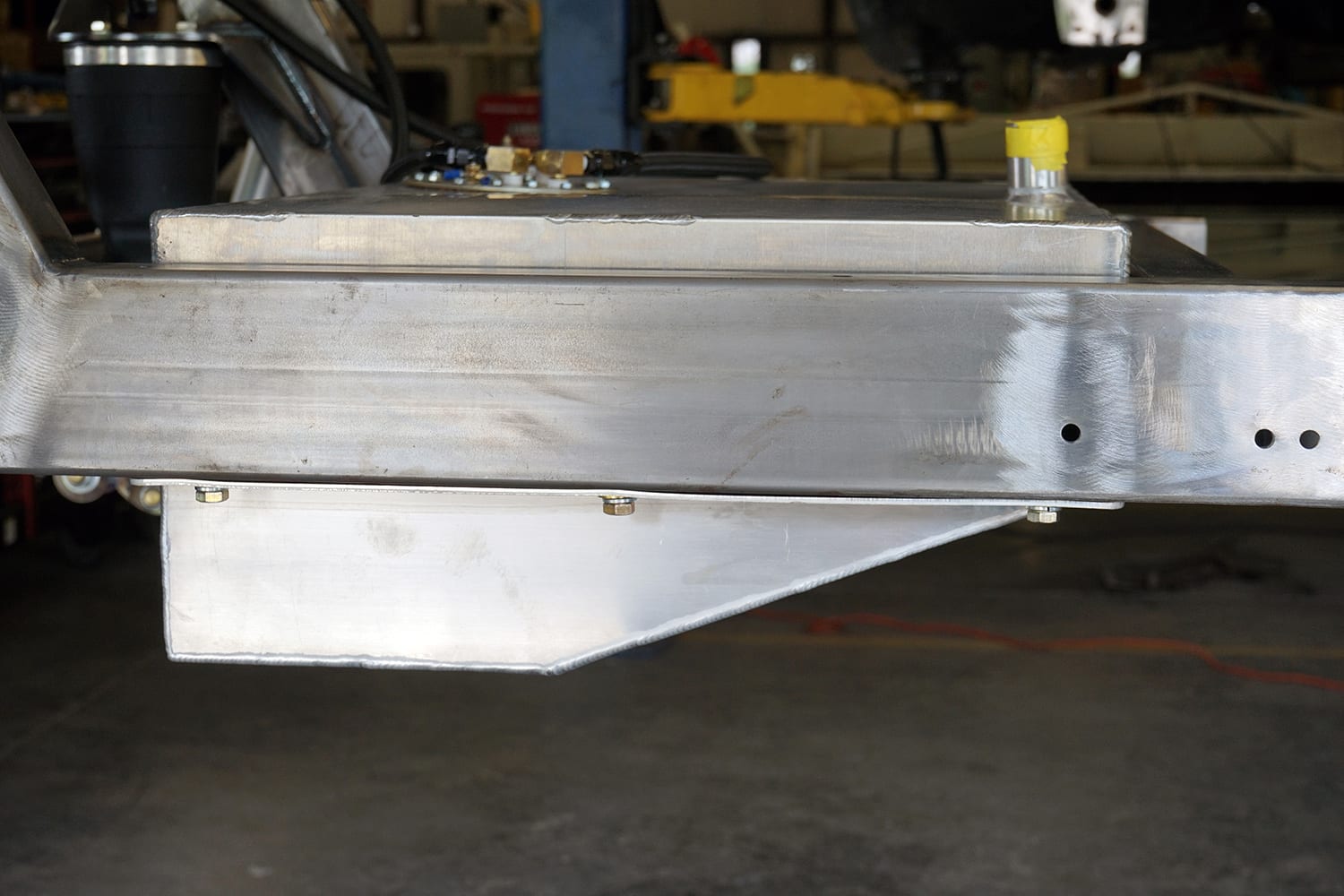

  • Mounting bracket requirements

Fully Baffled for Reliable Fuel Delivery

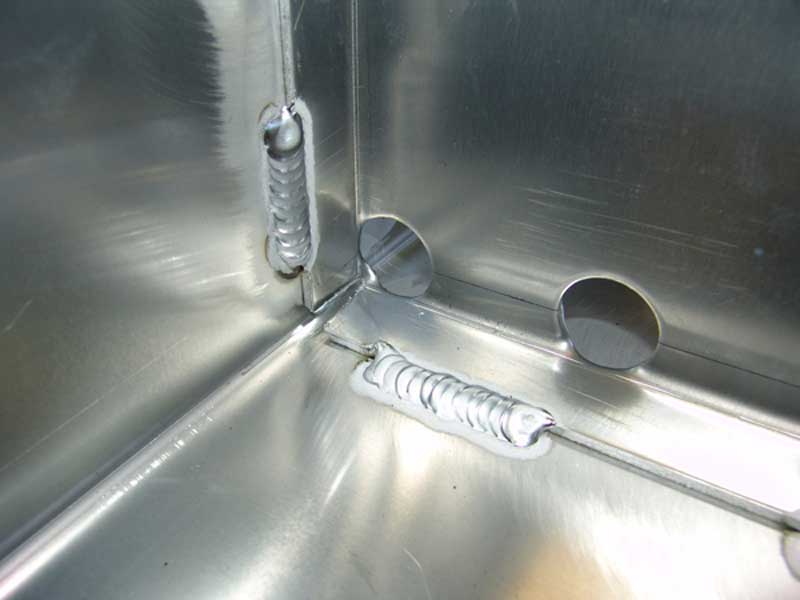

Every Scott’s Aluminum Fuel Tank is fully baffled to help control fuel movement inside the tank and reduce the possibility of fuel starvation at low fuel levels. This is especially important in performance vehicles where acceleration, braking and cornering can quickly move fuel away from the pickup.

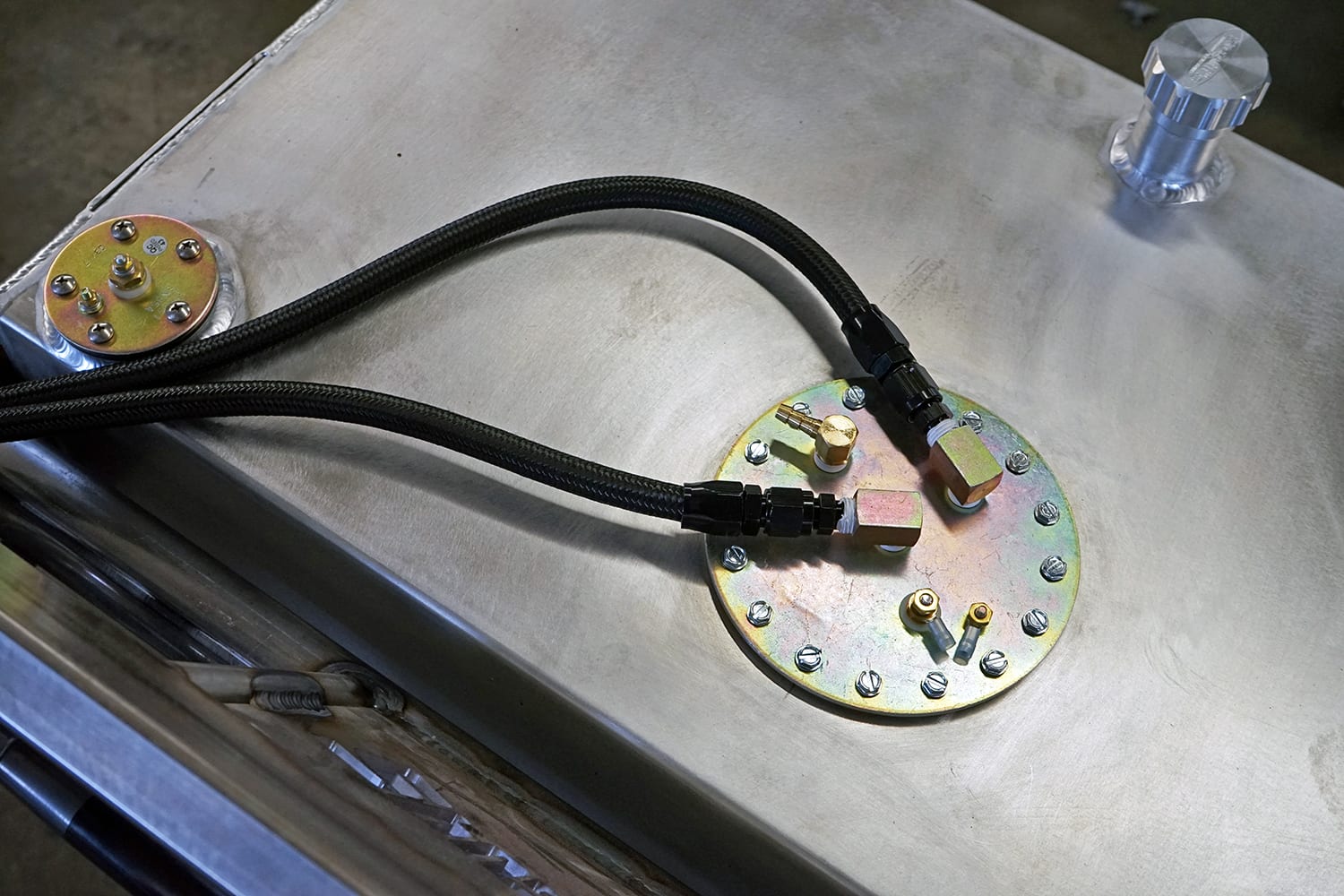

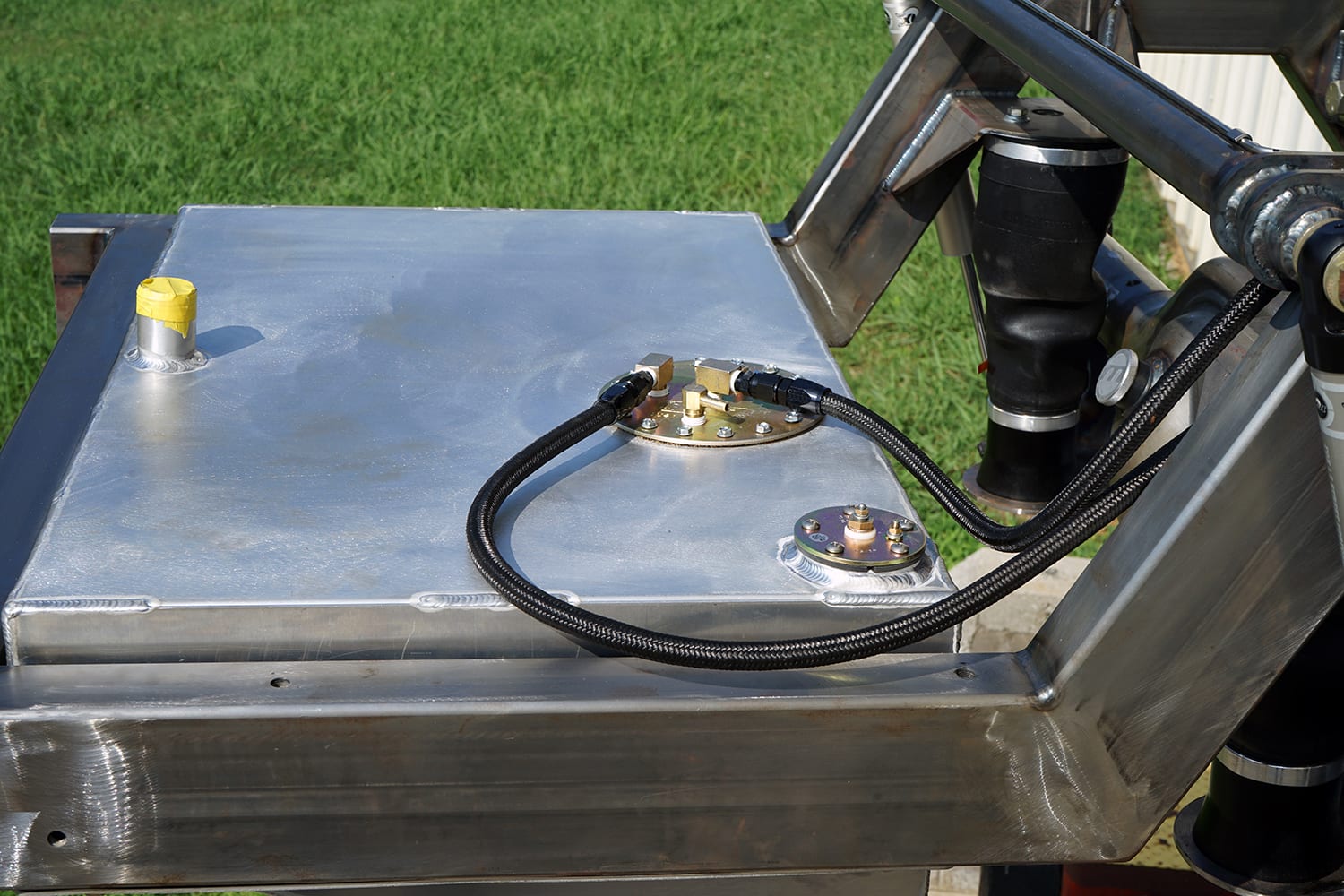

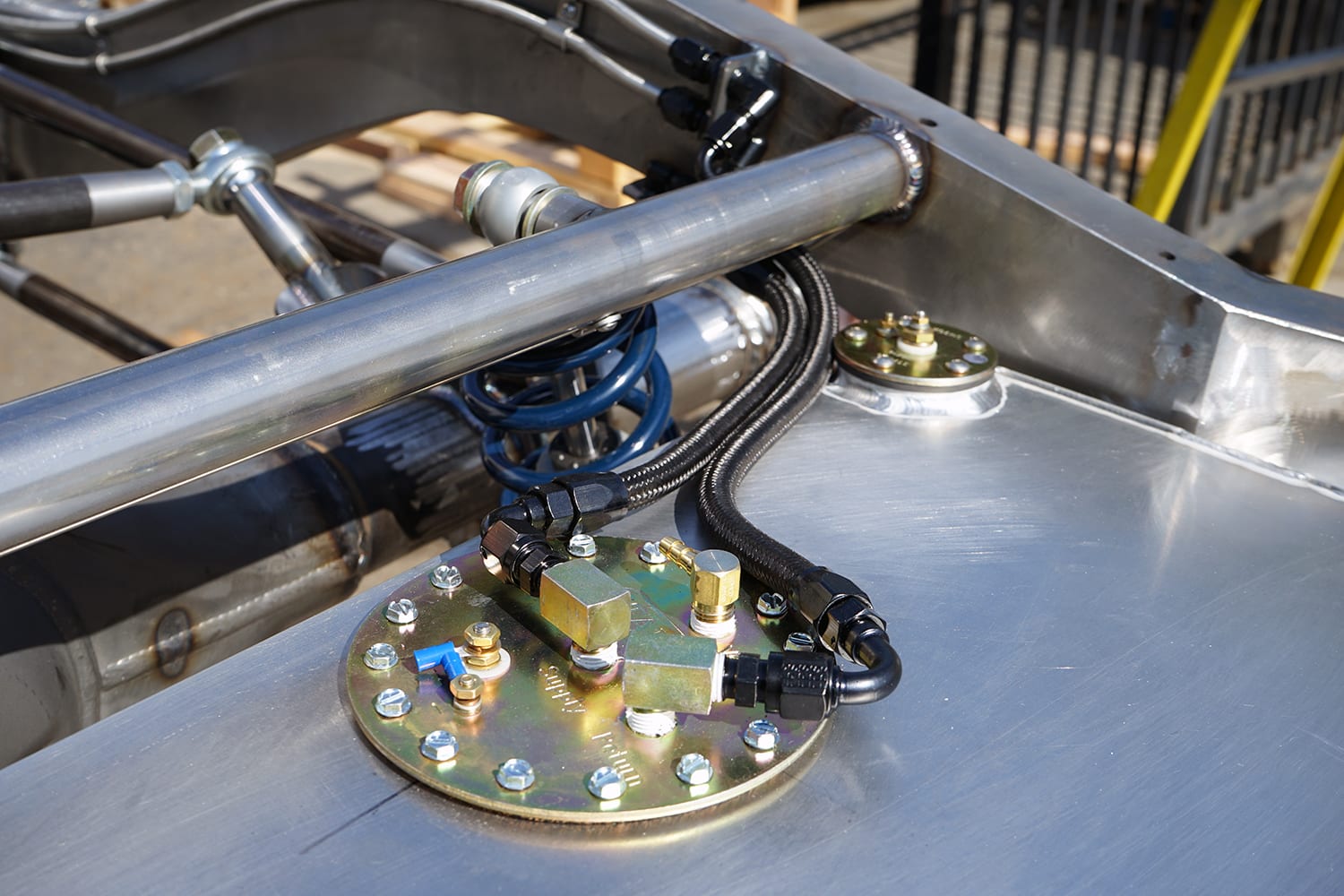

Available In-Tank Fuel Pumps

Scott’s offers several in-tank fuel pump options to match the horsepower requirements of your vehicle, ranging from the 340 LPH PA-5 through the 450 LPH PA-9. The current page lists naturally aspirated applications ranging up to approximately 1,050 horsepower, depending on pump selection.



Fuel Tanks Starting At $1,075

• Fuel Sending Unit (240-33 Ohm) $50
• PA-5 In-Tank Fuel Pump (340 LPH, Up to 800HP Naturally Aspirated) $376
• PA-6 In-Tank Fuel Pump (400 LPH, Up to 900HP NA) $406
• PA-8 In-Tank Fuel Pump (440 LPH, Up to 1,000HP NA) $436
• PA-9 In-Tank Fuel Pump (450 LPH, Up to 1,050HP NA) $466

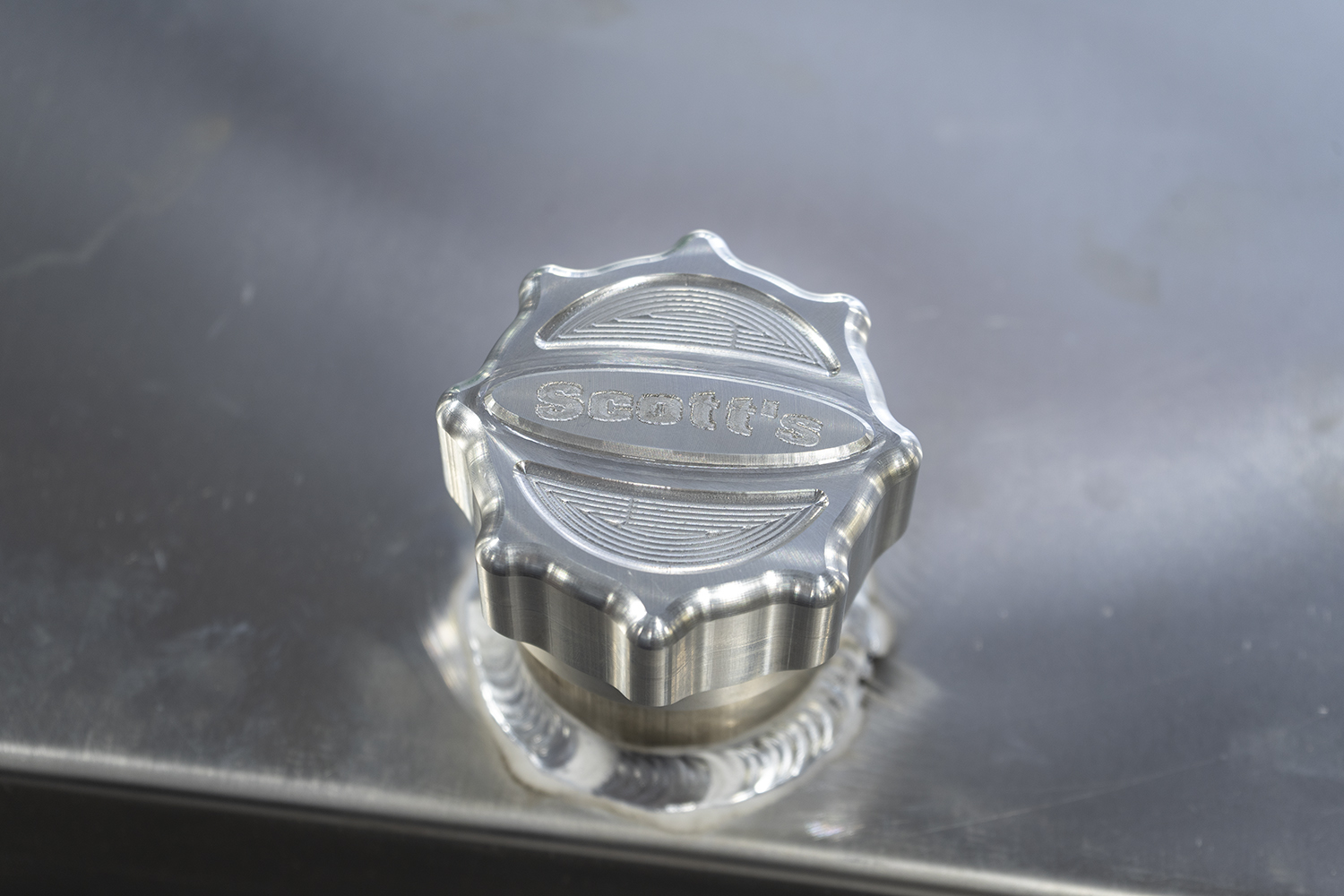

• Scott’s Fuel Cap $94



Standard Features

Construction: Series 3000 .120-Wall Aluminum

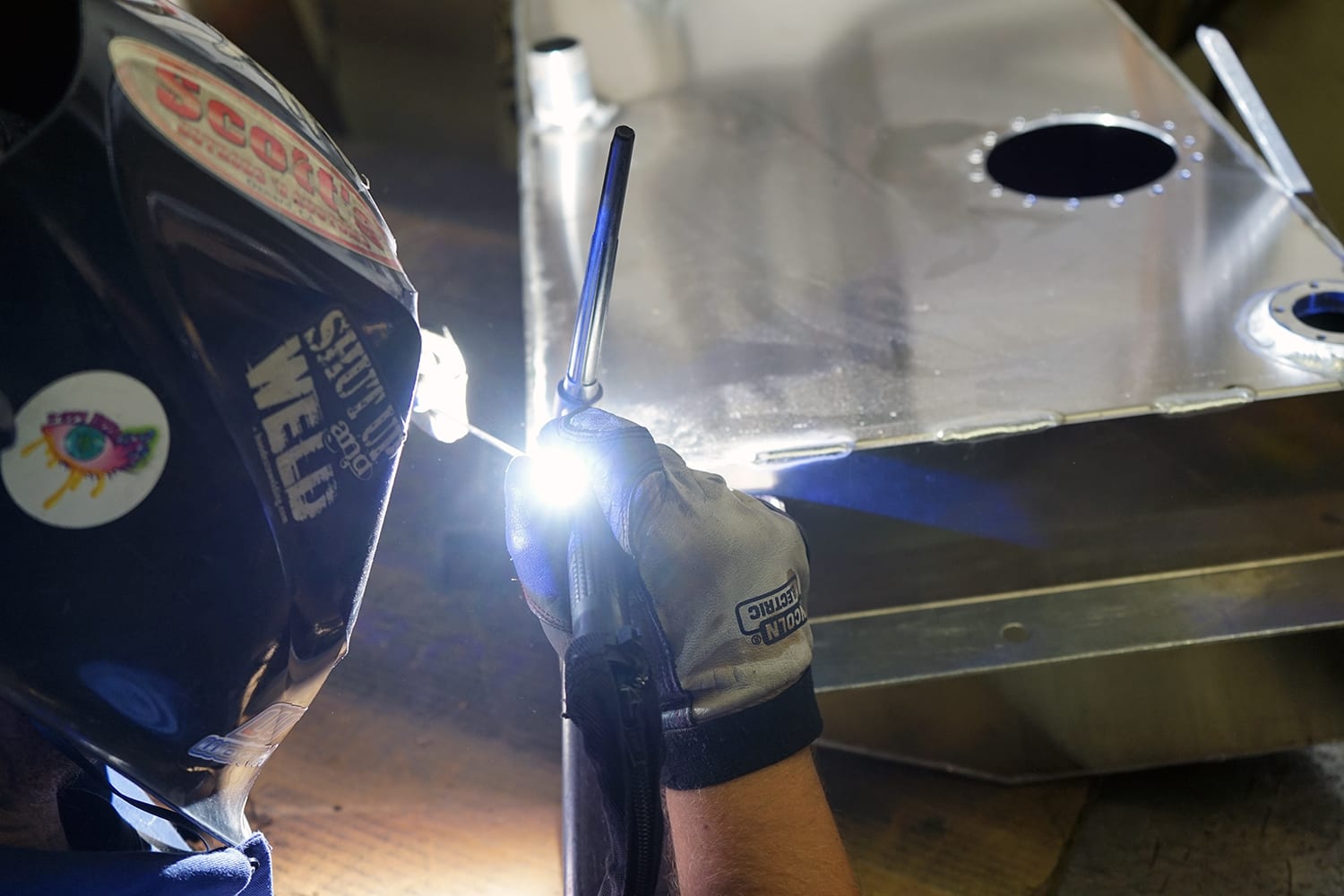

Welding: 100% TIG Welded
Internal Design: Fully Baffled
Testing: Individually Pressure Tested
Fuel Sender: Provision/Boss Included
Pickup Location: Customer Specified
Mounting: Mounting Tabs & Hardware Included
Filler Neck: 2″ Filler Neck with 8 TPI Threads
Manufacturing: Built-to-Order for Each Application



• 100% TIG Welded

• Fully baffled

• Individually pressure tested

• Boss for fuel sender

• Choice of pickup locations

• Mounting tabs and hardware

• Series 3000 .120-wall aluminum

• Fuel Sending Unit (240-33 Ohm) $50

• PA-5 In-Tank Fuel Pump (340 LPH, Up to 800HP) $376

• PA-6 In-Tank Fuel Pump (400 LPH, Up to 900HP) $406

• PA-8 In-Tank Fuel Pump (440 LPH, Up to 1,000HP) $436

• PA-9 In-Tank Fuel Pump (450 LPH, Up to 1,050HP) $576

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

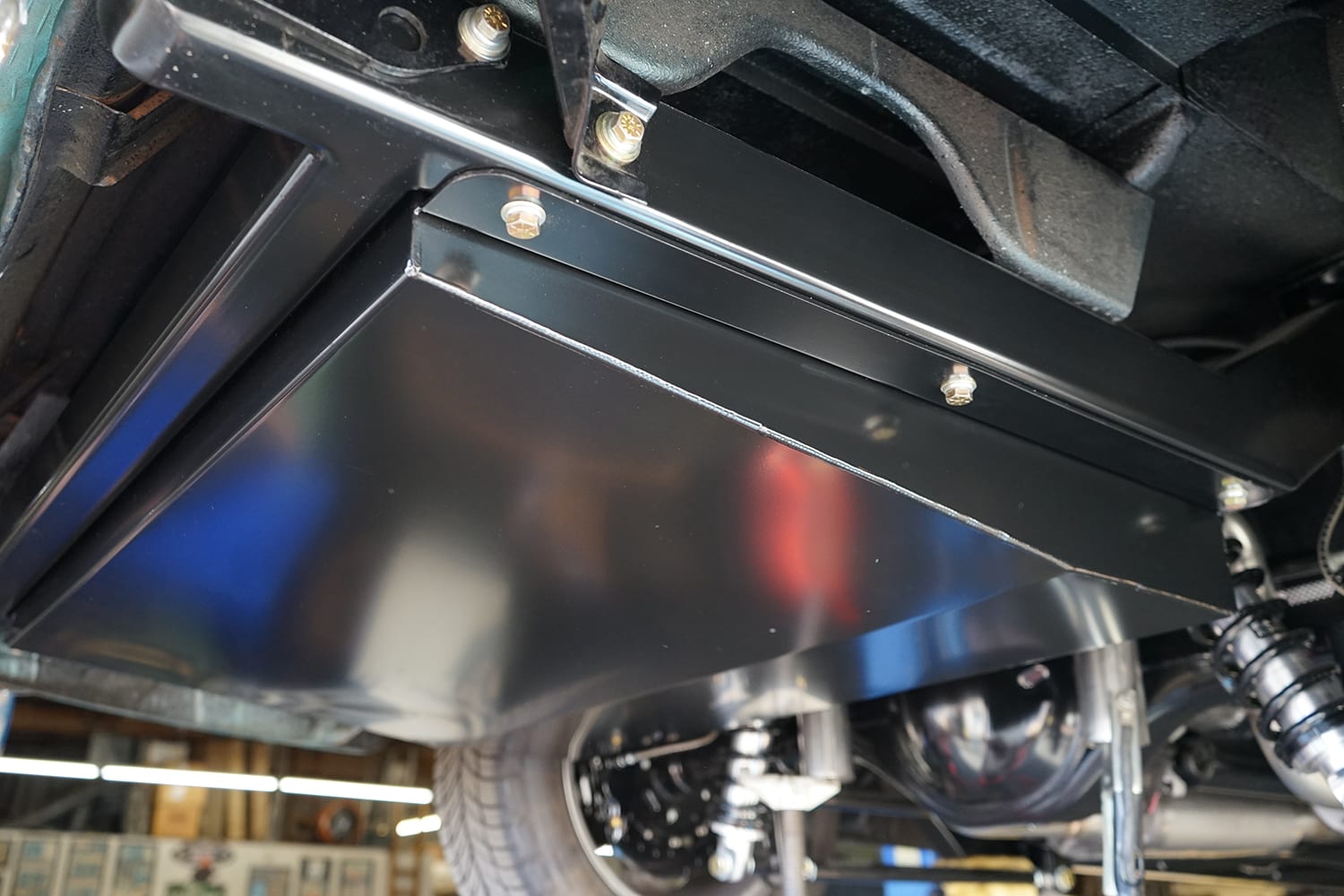

A Fuel Tank Built for Your Project

Your fuel tank shouldn’t be an afterthought—especially when you’re building a vehicle where space, horsepower and fuel-system requirements can be completely different from stock.

Scott’s Hotrods Custom Aluminum Fuel Tanks are built specifically around your vehicle using .120-wall aluminum, 100% TIG-welded construction, internal baffling and individually pressure-tested fabrication. From filler-neck placement and mounting locations to sending units and high-performance in-tank fuel pumps, we’ll build the tank around the needs of your classic car, truck, hot rod or restomod.
