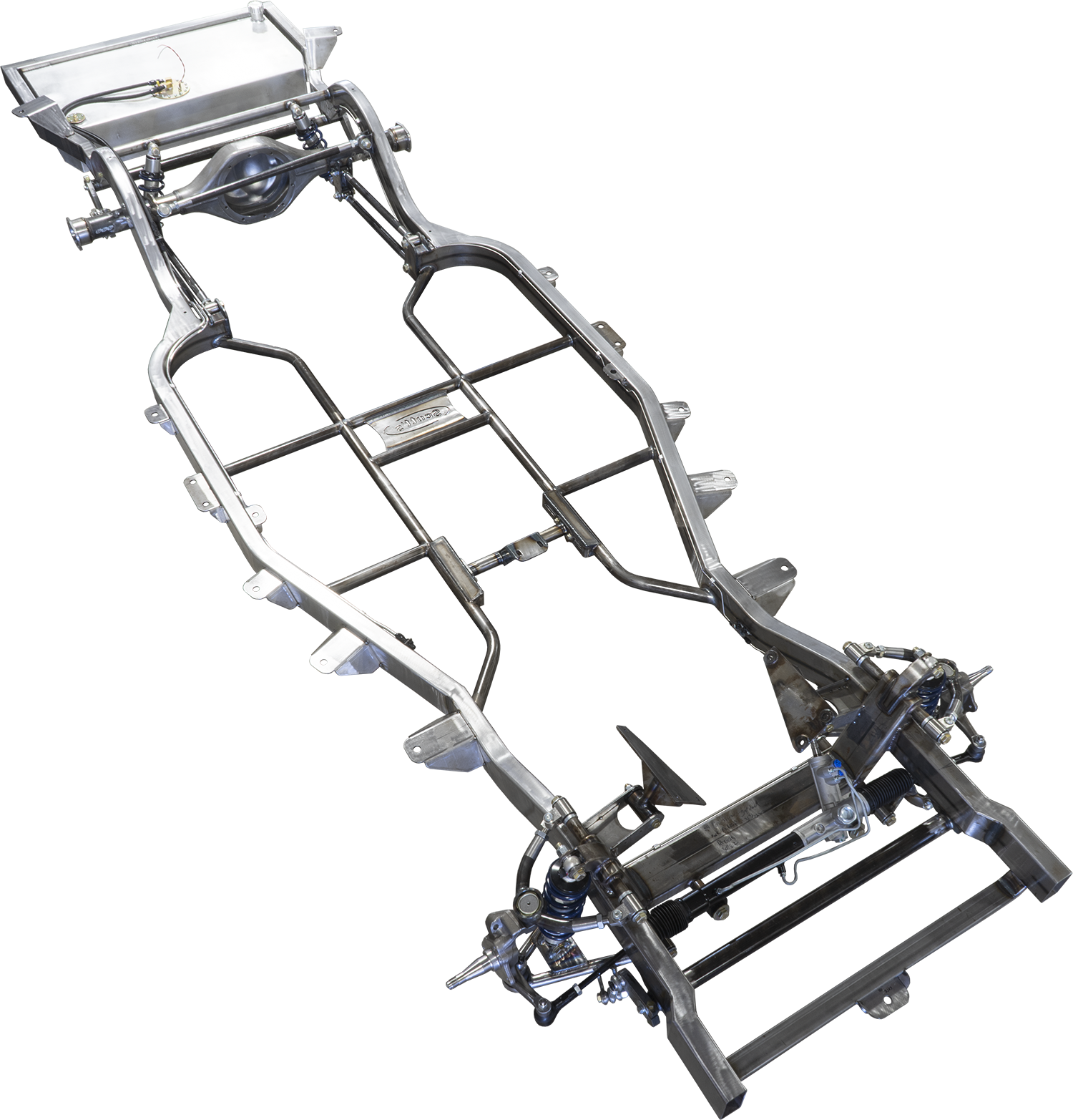

1957-1959 Ford Fairlane Chassis Overview

Scott’s Hotrods 1957-1959 Ford Fairlane Chassis replaces the original frame, steering and suspension with a completely modern, vehicle-specific performance foundation. Each chassis is built-to-order specifically for your Fairlane, allowing us to engineer the suspension, drivetrain placement, track width and ride height around your individual build rather than forcing your car to fit a universal chassis design.

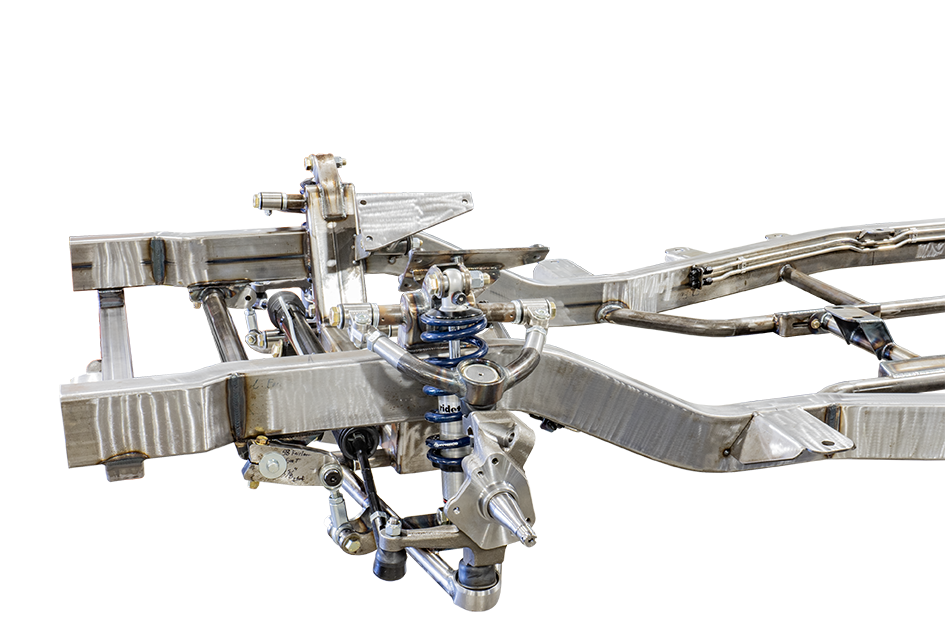

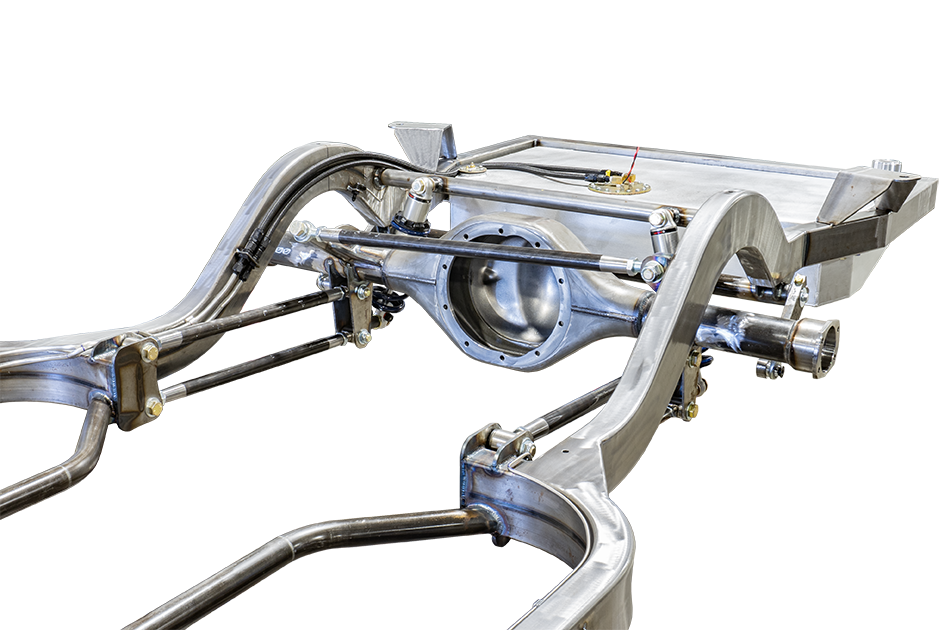

At the front, Scott’s proprietary Independent Front Suspension features a heavy-duty one-piece crossmember, massive 1-1/8″x.250-wall DOM Tubular Upper & Lower A-Arms, built-in anti-dive and rack & pinion steering. Out back, our proven equal-length Parallel 4-Bar suspension locates a Moser Ford 9-inch rear end using heavy-duty adjustable DOM link bars. Choose from premium Coilovers for performance-oriented handling or Scott’s SuperSlam Airbag suspension for an ultra-low, adjustable stance. The page’s current equipment list already backs up these construction details.

Whether you’re restoring a 1957 Ford Fairlane 500, building a Coyote-powered restomod, creating a high-horsepower Pro Touring car or taking a 1958 or 1959 Fairlane in a completely custom direction, Scott’s builds the chassis around your vision. No leaf springs. No drum brakes. No cookie-cutter chassis. Just modern suspension, modern steering and vehicle-specific engineering underneath one of Ford’s most iconic full-size classics.

Scott’s Coilover ’57-’59 Ford Fairlane Chassis Chassis – From $14,750
Scott’s SuperSlam ’57-’59 Ford Fairlane Chassis Chassis – From $15,650

*MORE PRICING INFORMATION IS IN THE NEXT TABS*

Building a Coyote-Swapped 1957-1959 Ford Fairlane?

Modern horsepower deserves a chassis engineered to handle it. Scott’s Hotrods can build your 1957-1959 Ford Fairlane Chassis around a modern 5.0L Coyote drivetrain, taking engine placement, transmission fitment, steering clearance, exhaust routing, suspension geometry and overall stance into consideration from the beginning. We also offer chassis configurations for traditional Ford power including Y-Block, Windsor, FE and 429/460 combinations, giving you the freedom to build your Fairlane traditional, modern or somewhere in between.

Scott’s knows firsthand what it takes to build a modernized Fairlane. Our chassis and engineering have already been put to work underneath a 700-horsepower Coyote-swapped 1957 Ford Fairlane 500, a build featured by Modern Rodding. Whether your goal is a refined restomod or serious modern performance, your chassis should be engineered around the horsepower you intend to put through it—not become the limiting factor later.

Want Your 1957-1959 Fairlane to Lay Frame?

Scott’s Hotrods SuperSlam Fairlane Chassis is engineered from the beginning specifically for air suspension, giving your classic Ford an ultra-low stance without treating airbags as an afterthought. The SuperSlam combines Scott’s proprietary IFS and equal-length Parallel 4-Bar rear suspension with Slam Specialties airbags and external shocks, providing adjustable ride height, extensive suspension travel and the ability to put your Fairlane down on the ground when parked.

Whether you’re building a bagged 1957 Fairlane 500, Coyote-powered restomod, custom cruiser or show-stopping ’58 or ’59 Fairlane, the SuperSlam chassis gives you the dramatic stance you want while retaining properly engineered suspension geometry and a chassis designed to actually be driven. Air it out for the show. Raise it to driving height. Hit the road.

SCOTT’S CHASSIS FEATURES

• Mandrel Bent 2”x4”x.120-wall tube frame rails
• 8-Point 1-1/2” DOM tubular Chassis Crossmember
• 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
• 100% TIG-welded
• Scott’s IFS
• Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
• Built-in Anti-Dive
• Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
• Oversized, Serviceable Press-In Ball Joints
• Standard or Drop Forged Steel Spindles
• Aldan American Single-Adjustable Coilovers or Airbags & Shocks
• Manual Steering Rack & Pinion

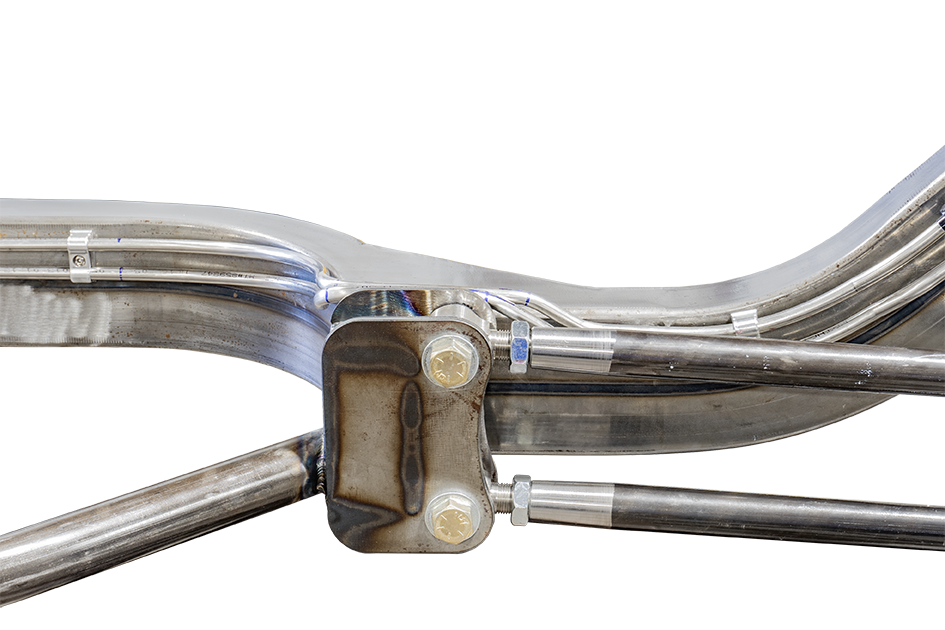

• Scott’s 4-Bar
• 1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
• Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
• 1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
• FK Bearing Heim Joints – RH- & LH-Thread
• Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
• Body Mounts
• All Grade-8 Hardware
• LIFETIME GUARANTEE

Scott's Hotrods Chassis Pricing 2026

*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.

Scott’s FAQs

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

Ford Rear Sump Oil Pan – SBF 302W M-6675-A50
Ford Rear Sump Oil Pan – SBF 351W M-6675-A58
Ford Rear Sump Oil Pan – SBF 351C CTR-15-720

GM Performance Parts LS Engine Oil Pan 12628771
Holley LS Swap Pan Holley 302-2

Borgeson Steering Linkage Kit

Scott’s Hotrods Power Steering Line Kit

Scott’s Hotrods Hot Rod Gas Pedal

Scott’s Hotrods Exhaust Hangers
