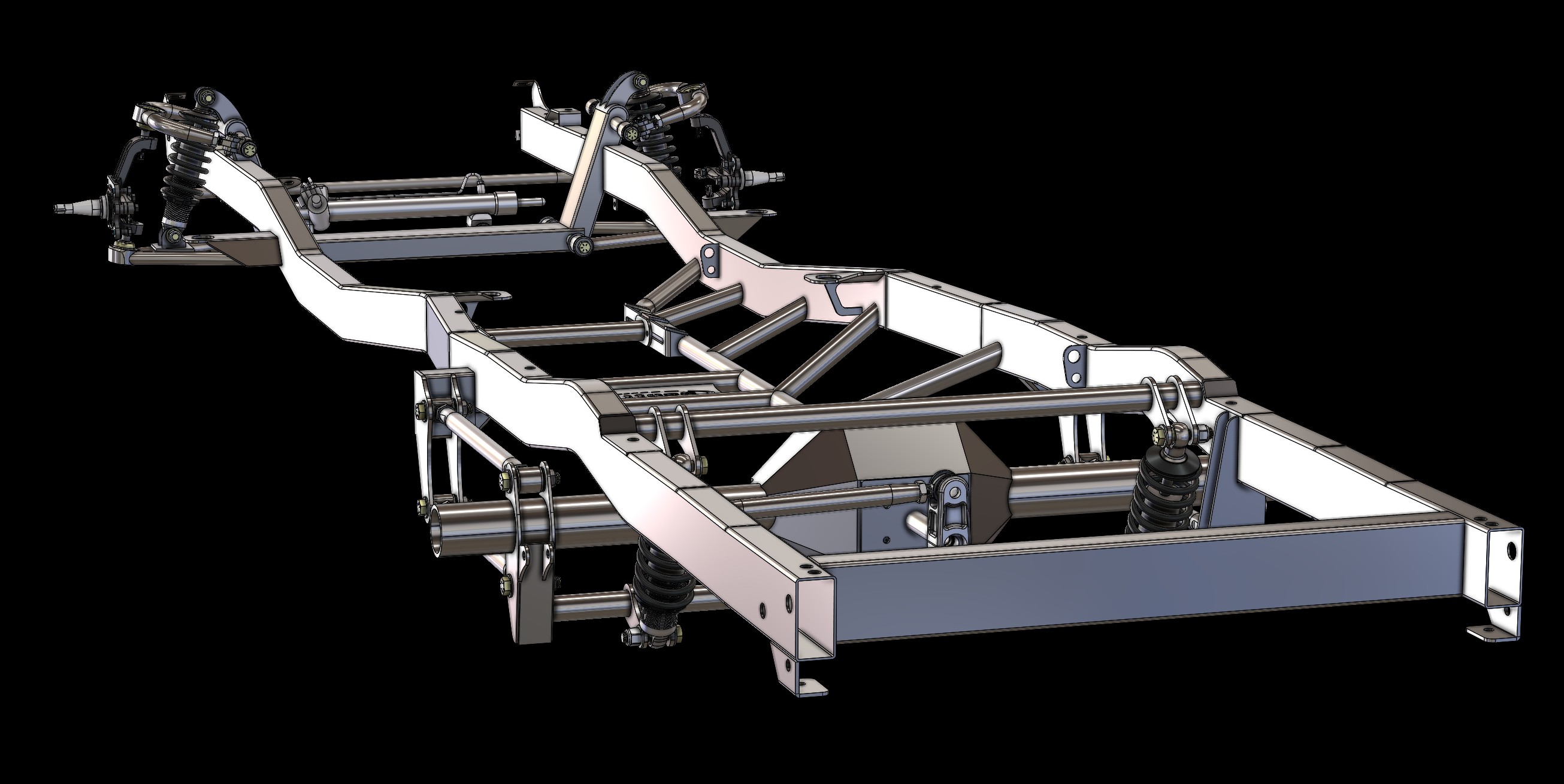

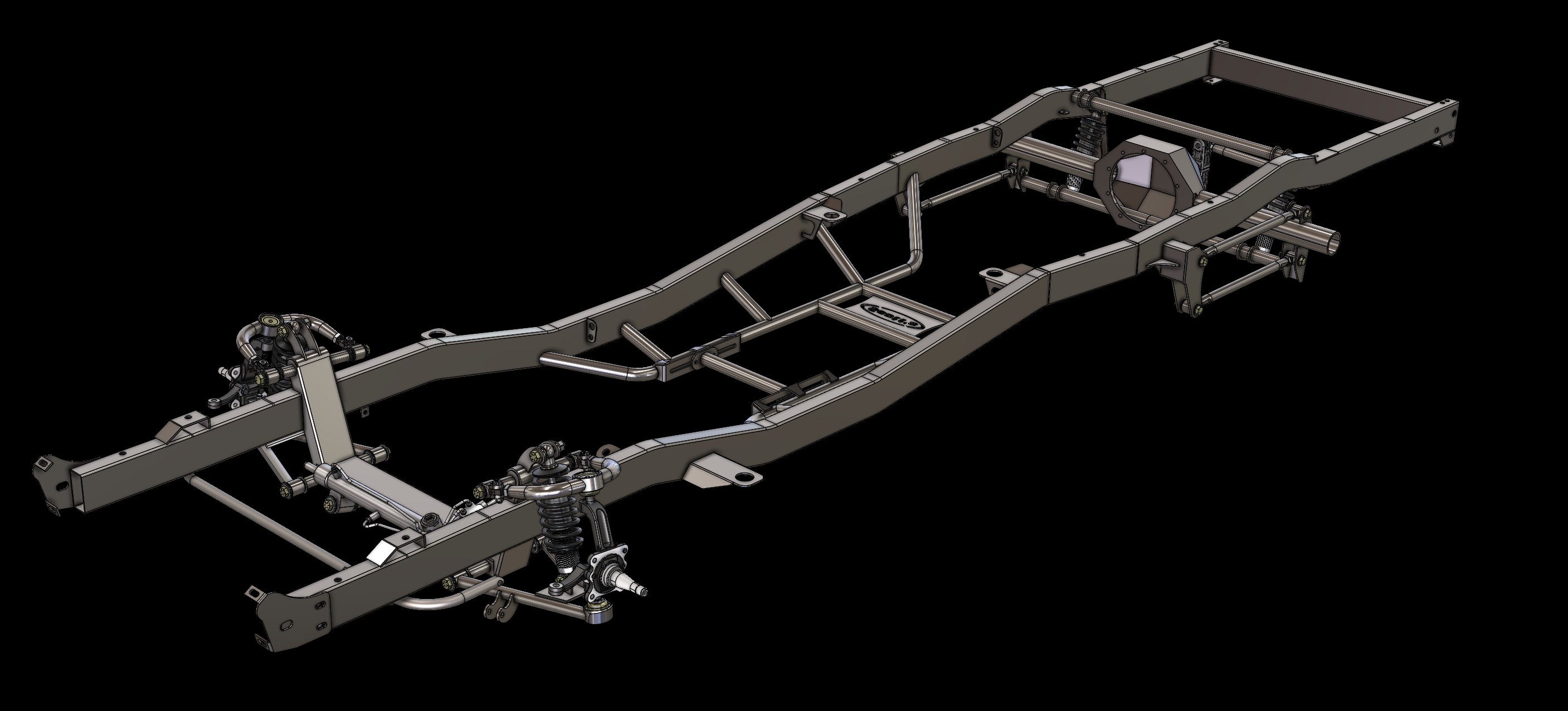

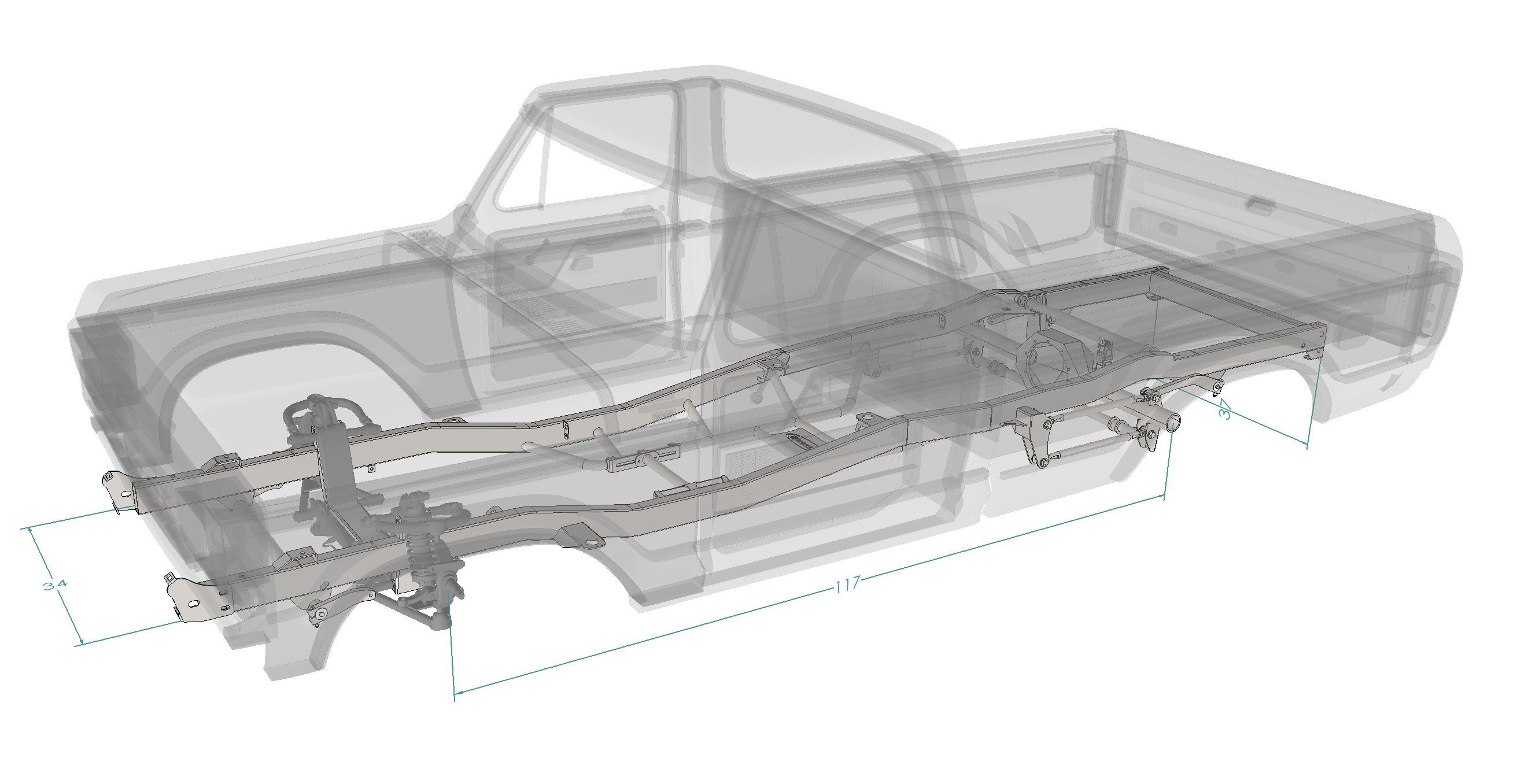

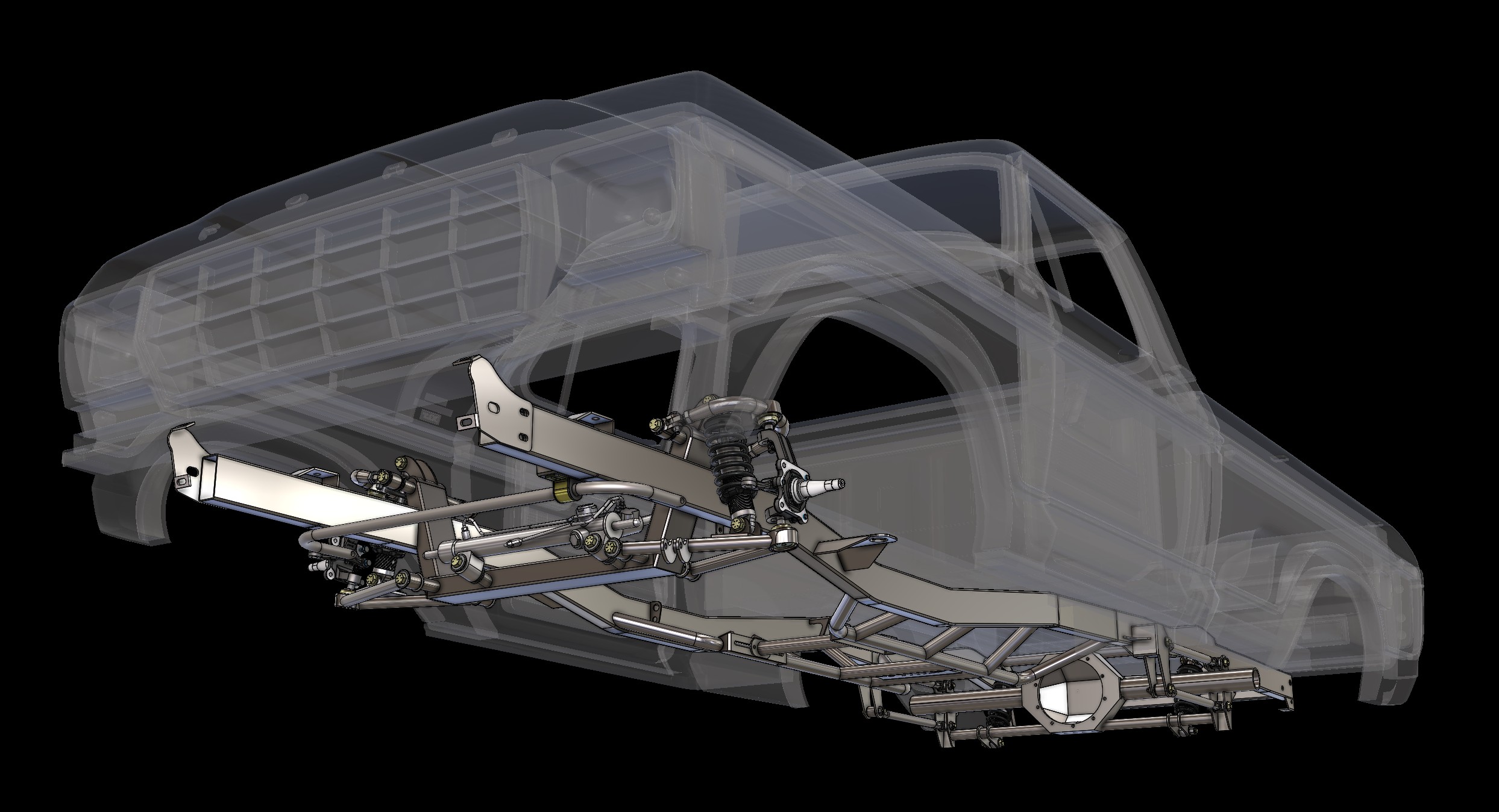

Your 1973-1979 Ford F100 Dentside deserves more than a refurbished factory frame or a generic aftermarket chassis. Every Scott’s Hotrods chassis is engineered from the ground up specifically for your truck, delivering modern performance, exceptional strength, and the flexibility to build everything from a reliable weekend cruiser to an award-winning Pro Touring show truck.
Unlike mass-produced chassis, every Scott’s chassis is Built-to-Order around your exact vehicle, engine, transmission, suspension, and ride height preferences. Whether you’re planning a Coyote, Godzilla, Windsor, LS, LT, Hemi, or another drivetrain combination, your chassis is built specifically for your project—not forced to fit a one-size-fits-all design.

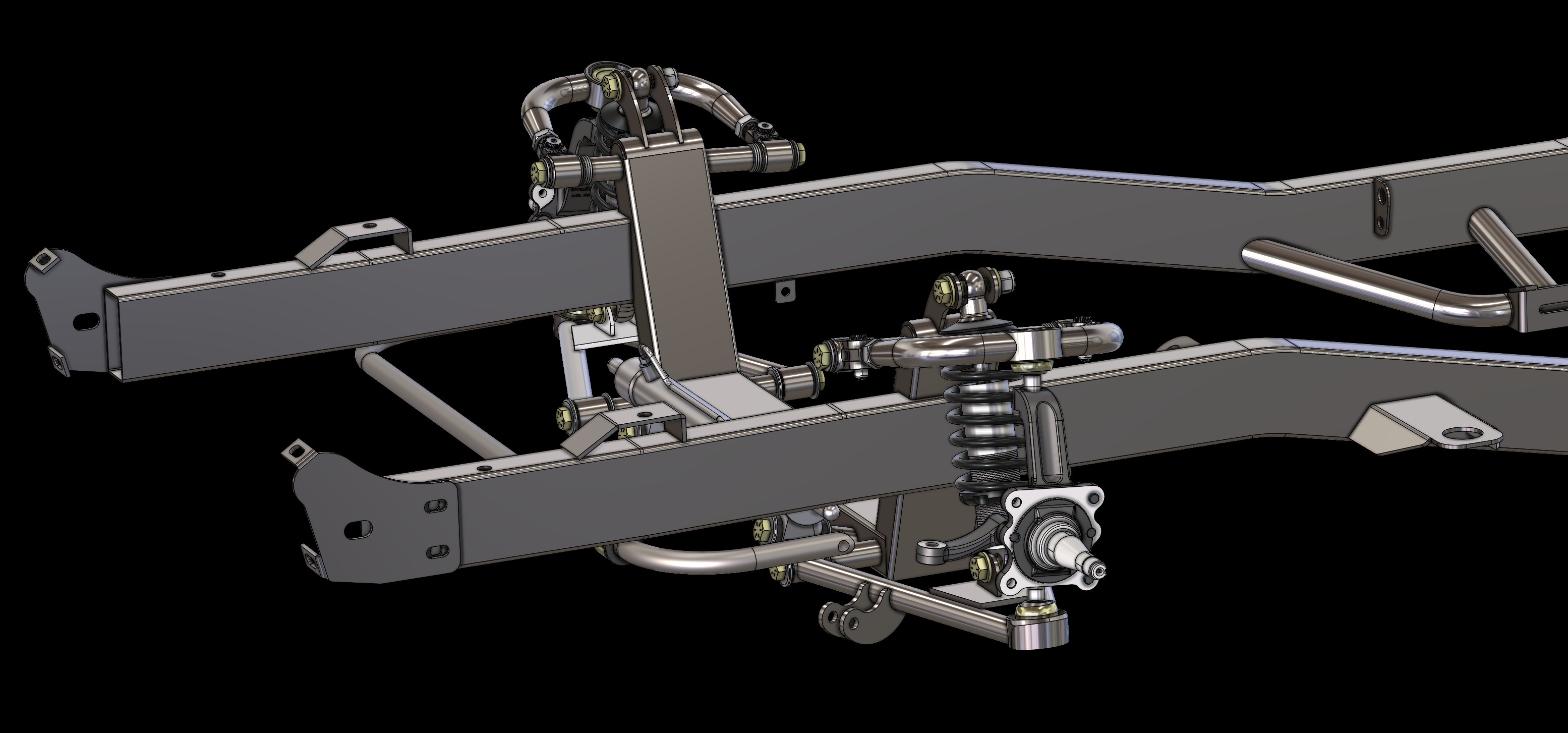

Our proprietary Independent Front Suspension, proven 4-Bar rear suspension, and choice of premium coilovers or SuperSlam air ride provide the ride quality, handling, and stance today’s builders expect. Combined with 100% TIG-welded construction, mandrel-bent frame rails, heavy-duty DOM tubing, Moser Ford 9-inch rear housing, and premium Grade 8 hardware, every chassis is built to handle today’s horsepower while maintaining the craftsmanship Scott’s Hotrods is known for.
Proudly designed and manufactured in Knoxville, Tennessee using American-sourced materials whenever possible, every Scott’s Hotrods chassis is backed by decades of engineering experience and a commitment to building one of the most complete, highest-quality custom truck chassis available.
| Chassis | 1973-1979 F100 Dentside Chassis |
|---|---|
| Ride Height | Coilover (You Pick the Height) or Lay Frame 100% SuperSlam |
| Suspension | A-Arm IFS & Equal-Length Parallel 4-Bar |
| Rear End | Moser Ford 9″ |
| Built | Knoxville, Tennessee |
| Warranty | Limited Lifetime |
| Build Time | Built-To-Order |
Scott’s Coilover ’73-’79 Ford F100 Chassis – Starting at $14,750
Scott’s SuperSlam ’73-’79 Ford F100 Chassis – Starting at $15,650
*MORE PRICING INFORMATION IS IN THE NEXT TABS*
Every Scott’s chassis is designed, engineered, CNC machined, fabricated, and TIG welded in-house in Knoxville, Tennessee by the same team that has built multiple AMBR winners, SEMA award winners, and Goodguys Truck of the Year-winning vehicles.
SCOTT’S CHASSIS FEATURES
| ITEM/UPGRADE | DESCRIPTION | PRICE |
|---|---|---|
| COILOVER CHASSIS | COILOVER CHASSIS | $14,750 |
| SUPERSLAM CHASSIS | SUPERSLAM CHASSIS | $15,650 |
| REAR STEER CHASSIS | ADD | $1,000 |
| LONG BED TRUCK | ADD | $1,500 |
| COILOVERS | Aldan American Single-Adjustable | $0 |
| RideTech Single-Adjustable | $1,650 | |
| Aldan American Double-Adjustable | $1,000 | |
| RideTech Triple-Adjustable | $3,800 | |
| RACK & PINION | Power | $330 |
| Power Rear Steer | $990 | |
| SWAY BAR | 1" Solid Sway Bar | $390 |
| Torsion Spline Sway Bar, FRONT | $840 | |
| Torsion Spline Sway Bar, FRONT & REAR | $1,680 | |
| MOTOR MOUNTS | FORD MODULAR, 4.6, 5.4, 5.0 | $303 |
| SBF, WINDOSR | $204 | |
| BBF, 390, 427, 428 | $204 | |
| BBF, 429, 460 | $204 | |
| LT | $277 | |
| LS | $204 | |
| FORD, Y-BLOCK | $204 | |
| SBC | $185 | |
| BBC | $185 | |
| 318, 360, MOPAR, EARLY | $216 | |
| 352, 392, MOPAR, HEMI | $260 | |
| 318, 360, MOPAR, LATE | $216 | |
| 426, MOPAR, HEMI | $260 | |
| HELLCAT, MOPAR | $216 | |
| 440, MOPAR | $216 | |
| 5.7, 6.1, MOPAR, HEMI | $216 | |
| TRANSMISSION | TRANS MOUNT | $400 |
| SPINDLES | WILWOOD PRO | $430 |
| PRO M2 HUB* | $650 | |
| BRAKES (1/2"-20 STUDS) | 11" D&S Wilwood Kit, Red or Black | $2,411 |
| 12" D&S Wilwood Kit, Red or Black | $2,525 | |
| 13" D&S Wilwood Kit, Red or Black | $4,452 | |
| 14" D&S Wilwood Kit, Red or Black | $4,846 | |
| 14" D&S Wilwood Kit, Red or Black, AERO, PRO* | $5,235 | |
| 15" & 14" D&S Wilwood Kit, Red or Black, AERO, PRO* | $5,399 | |
| 15" & 14" Slotted Wilwood Kit, Red or Black, AERO, PRO* | $5,261 | |
| PRO M2 HUB* | 12" D&S Wilwood Kit, Red or Black | $2,436 |
| 12" D&S Wilwood Kit, Red or Black 6-PISTON | $2,654 | |
| 13" D&S Wilwood Kit, Red or Black | $4,332 | |
| 14" D&S Wilwood Kit, Red or Black | $4,698 | |
| 14" D&S Wilwood Kit, Red or Black, AERO | $5,141 | |
| 15" & 14" D&S Wilwood Kit, Red or Black, AERO | $5,282 | |
| 15" & 14" Slotted Wilwood Kit, Red or Black, AERO | $5,282 | |
| ALUMINUM FUEL TANK | TANK +SENDER | $1,125 |
| TANK +SENDER +PA-4 PUMP | $1,501 | |
| TANK +SENDER +PA-6 PUMP | $1,531 | |
| TANK +SENDER +PA-8 PUMP | $1,561 | |
| TANK +SENDER +PA-9 PUMP | $1,591 | |
| FUEL LINES - STAINLESS STEEL | FEED -6AN 3/8" HARDLINE | $860 |
| FEED -6AN & RETURN -6AN 3/8" HARDLINE | $1,415 | |
| FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE | $1,600 | |
| FEED -8AN & RETURN -8AN 1/2" HARDLINE | $1,815 | |
| BRAKE LINES - STAINLESS STEEL | STAINLESS BRAKE LINES +FLEX LINES | $1,290 |
| REAR END | MOSER M9 FAB, 35-SPLINE | $225 |
| BACK BRACE | $250 | |
| FULL-FLOATER 31-spline, FAB Housing, Back Brace | $2,500 | |
| WATT'S LINK | $1,155 | |
| WaveTrac 3rd member (31 or 35-spline) | $2,160 | |
| Powder Coated 3rd Member | $120 | |
| REM FINISH Gears | $165 | |
| POWDER COATING | CHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up. | $3,300 |
| ACCESSORIES | GUNI Wheels (set of 4) | $840 |
| POWER STEERING LINE KIT | $185 | |
| PARKING BRAKE CABLES | $170 | |
| STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG) | $425 | |
| WILWOOD COMPACT MASTER CYLINDER, BLACK | $350 | |
| SCOTT'S FUEL CAP | $94 | |
| CHASSIS ASSEMBLY | STANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES | $0 |
| DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED. | $650 | |
| CHASSIS CRATING | NEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY) | $1,350 |
*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771
Need help configuring your chassis?
✔ Engine
✔ Transmission
✔ Ride Height
✔ Wheel Size
✔ Rear End
Talk with a Scott’s chassis specialist: 865-951-2081
A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.
We stand behind ALL of the parts we manufacture. Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturer’s warranties. We are not responsible for these items outside of their original warranty.
All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods Warranty is non-transferable.
Ford Rear Sump Oil Pan Required SBF M-6675-A50
GM Performance Parts LS Engine Oil Pan 12628771
Holley 302-2 LS Swap Pan
Borgeson Steering Linkage Kit
Scott’s Hotrods Power Steering Line Kit
Scott’s Hotrods ’67-’72 F100 LowPro Hood Hinges
Scott’s Hotrods Hot Rod Gas Pedal
Scott’s Hotrods Exhaust Hangers
Reduces front-end dive during braking for more confidence and better control.
Eliminates weak bolt-together designs while increasing chassis rigidity.
Leaves room for exhaust while tying the chassis together, providing rigidity.
Designed specifically for the 1967-1972 F100 Trucks—not adapted from a universal suspension.

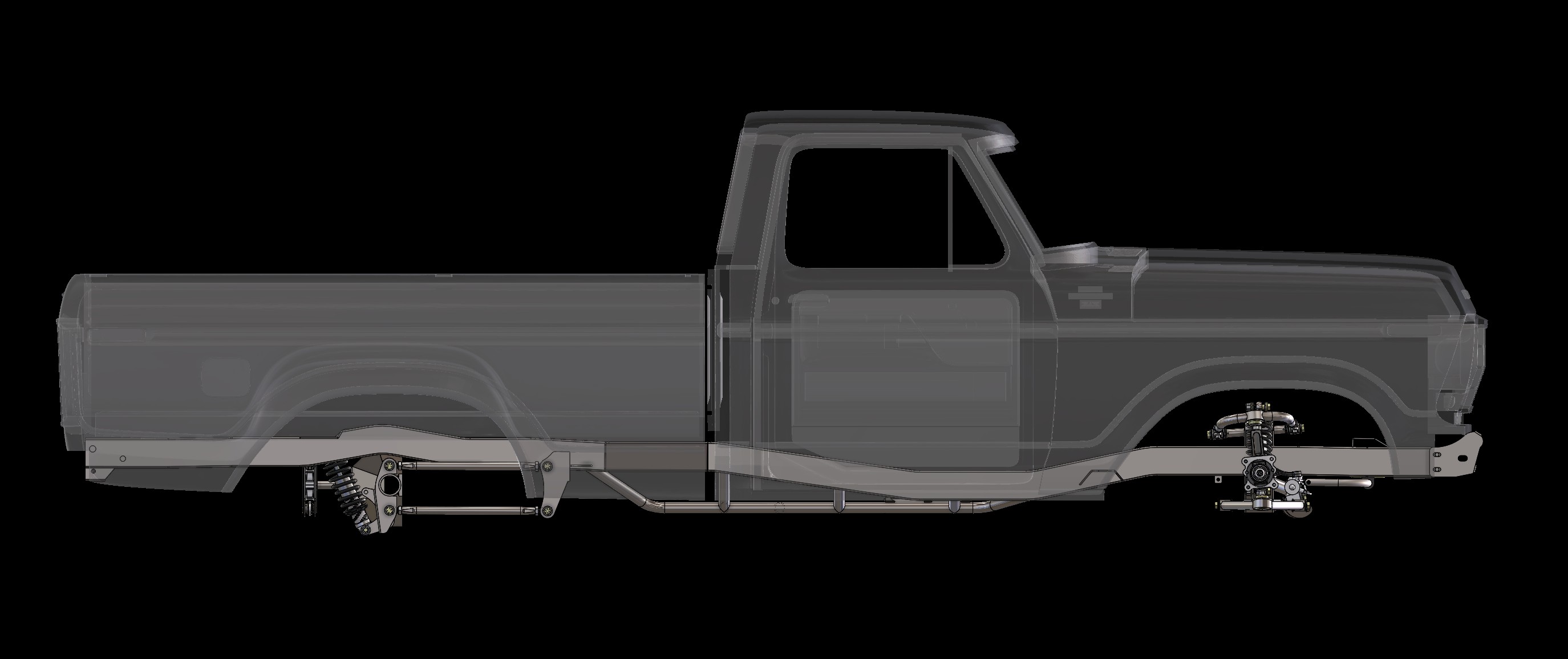

You tell us how low you want your Dentside F100 Truck and we build the chassis accordingly.
| Chassis Features | Scott’s | Typical Competitor |
| 100% Built-To-Order | ✔ | ✖ |
| 100% Vehicle-Specific | ✔ | Sometimes |
| 100% TIG Welded | ✔ | Usually MIG |
| The MOST Options | ✔ | Not Even Close |
| One-Piece IFS Crossmember | ✔ | Varies |
| Custom Track Width at no cost | ✔ | Sometimes |
| American Sourced Materials | ✔ | Varies |
| Equal Length Parallel 4-Bar | ✔ | Varies |
| Mandrel Bent Frame Rails | ✔ | Rare |
| Lifetime Warranty | ✔ | Limited |
Scott’s Hotrods is the trusted source for premium, built-to-order Ford truck chassis. Whether you’re restoring a classic 1948-1952 Ford F1, 1953-1956 Ford F100, 1957-1960 Ford F100, 1961-1966 Ford F100, 1967-1972 Ford F100 Bumpside, 1973-1979 Ford F100 Dentside, 1980-1986 Ford F150 Bullnose, or 1987-1991 Ford F150, every Scott’s chassis is engineered to transform your truck with modern performance, exceptional ride quality, and confidence-inspiring handling. Designed, engineered, and handcrafted entirely in-house, our chassis combine timeless styling with today’s suspension technology, allowing your classic Ford pickup to perform as good as it looks. Built from premium USA-made materials and backed by our Lifetime Craftsmanship Warranty, Scott’s Hotrods delivers the foundation your dream truck deserves.
Every Scott’s Hotrods Ford truck chassis is built with the same uncompromising quality that has made our suspension systems famous. Each chassis is 100% TIG welded, built to order, and customized specifically for your project. Choose your desired ride height, coilovers or airbags, engine and transmission mounts, Wilwood brake packages, complete Moser Ford 9-inch rear axle assemblies with POSI differentials, stainless steel fuel and brake lines, aluminum fuel tank, sway bar options, and much more. Whether you’re building a slammed show truck that lays frame, a Pro Touring street machine, a high-horsepower restomod, or a comfortable weekend cruiser, we’ll engineer your chassis around your exact goals. Featuring our heavy-duty 8-point center crossmember for exceptional rigidity and strength, Scott’s Hotrods chassis are among the most complete and customizable chassis available, delivering the craftsmanship, performance, and reliability serious builders expect.
