Give your 1954–1956 Oldsmobile 88 the ride, handling and performance of a modern custom car with a completely new Scott’s Hotrods chassis. Whether you’re building a comfortable highway cruiser, powerful Oldsmobile restomod, Pro-Touring build or a ground-hugging custom, every Scott’s Olds 88 chassis is Built-To-Order around your specific vehicle and build goals.
This isn’t a universal frame adapted to fit your Oldsmobile. Scott’s builds each 1954, 1955 and 1956 Oldsmobile 88 chassis specifically for the application using our proprietary Independent Front Suspension, Equal-Length Parallel 4-Bar rear suspension, mandrel-bent frame rails and heavy-duty components engineered for modern performance.
Every Scott’s chassis begins with the specifications of the car it’s going underneath.
Your engine, transmission, wheel and tire combination, brake package, steering configuration, suspension choice and desired ride height are considered before fabrication begins. Engine and transmission mounts can be positioned for your specific drivetrain, while the chassis is configured around the stance and performance characteristics you want from the finished car.
From a traditional Oldsmobile-powered cruiser to a modern EFI-powered restomod, the chassis is built around your car—not the other way around.
Scott’s Coilover 1954-1956 Olds 88 Chassis – Starting at $14,750
Scott’s SuperSlam 1954-1956 Olds 88 Chassis – Starting at $15,650
*MORE PRICING INFORMATION IS IN THE NEXT TABS*
SCOTT’S CHASSIS FEATURES
Mandrel Bent 2”x4”x.120-wall tube frame rails
8-Point 1-1/2” DOM tubular Chassis Crossmember
1-piece 2”x4”x3/16”-wall tube IFS Crossmember
100% TIG-welded
Scott’s IFS
Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
Built-in Anti-Dive
Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
Oversized, Serviceable Press-In Ball Joints
Standard or Drop Forged Steel Spindles
Aldan American Single-Adjustable Coilovers or Airbags & Shocks
Manual Steering Rack & Pinion
Scott’s 4-Bar
1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
FK Bearing Heim Joints – RH- & LH-Thread
Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
Body Mounts
All Grade-8 Hardware
LIFETIME GUARANTEE
Coilover or SuperSlam Oldsmobile Chassis
Coilover Chassis
For an Oldsmobile built to rack up miles, Scott’s Coilover Chassis provides modern ride quality and handling while maintaining the stance appropriate for the build.
Aldan American single-adjustable coilovers come standard, with additional performance-oriented shock options available.
Whether you’re building a comfortable cruiser or a more aggressive Pro-Touring-inspired Olds 88, the chassis can be configured around how you intend to drive it.
SuperSlam Airbag Chassis
Want your 1954–1956 Oldsmobile 88 sitting on the ground?
Scott’s SuperSlam Chassis is engineered around air suspension from the beginning. The increased suspension travel and adjustable ride height allow the car to achieve an extremely low parked stance while maintaining a usable driving height on the road.
The current page already has a SuperSlam Olds 88 chassis photo, so I’d make that image prominent directly underneath this section rather than leaving it buried toward the bottom.
From Bare Chassis to Complete Roller
One of Scott’s biggest advantages is how completely we can configure your chassis before it leaves our shop.
Available options include power rack & pinion steering, Wilwood disc brakes, upgraded coilovers, front and rear sway bars, Moser rear-end upgrades, Watt’s Link, custom aluminum fuel tank, in-tank fuel pump, stainless steel fuel lines, stainless steel brake lines, steering linkage and more.
Rather than buying a bare frame and sourcing every major component separately, your Oldsmobile chassis can be ordered as a much more complete package engineered around the finished vehicle.
Scott's Hotrods Chassis Pricing 2026
ITEM/UPGRADE
DESCRIPTION
PRICE
COILOVER CHASSIS
COILOVER CHASSIS
$14,750
SUPERSLAM CHASSIS
SUPERSLAM CHASSIS
$15,650
REAR STEER CHASSIS
ADD
$1,000
LONG BED TRUCK
ADD
$1,500
COILOVERS
Aldan American Single-Adjustable
$0
RideTech Single-Adjustable
$1,650
Aldan American Double-Adjustable
$1,000
RideTech Triple-Adjustable
$3,800
RACK & PINION
Power
$330
Power Rear Steer
$990
SWAY BAR
1" Solid Sway Bar
$390
Torsion Spline Sway Bar, FRONT
$840
Torsion Spline Sway Bar, FRONT & REAR
$1,680
MOTOR MOUNTS
FORD MODULAR, 4.6, 5.4, 5.0
$303
SBF, WINDOSR
$204
BBF, 390, 427, 428
$204
BBF, 429, 460
$204
LT
$277
LS
$204
FORD, Y-BLOCK
$204
SBC
$185
BBC
$185
318, 360, MOPAR, EARLY
$216
352, 392, MOPAR, HEMI
$260
318, 360, MOPAR, LATE
$216
426, MOPAR, HEMI
$260
HELLCAT, MOPAR
$216
440, MOPAR
$216
5.7, 6.1, MOPAR, HEMI
$216
TRANSMISSION
TRANS MOUNT
$400
SPINDLES
WILWOOD PRO
$430
PRO M2 HUB*
$650
BRAKES (1/2"-20 STUDS)
11" D&S Wilwood Kit, Red or Black
$2,411
12" D&S Wilwood Kit, Red or Black
$2,525
13" D&S Wilwood Kit, Red or Black
$4,452
14" D&S Wilwood Kit, Red or Black
$4,846
14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,235
15" & 14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,399
15" & 14" Slotted Wilwood Kit, Red or Black, AERO, PRO*
$5,261
PRO M2 HUB*
12" D&S Wilwood Kit, Red or Black
$2,436
12" D&S Wilwood Kit, Red or Black 6-PISTON
$2,654
13" D&S Wilwood Kit, Red or Black
$4,332
14" D&S Wilwood Kit, Red or Black
$4,698
14" D&S Wilwood Kit, Red or Black, AERO
$5,141
15" & 14" D&S Wilwood Kit, Red or Black, AERO
$5,282
15" & 14" Slotted Wilwood Kit, Red or Black, AERO
$5,282

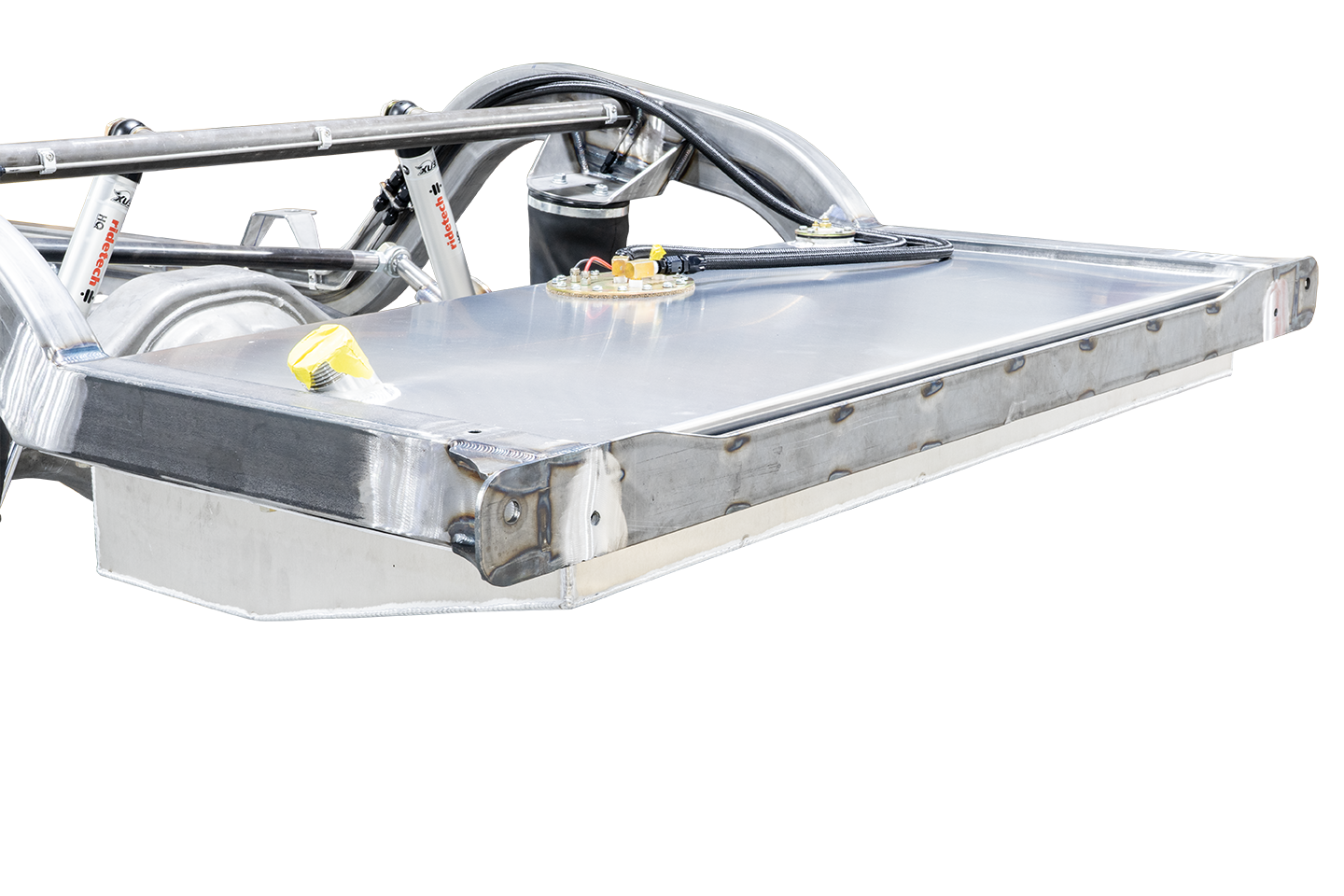

ALUMINUM FUEL TANK
TANK +SENDER
$1,125
TANK +SENDER +PA-4 PUMP
$1,501
TANK +SENDER +PA-6 PUMP
$1,531
TANK +SENDER +PA-8 PUMP
$1,561
TANK +SENDER +PA-9 PUMP
$1,591
FUEL LINES - STAINLESS STEEL
FEED -6AN 3/8" HARDLINE
$860
FEED -6AN & RETURN -6AN 3/8" HARDLINE
$1,415
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE
$1,600
FEED -8AN & RETURN -8AN 1/2" HARDLINE
$1,815
BRAKE LINES - STAINLESS STEEL
STAINLESS BRAKE LINES +FLEX LINES
$1,290
REAR END
MOSER M9 FAB, 35-SPLINE
$225
BACK BRACE
$250
FULL-FLOATER 31-spline, FAB Housing, Back Brace
$2,500
WATT'S LINK
$1,155
WaveTrac 3rd member (31 or 35-spline)
$2,160
Powder Coated 3rd Member
$120
REM FINISH Gears
$165
POWDER COATING
CHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.
$3,300
ACCESSORIES
GUNI Wheels (set of 4)
$840
POWER STEERING LINE KIT
$185
PARKING BRAKE CABLES
$170
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)
$425
WILWOOD COMPACT MASTER CYLINDER, BLACK w/combo valve
$520
SCOTT'S FUEL CAP
$94
CHASSIS ASSEMBLY
STANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES
$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.
$650
CHASSIS CRATING
NEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)
$1,350
A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack
*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771
We stand behind ALL of the parts we manufacture. Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties. We are not responsible for these items outside of their original warranty.
All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

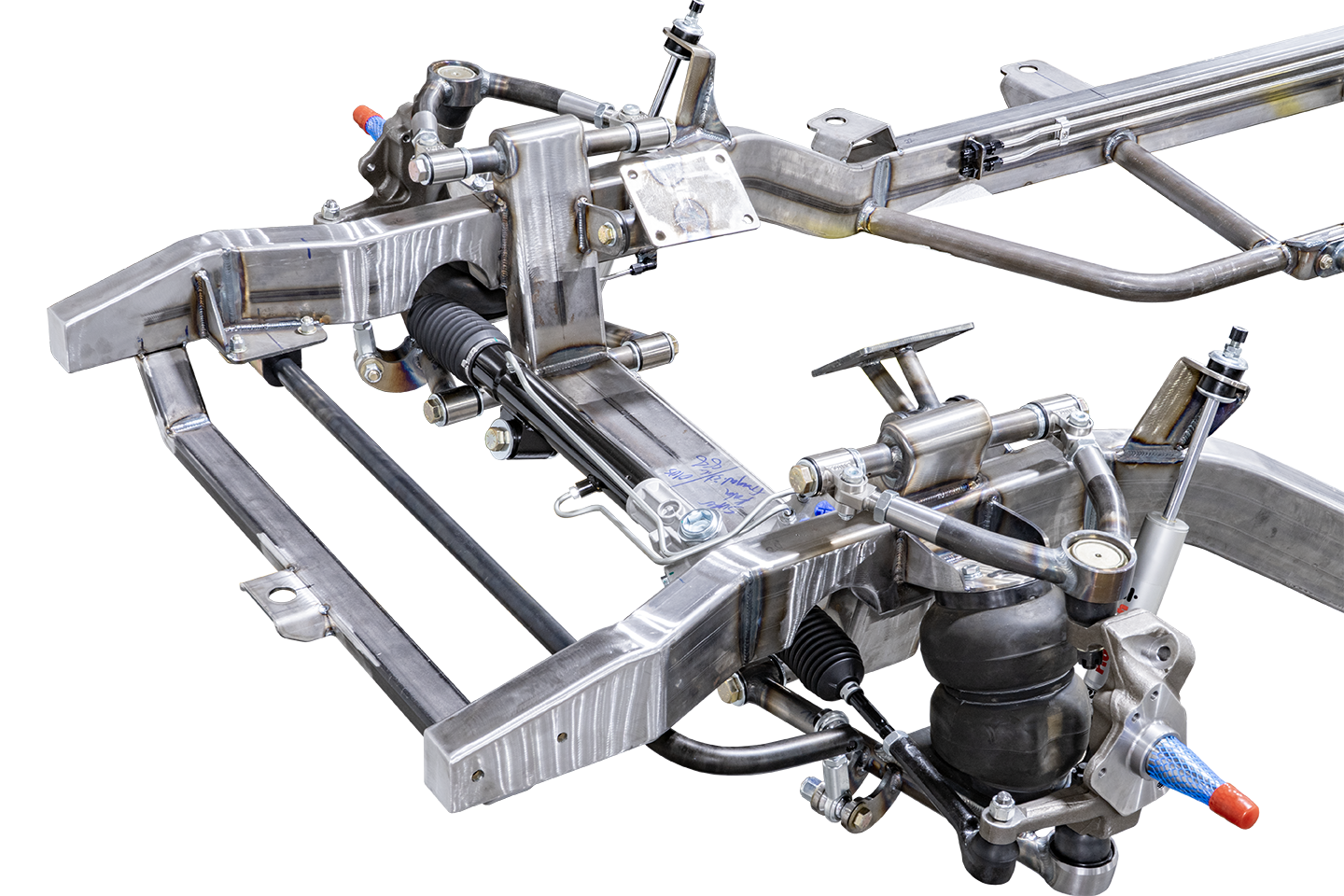

At the front is Scott’s proprietary Independent Front Suspension, engineered and manufactured by Scott’s Hotrods.
The system features a one-piece 2″x4″x3/16″-wall IFS crossmember, heavy-duty 1-1/8″x.250-wall DOM tubular upper and lower control arms, built-in anti-dive geometry, oversized serviceable press-in ball joints and Scott’s CNC machined stainless steel adjustable upper control-arm rod ends.
This is Scott’s IFS—not a Mustang II suspension adapted to fit an Oldsmobile.

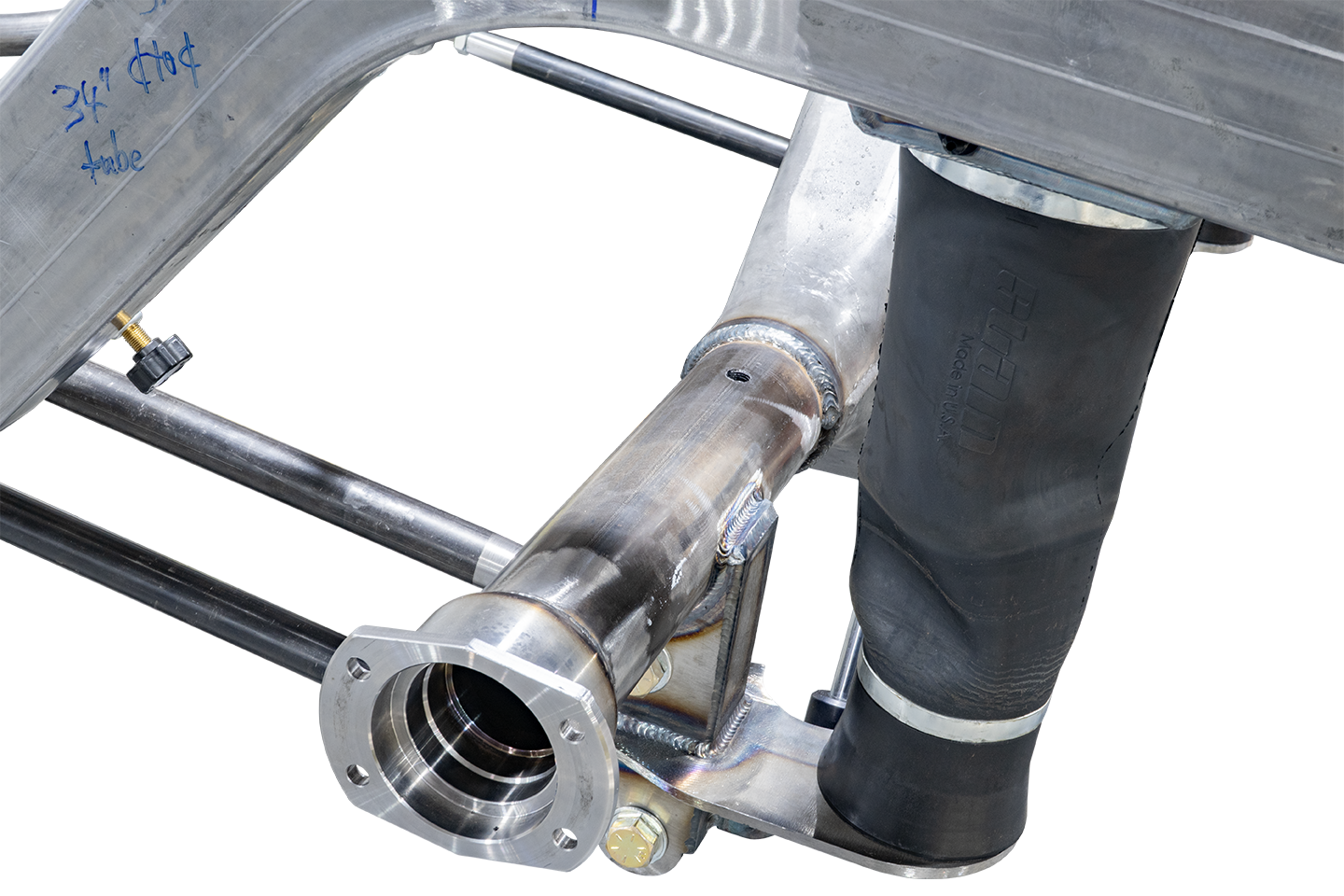

Equal-Length Parallel 4-Bar Rear Suspension
Out back, Scott’s replaces the original rear suspension with our Equal-Length Parallel 4-Bar Rear Suspension.
Heavy-duty DOM link bars and CNC machined stainless steel rod ends provide a strong, adjustable rear suspension system. Unlike a triangulated 4-link, the equal-length parallel design helps maintain more consistent pinion-angle geometry throughout suspension travel.
A Moser Ford 9-inch housing with 31-spline axles comes standard. Available upgrades include a Moser M9 FAB housing, 35-spline axles and Scott’s Watt’s Link for customers looking for an even more capable rear suspension package.

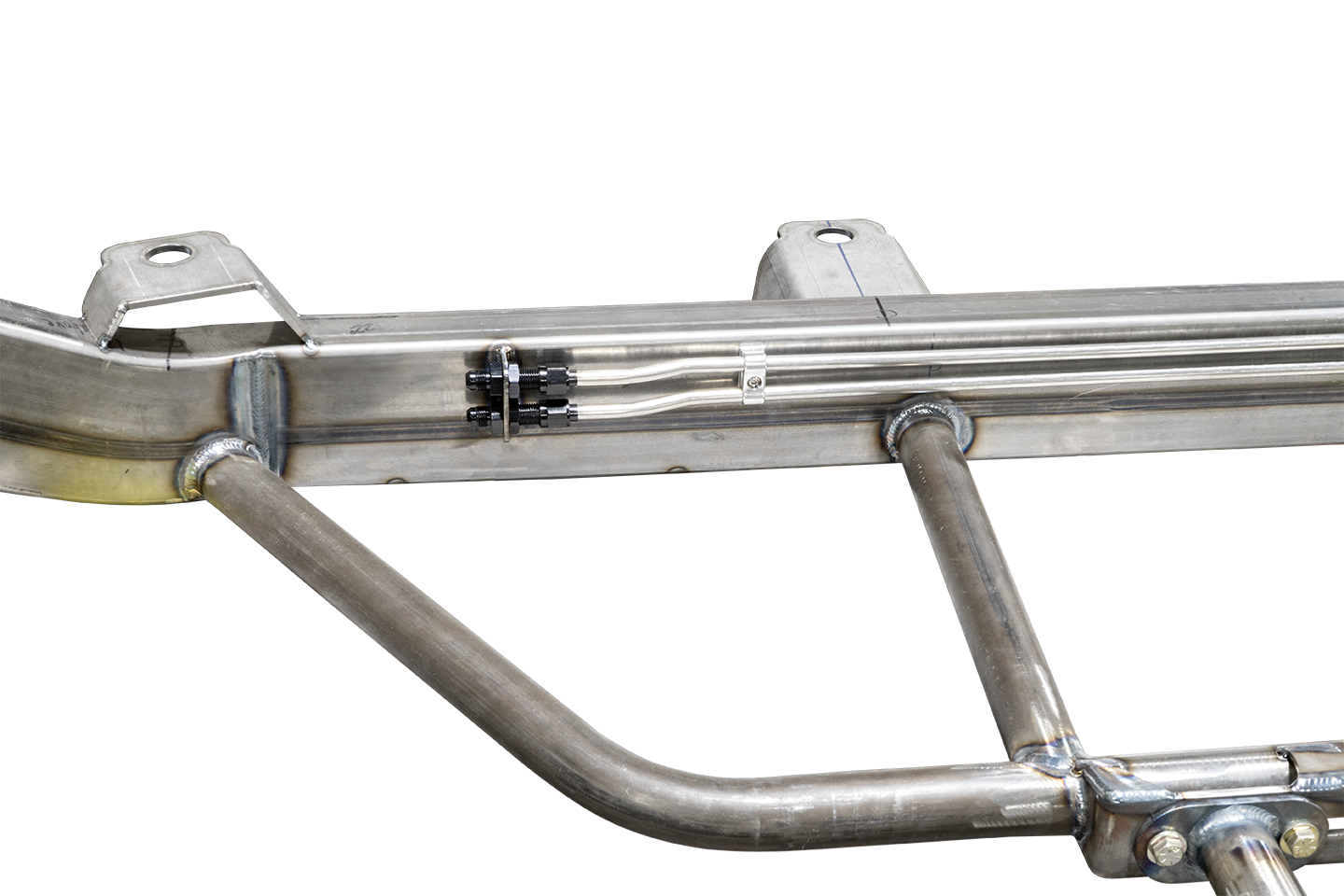

Mandrel Bent. TIG Welded. Built in America.
Every Scott’s 1954–1956 Oldsmobile 88 Chassis begins with raw materials and is manufactured using vehicle-specific fixtures and jigs.
The chassis features mandrel-bent 2″x4″x.120-wall frame rails, an 8-point 1-1/2″ DOM tubular chassis crossmember, Scott’s heavy-duty one-piece IFS crossmember and 100% TIG-welded construction.
The chassis and crossmembers are also engineered with the complete vehicle in mind. Seating area, floor clearance, exhaust routing, drivetrain placement and chassis rigidity all matter when building a chassis for a custom car.
SuperSlam Chassis - Olds 88
Build Your Oldsmobile on a Better Foundation
The 1954, 1955 and 1956 Oldsmobile 88 has the size, styling and unmistakable presence that makes a mid-’50s custom stand out. The chassis underneath it doesn’t have to drive like it’s more than 70 years old.
A Scott’s Hotrods 1954–1956 Oldsmobile 88 Custom Chassis combines that classic Oldsmobile character with Scott’s proprietary IFS, Equal-Length Parallel 4-Bar rear suspension, Moser Ford 9-inch rear end, rack & pinion steering and your choice of coilover or SuperSlam air suspension.
From a comfortable long-distance cruiser to a high-horsepower restomod or completely laid-out custom, Scott’s builds your chassis around the Oldsmobile you want to create.
Ready to get started? Request a quote for your 1954–1956 Oldsmobile 88 chassis.
