Why is Scott’s Hotrods Different?

Scott’s ’67-’72 F100 Long Bed Chassis are built specifically for you and your truck.  Scott’s Hotrods ‘n Customs IS Quality, Engineering & Workmanship. 100% TIG Welded, 100% American Made, 100% Bad Ass.

If you are looking for the MOST complete chassis available for your ’67-’72 Ford F100 Bumpside Long Bed Truck, you have come to the right place. Each and every chassis is Built-To-Order per the vehicle and customer specs. Coilovers (Casual Cruiser to ProTouring) or Airbags (Lay Frame/Rocker, Adjustable On-The-Fly Ride Height).  You won’t find any leaf springs or drum brakes here.

WE CAN BUILD A LONG BED CHASSIS FOR ANY LONG BED TRUCK 1925-1987!

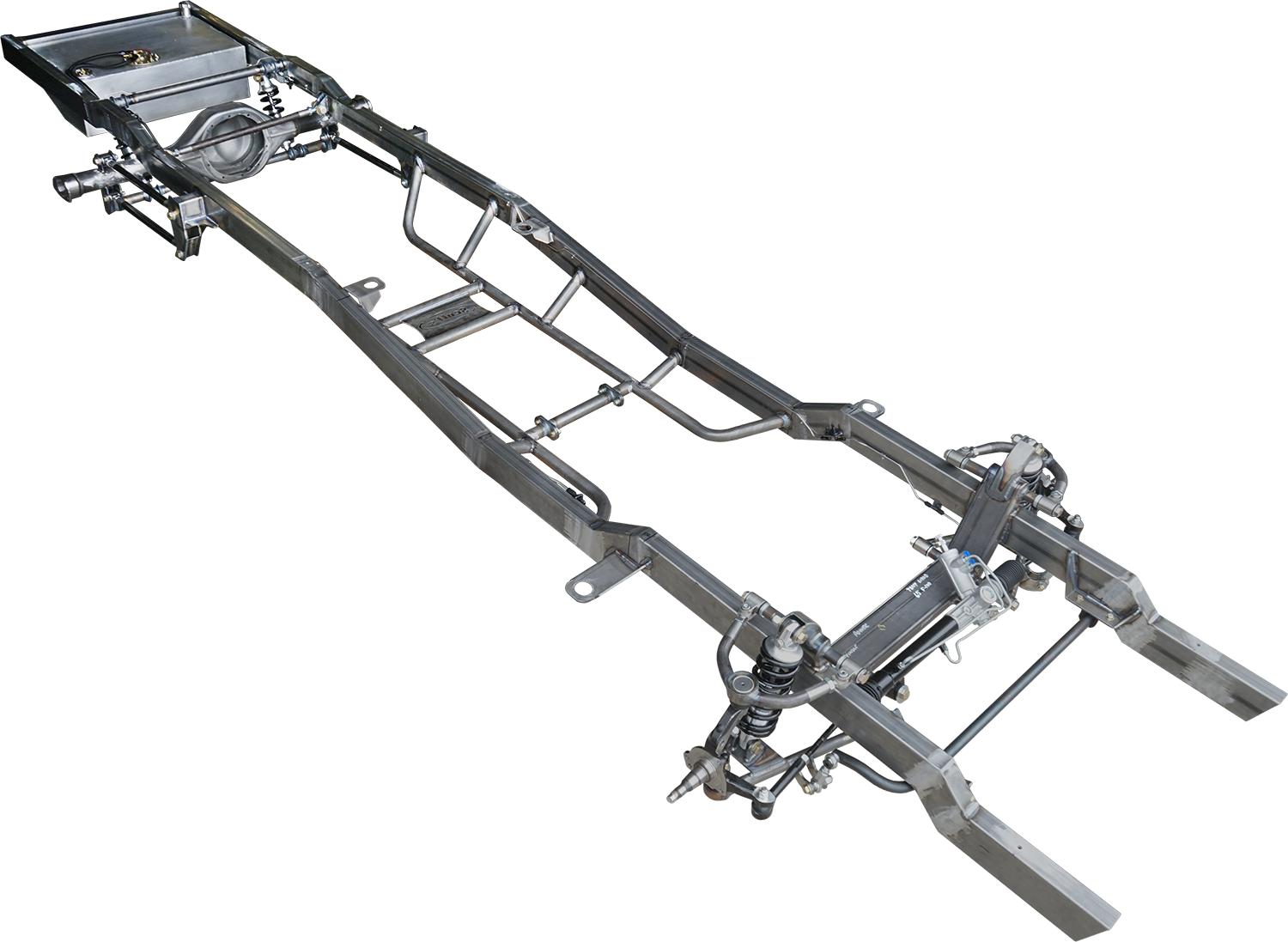

’67-’72 Ford F100 Long Bed Truck Coilover Chassis – Starting at $14,810
’67-’72 Ford F100 Long Bed Truck SuperSlam Chassis – Starting at $15,620

*MORE PRICING INFORMATION IS IN THE NEXT TABS*

SCOTT’S LONG BED CHASSIS FEATURES
Starting at $14,810
Includes the Following:

  • Mandrel Bent 2”x4”x.120-wall tube frame rails
  • 8-Point 1-1/2” DOM tubular Chassis Crossmember
  • 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
  • 100% TIG-welded

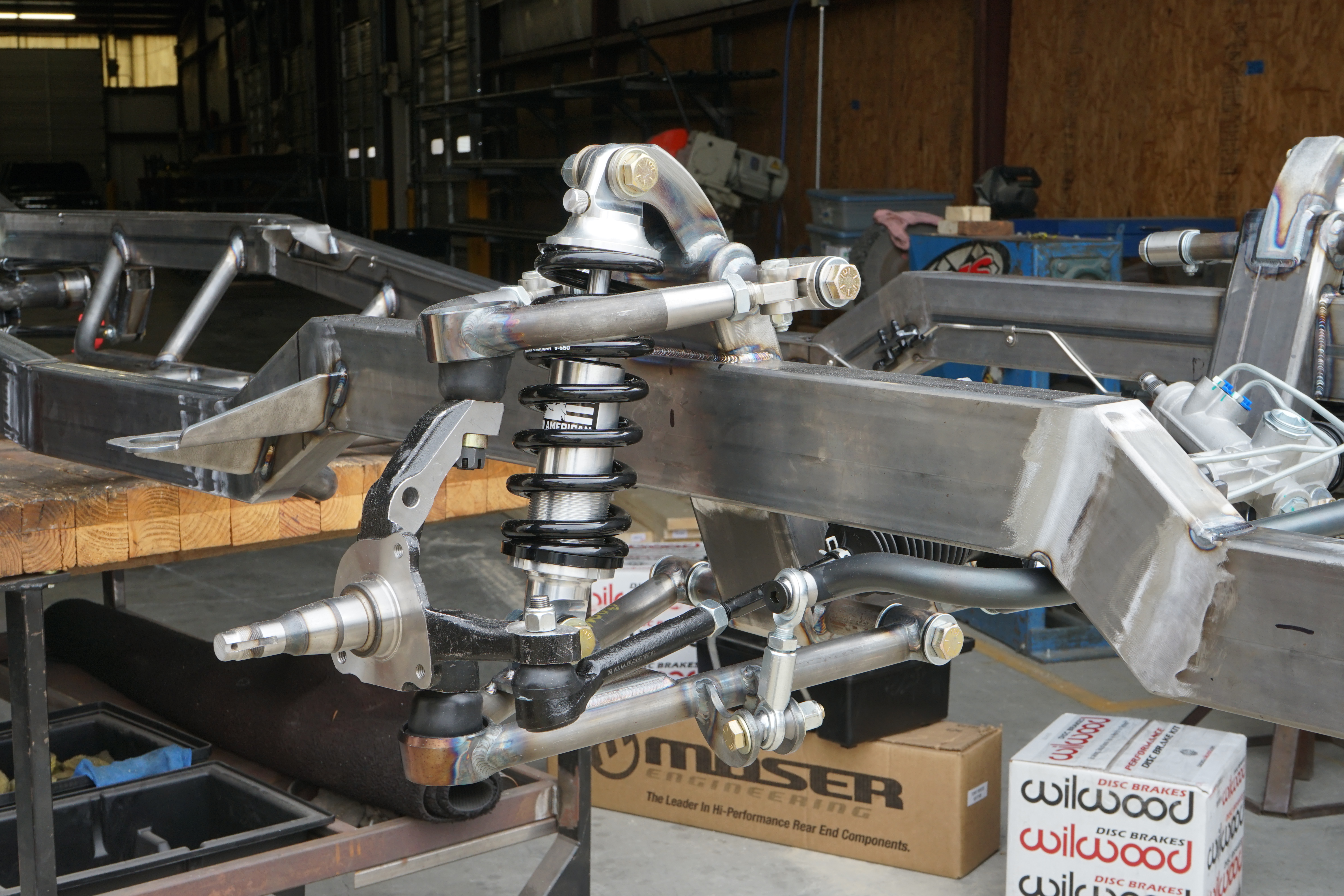

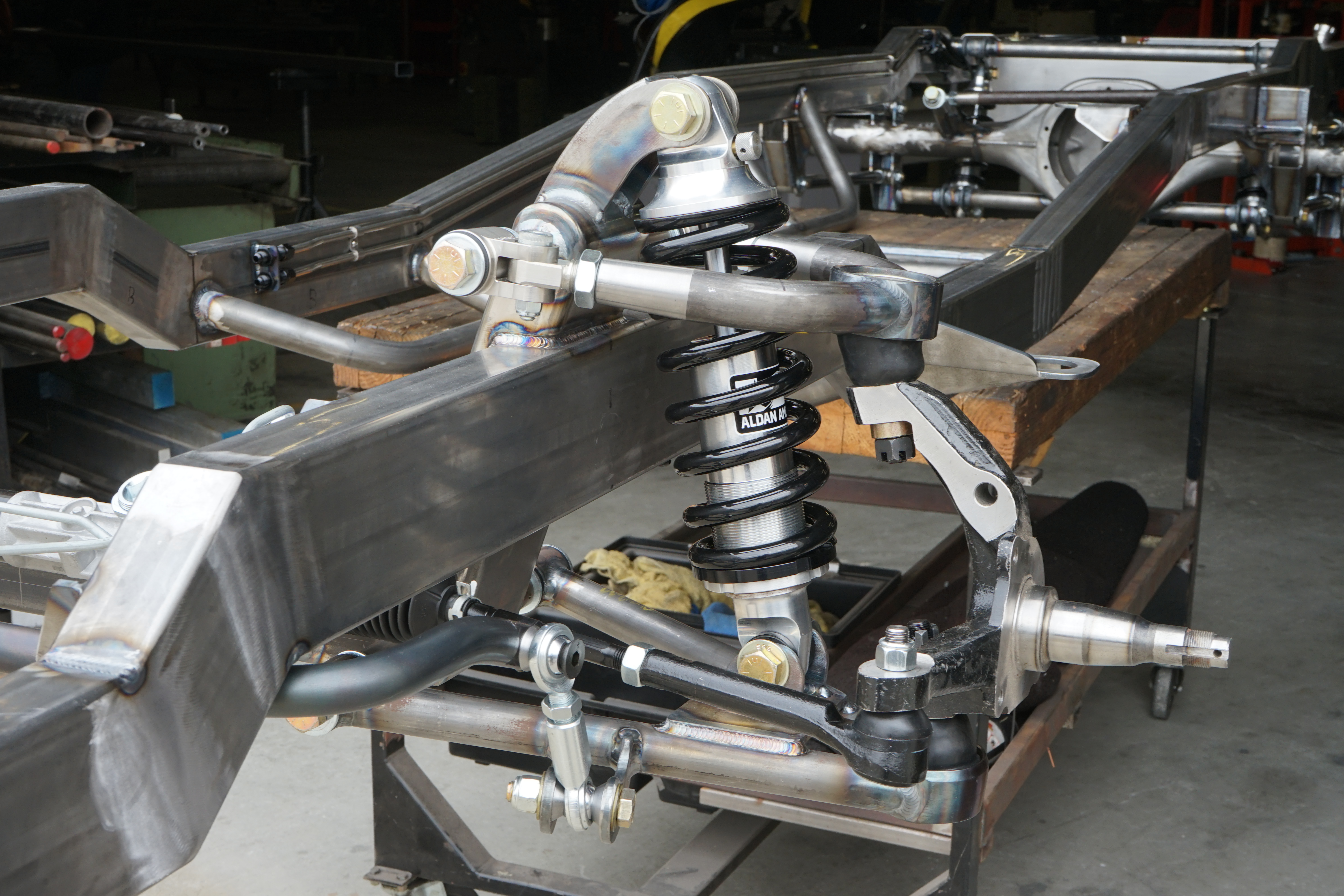

  • Scott’s IFS
  • Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
  • Built-in Anti-Dive

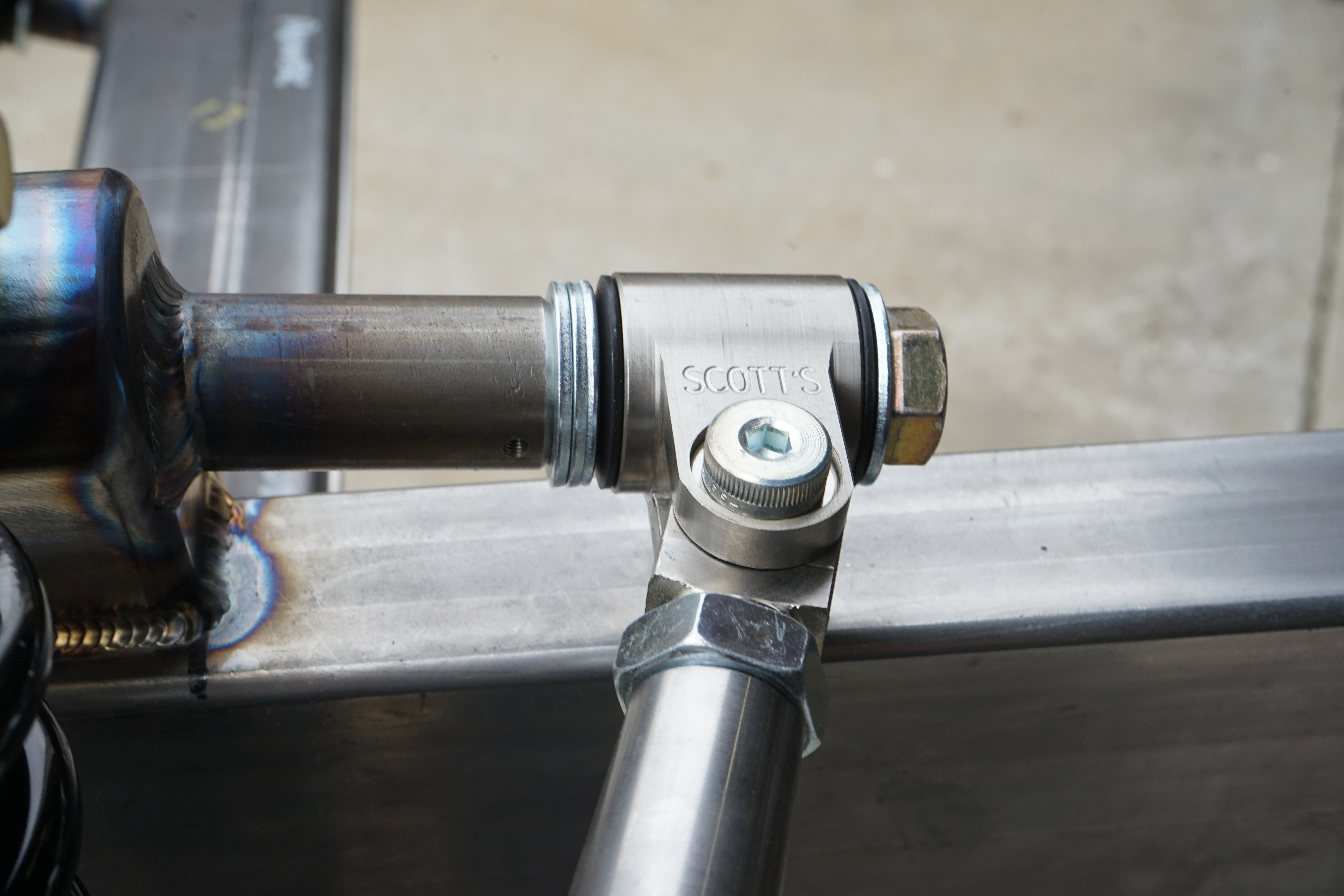

  • Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
  • Oversized, Serviceable Press-In Ball Joints
  • Standard or Drop Forged Steel Spindles

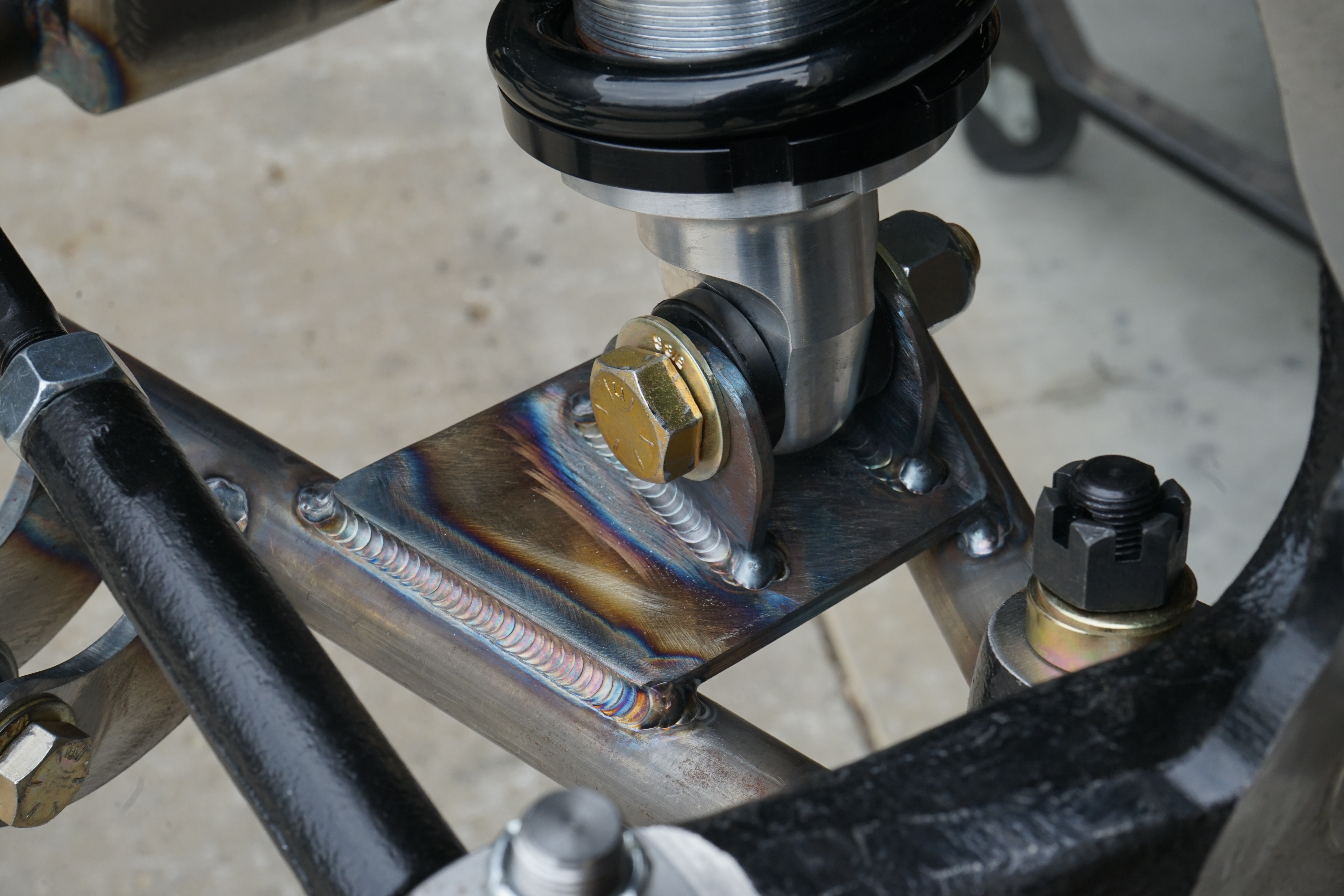

  • Aldan American Single-Adjustable Coilovers or Airbags & Shocks
  • Manual Steering Rack & Pinion
  • Scott’s 4-Bar
  • 1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
  • Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
  • 1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
  • FK Bearing Heim Joints – RH- & LH-Thread

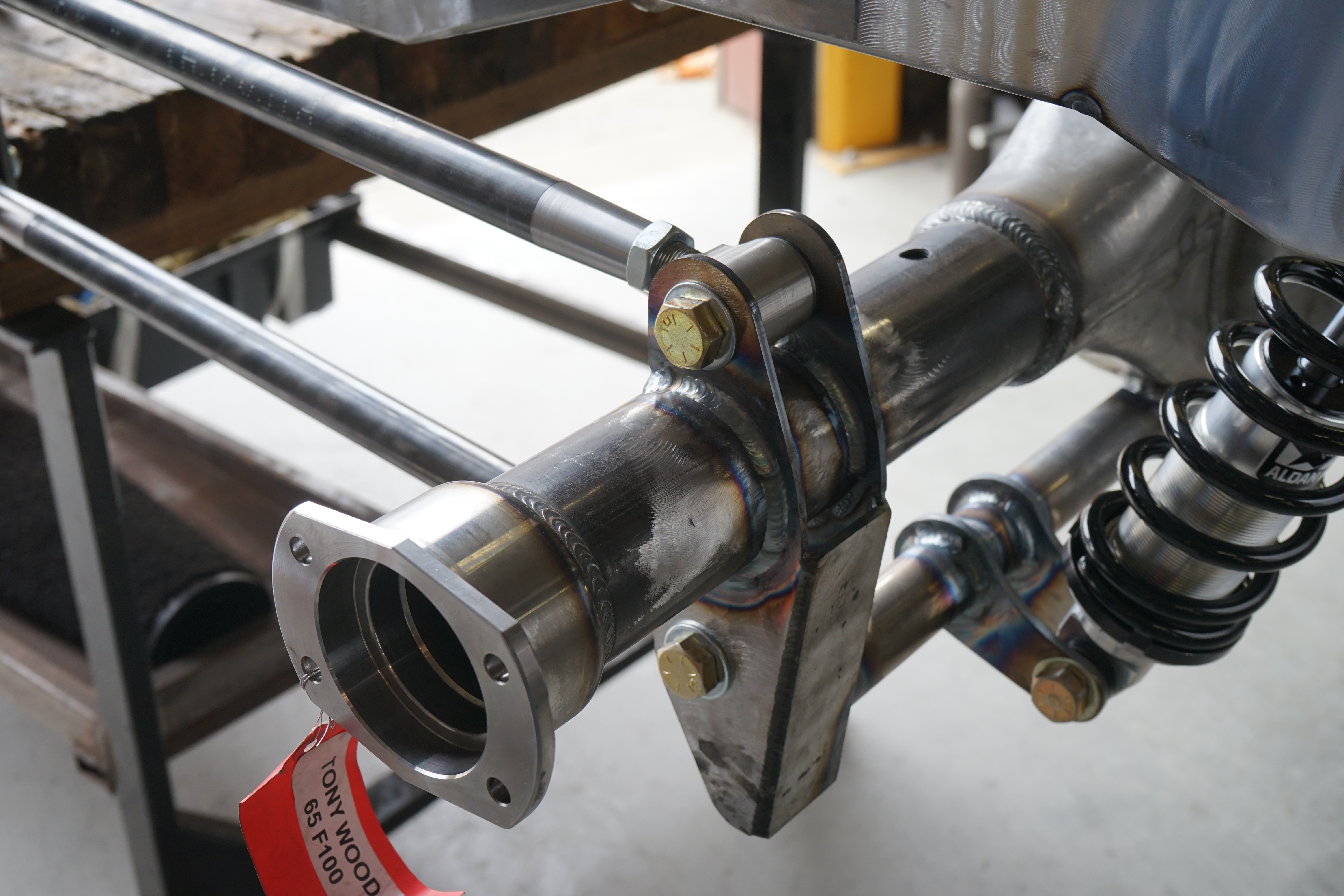

  • Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
  • Body Mounts
  • All Grade-8 Hardware
  • LIFETIME GUARANTEE



Scott's Hotrods Chassis Pricing 2023

ITEM/UPGRADEDESCRIPTIONPRICE
COILOVER CHASSISCOILOVER CHASSIS$13,410
SUPERSLAM CHASSISSUPERSLAM CHASSIS$14,220
REAR STEER CHASSISADD$1,000
LONG BED TRUCKADD$1,400
COILOVERSAldan American Single-Adjustable$0
RideTech Single-Adjustable$1,500
Aldan American Double-Adjustable$1,100
RideTech Triple-Adjustable$3,700
RACK & PINIONPower$310
Power Rear Steer$950
SWAY BAR1" Solid Sway Bar$356
Torsion Spline Sway Bar, FRONT$770
Torsion Spline Sway Bar, FRONT & REAR$1,540
SPINDLESWILWOOD PRO$350
MOTOR MOUNTSFORD MODULAR, 4.6, 5.4, 5.0$303
SBF, WINDOSR$204
BBF, 390, 427, 428$204
BBF, 429, 460$204
LT$277
LS$204
FORD, Y-BLOCK$204
SBC$185
BBC$185
318, 360, MOPAR, EARLY$216
352, 392, MOPAR, HEMI$260
318, 360, MOPAR, LATE$216
426, MOPAR, HEMI$260
HELLCAT, MOPAR$216
440, MOPAR$216
5.7, 6.1, MOPAR, HEMI$216
TRANSMISSIONTRANS MOUNT$370
BRAKES (1/2"-20 STUDS)11" D&S Wilwood Kit, Red or Black$2,147
12" D&S Wilwood Kit, Red or Black$2,191
13" D&S Wilwood Kit, Red or Black$4,048
14" D&S Wilwood Kit, Red or Black$4,405
14" D&S Wilwood Kit, Red or Black, AERO$4,759
ALUMINUM FUEL TANKTANK +SENDER$825
TANK +SENDER +PA-4 PUMP$1,260
TANK +SENDER +PA-6 PUMP$1,337
TANK +SENDER +PA-9 PUMP$1,507
FUEL LINES - STAINLESS STEELFEED -6AN 3/8" HARDLINE$781
FEED -6AN & RETURN -6AN 3/8" HARDLINE$1,287
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE$1,458
FEED -8AN & RETURN -8AN 1/2" HARDLINE$1,650
BRAKE LINES - STAINLESS STEELSTAINLESS BRAKE LINES +FLEX LINES$1,172
REAR ENDMOSER M9 FAB, 35-SPLINE $225
BACK BRACE$250
WATT'S LINK $1,050
TrueTrac 3rd member (31-spline)$1,980
WaveTrac 3rd member (35-spline)$2,160
POWDER COATINGCHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.$3,300
ACCESSORIESGUNI Wheels (set of 4)$840
POWER STEERING LINE KIT$185
PARKING BRAKE CABLES$165
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)$415
WILWOOD COMPACT MASTER CYLINDER, BLACK$350
SCOTT'S FUEL CAP$94
CHASSIS ASSEMBLYSTANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.$650
CHASSIS CRATINGNEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)$1,350



*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

Scott's Hotrods Build-A-Chassis

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturer’s warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

GM Performance Parts LS Engine Oil Pan 12628771

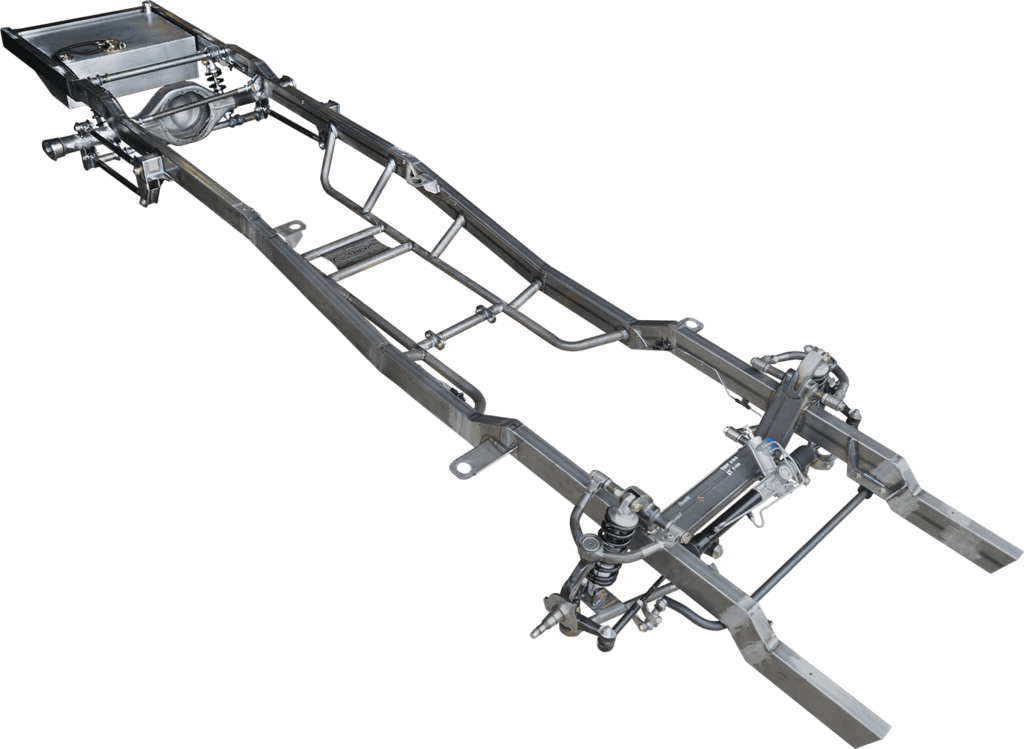

scotts hotrods bumpside long bed chassis
