1928-1931 Ford Model A Chassis Overview

Scott’s Hotrods manufactures one of the most complete 1928-1931 Ford Model A custom chassis available. Every chassis is built specifically around your project rather than produced as a one-size-fits-all frame, allowing your drivetrain, suspension configuration, wheels, tires and desired ride height to become part of the chassis design from the beginning.

At the front, Scott’s Rear Steer IFS features a heavy-duty one-piece 2″x4″x3/16″-wall crossmember, massive 1-1/8″x1/4″-wall DOM Tubular Upper & Lower A-Arms, built-in anti-dive, forged steel spindles and modern rack & pinion steering. Out back, Scott’s 4-Bar suspension uses heavy-duty adjustable DOM link bars, CNC-machined stainless steel rod ends and a Moser Ford 9-inch rear end. The foundation is a set of mandrel-bent 2″x4″x.120-wall frame rails tied together with an 8-point 1-1/2″ DOM tubular center crossmember.

Whether you’re building a 1928 Model A, 1929 Model A, 1930 Model A or 1931 Model A, Scott’s gives your hot rod modern suspension geometry, rack & pinion steering, available modern disc brakes and a rigid chassis engineered for modern roads and modern horsepower.

Scott’s ’28-’31 Ford Model A Coilover Rear Steer Chassis – Starting at $15,750
Scott’s ’28-’31 Ford Model A SuperSlam Rear Steer Chassis – Starting at $16,650

*MORE PRICING INFORMATION IS IN THE NEXT TABS*

Why Rear Steer IFS on a Ford Model A?

This needs its own section because the live page clearly identifies both Model A chassis configurations as Rear Steer, but doesn’t really explain why that’s significant.

Scott’s Hotrods Rear Steer Independent Front Suspension positions the steering rack & pinion behind the front crossmember, making it ideally suited to the packaging and proportions of early Ford hot rods like the 1928-1931 Model A. Rather than adapting a universal suspension system to fit the chassis, Scott’s engineers the front suspension specifically around the application to provide modern steering response, properly designed suspension geometry and a clean installation underneath your Model A.

And this is NOT a Mustang II suspension. Scott’s Rear Steer IFS is a true Independent Front Suspension featuring massive Tubular Upper & Lower A-Arms, a one-piece crossmember, built-in anti-dive, oversized serviceable ball joints and CNC-machined fully adjustable upper A-Arm rod ends. It’s a modern suspension system engineered specifically for the vehicle—not a decades-old Mustang II design adapted to fit your hot rod.

Want Your 1928-1931 Model A to Lay Frame?

This should be one of the strongest sections on the page because the current page offers a dedicated Model A SuperSlam Rear Steer Chassis but barely sells it.

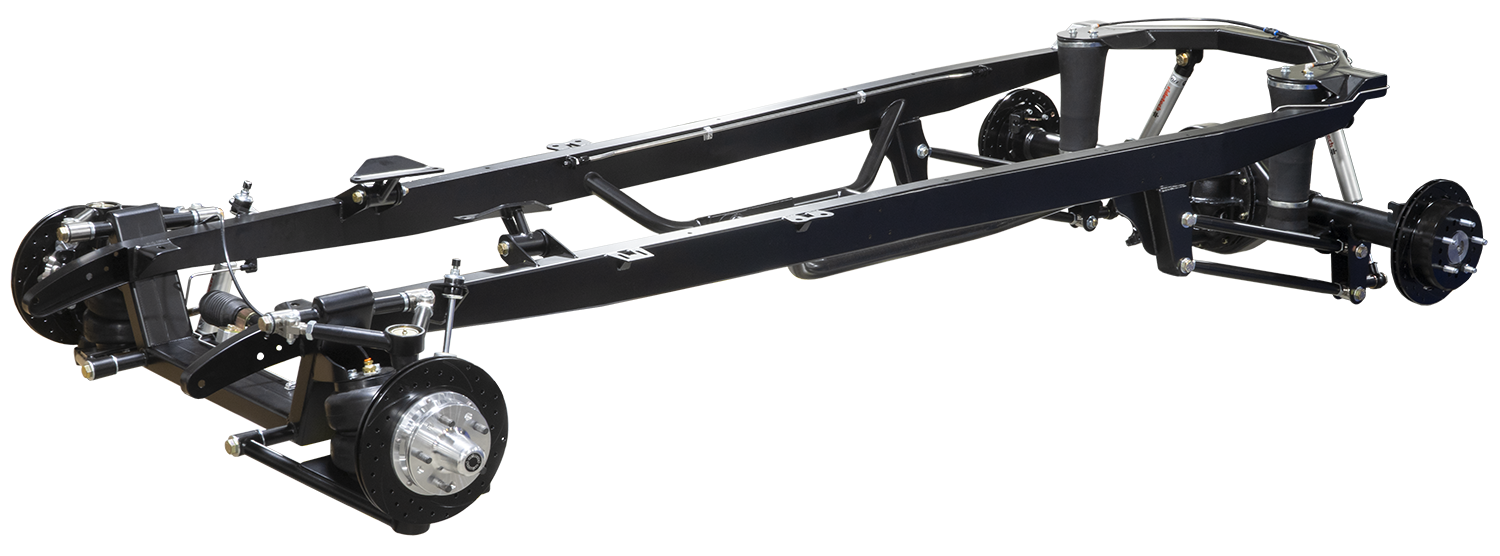

Scott’s Hotrods SuperSlam 1928-1931 Ford Model A Chassis is engineered from the beginning specifically for builders who want an extreme, pavement-hugging stance without treating air suspension as an afterthought. The chassis and suspension are designed around the travel, geometry and packaging necessary to put your Model A down low while still providing a proper driving height when raised.

Combined with Scott’s Rear Steer IFS, rack & pinion steering, 4-Bar rear suspension and Moser Ford 9-inch, the SuperSlam gives your Model A the stance of a radical show car with the engineering of a chassis designed to actually be driven. Whether you’re building a bagged Model A Coupe, Roadster, Sedan or radical custom, air it out at the show, raise it to driving height and hit the road.

Building a Model A Hot Rod, Coupe or Roadster?

The Ford Model A has been at the center of hot rodding for generations, but there’s no rule saying a traditional-looking hot rod has to drive like one built decades ago. Scott’s lets you keep the chopped roof, exposed engine, aggressive rake and unmistakable Model A character while hiding completely modern chassis technology underneath.

From a 1928-1929 Model A Roadster and chopped Coupe to a 1930-1931 Model A Sedan, high-end street rod or completely one-off custom, Scott’s builds the chassis around your vision. Run it low and aggressive on Coilovers or build a pavement-hugging SuperSlam car on airbags. Either way, you get modern IFS, rack & pinion steering, 4-Bar rear suspension, Moser 9-inch strength and a chassis designed to be driven.

SCOTT’S REAR STEER CHASSIS FEATURES

• Fabricated Frame Rails
• Chassis Crossmember
• 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
• 100% TIG-welded
• Scott’s Rear Steer IFS
• Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
• Built-in Anti-Dive
• Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
• Oversized, Serviceable Press-In Ball Joints
• Forged Steel Spindles
• Aldan American Single-Adjustable Coilovers or Airbags & Shocks
• Rear Steer Manual Steering Rack & Pinion
• Scott’s 4-Bar
• 1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
• Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
• 1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
• FK Bearing Heim Joints – RH- & LH-Thread
• Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
• Body Mounts
• All Grade-8 Hardware
• LIFETIME GUARANTEE

Built Around Your Engine & Transmission

Your 1928-1931 Ford Model A doesn’t have to be designed around the limitations of an off-the-shelf chassis. Scott’s can engineer your Model A chassis around everything from traditional Ford power to a modern 5.0L Coyote, Windsor, FE, Y-Block, LS, LT, HEMI or other custom drivetrain combination. Engine placement, transmission fitment, steering clearance, exhaust routing, suspension geometry and ride height are considered as part of the chassis design process.

Whether your vision is a traditional Ford-powered hot rod or a high-horsepower modern street machine, Scott’s built-to-order approach means your chassis is designed around your drivetrain and your project—not the other way around.

Scott's Hotrods Chassis Pricing 2026

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

Scott’s FAQs

*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturer’s warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods Warranty is non-transferable.
