Transform your 1953–1962 Chevrolet Corvette with a completely new Scott’s Hotrods custom chassis engineered specifically for the first-generation C1 Corvette. Whether you’re building a classic cruiser, high-performance restomod, Pro-Touring Corvette or an ultra-low custom, every Scott’s C1 Corvette chassis is Built-To-Order around your vehicle, drivetrain, suspension, wheels, tires and desired ride height.
This isn’t a universal frame or a modified stock Corvette chassis. Scott’s builds each 1953–1962 C1 Corvette chassis specifically for the application using our proprietary Independent Front Suspension, Equal-Length Parallel 4-Bar rear suspension, mandrel-bent frame rails and heavy-duty suspension components engineered for modern handling, braking and ride quality.
Every Scott’s C1 Corvette chassis is built around the specifications of the car it will ultimately go underneath.
Your engine, transmission, wheel and tire combination, brake package, steering configuration, suspension choice and desired ride height are considered before the chassis is manufactured. Engine and transmission mounts can be positioned for your drivetrain, while suspension and chassis configuration can be tailored around how you intend to use the Corvette.
From a mild small-block cruiser to an LS- or LT-powered restomod, Scott’s builds the chassis around your Corvette and your goals rather than forcing your build to conform to a generic frame.
Scott’s Coilover ’53-’62 Corvette Chassis – Starting at $14,750
Scott’s SuperSlam ’53-’62 Corvette Chassis – Starting at $15,650
*MORE PRICING INFORMATION IS IN THE NEXT TABS*
SCOTT’S CHASSIS FEATURES
Mandrel Bent 2”x4”x.120-wall tube frame rails
1″x3″ Chassis Crossmember
1-piece 2”x4”x3/16”-wall tube IFS Crossmember
100% TIG-welded

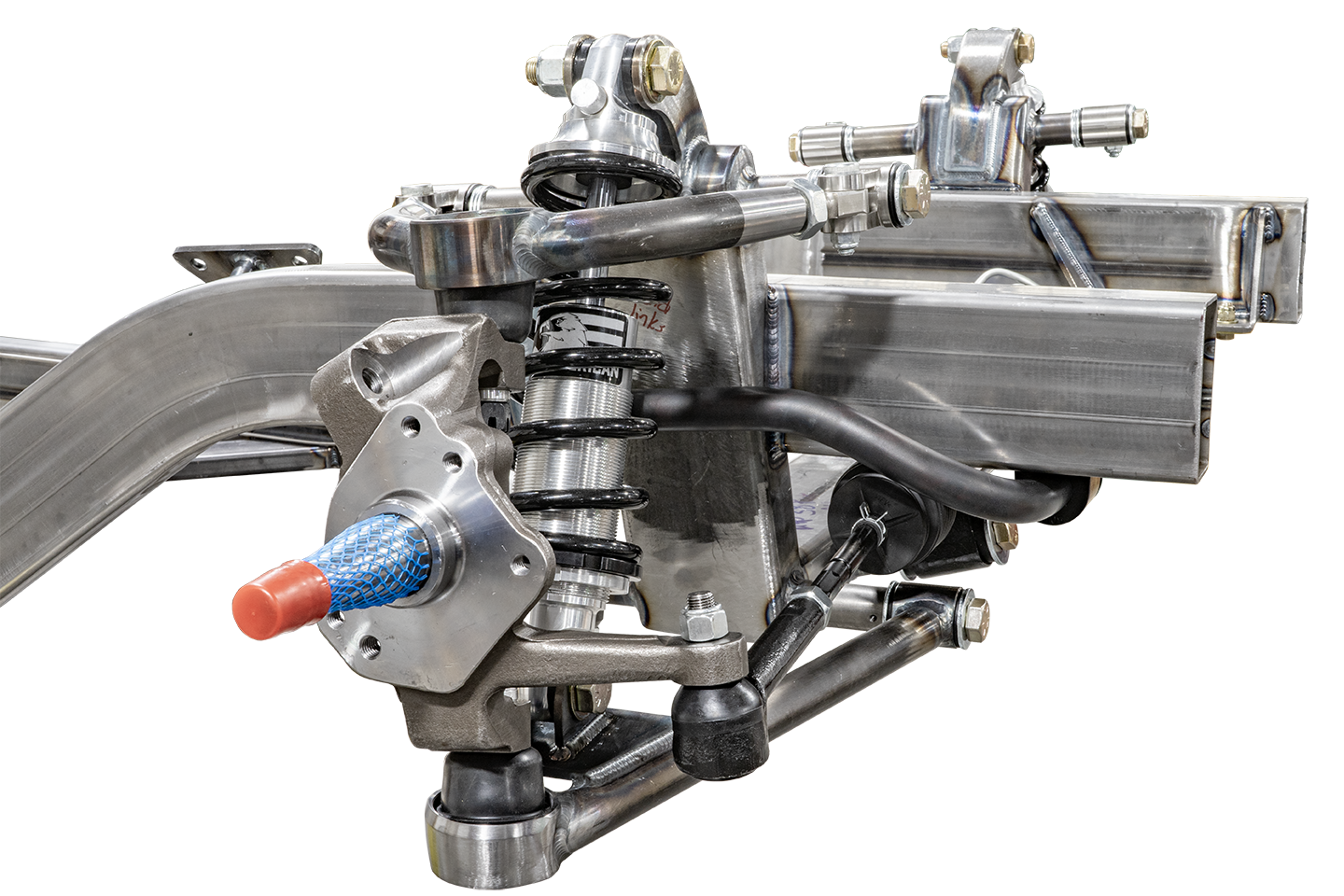

Scott’s IFS
Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
Built-in Anti-Dive
Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
Oversized, Serviceable Press-In Ball Joints
Standard or Drop Forged Steel Spindles
Aldan American Single-Adjustable Coilovers or Airbags & Shocks
Manual Steering Rack & Pinion

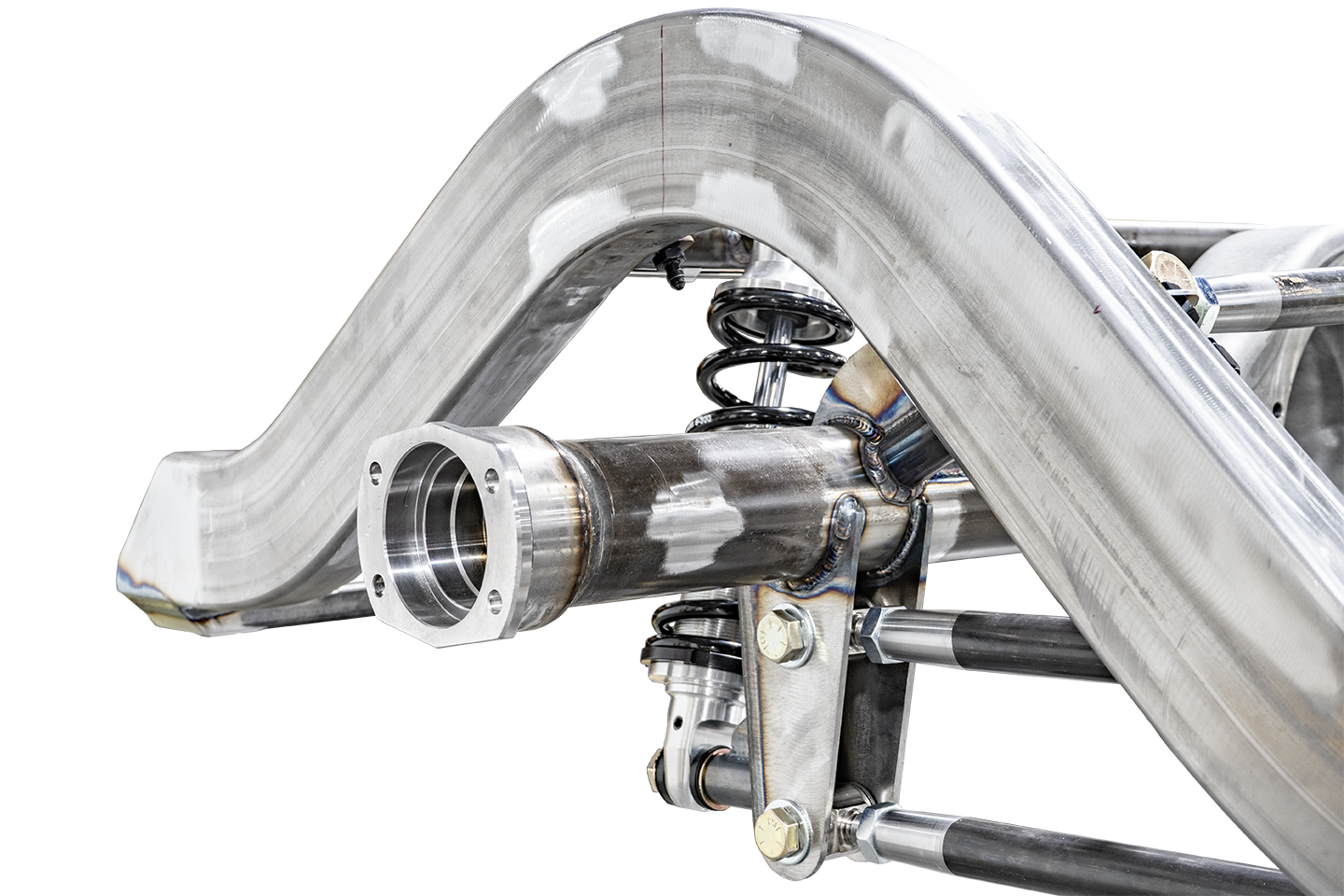

Scott’s 4-Bar
1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
FK Bearing Heim Joints – RH- & LH-Thread
Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
Body Mounts
All Grade-8 Hardware
LIFETIME GUARANTEE
From Bare Chassis to Complete Roller
Scott’s can configure your 1953–1962 Corvette chassis with substantially more than the basic frame and suspension package.
Available upgrades include Wilwood disc brakes, power rack & pinion steering, performance coilovers, sway bars, Moser rear-end upgrades, Watt’s Link, custom aluminum fuel tank, in-tank fuel pump, stainless steel fuel lines, stainless steel brake lines, steering linkage and more.
This allows your chassis to arrive much closer to a complete foundation for the build, reducing the number of components that need to be sourced, engineered and adapted separately.
Scott's Hotrods Chassis Pricing 2026
ITEM/UPGRADE
DESCRIPTION
PRICE
COILOVER CHASSIS
COILOVER CHASSIS
$14,750
SUPERSLAM CHASSIS
SUPERSLAM CHASSIS
$15,650
REAR STEER CHASSIS
ADD
$1,000
LONG BED TRUCK
ADD
$1,500
COILOVERS
Aldan American Single-Adjustable
$0
RideTech Single-Adjustable
$1,650
Aldan American Double-Adjustable
$1,000
RideTech Triple-Adjustable
$3,800
RACK & PINION
Power
$330
Power Rear Steer
$990
SWAY BAR
1" Solid Sway Bar
$390
Torsion Spline Sway Bar, FRONT
$840
Torsion Spline Sway Bar, FRONT & REAR
$1,680
MOTOR MOUNTS
FORD MODULAR, 4.6, 5.4, 5.0
$303
SBF, WINDOSR
$204
BBF, 390, 427, 428
$204
BBF, 429, 460
$204
LT
$277
LS
$204
FORD, Y-BLOCK
$204
SBC
$185
BBC
$185
318, 360, MOPAR, EARLY
$216
352, 392, MOPAR, HEMI
$260
318, 360, MOPAR, LATE
$216
426, MOPAR, HEMI
$260
HELLCAT, MOPAR
$216
440, MOPAR
$216
5.7, 6.1, MOPAR, HEMI
$216
TRANSMISSION
TRANS MOUNT
$400
SPINDLES
WILWOOD PRO
$430
PRO M2 HUB*
$650
BRAKES (1/2"-20 STUDS)
11" D&S Wilwood Kit, Red or Black
$2,411
12" D&S Wilwood Kit, Red or Black
$2,525
13" D&S Wilwood Kit, Red or Black
$4,452
14" D&S Wilwood Kit, Red or Black
$4,846
14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,235
15" & 14" D&S Wilwood Kit, Red or Black, AERO, PRO*
$5,399
15" & 14" Slotted Wilwood Kit, Red or Black, AERO, PRO*
$5,261
PRO M2 HUB*
12" D&S Wilwood Kit, Red or Black
$2,436
12" D&S Wilwood Kit, Red or Black 6-PISTON
$2,654
13" D&S Wilwood Kit, Red or Black
$4,332
14" D&S Wilwood Kit, Red or Black
$4,698
14" D&S Wilwood Kit, Red or Black, AERO
$5,141
15" & 14" D&S Wilwood Kit, Red or Black, AERO
$5,282
15" & 14" Slotted Wilwood Kit, Red or Black, AERO
$5,282
ALUMINUM FUEL TANK
TANK +SENDER
$1,125
TANK +SENDER +PA-4 PUMP
$1,501
TANK +SENDER +PA-6 PUMP
$1,531
TANK +SENDER +PA-8 PUMP
$1,561
TANK +SENDER +PA-9 PUMP
$1,591
FUEL LINES - STAINLESS STEEL
FEED -6AN 3/8" HARDLINE
$860
FEED -6AN & RETURN -6AN 3/8" HARDLINE
$1,415
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE
$1,600
FEED -8AN & RETURN -8AN 1/2" HARDLINE
$1,815
BRAKE LINES - STAINLESS STEEL
STAINLESS BRAKE LINES +FLEX LINES
$1,290
REAR END
MOSER M9 FAB, 35-SPLINE
$225
BACK BRACE
$250
FULL-FLOATER 31-spline, FAB Housing, Back Brace
$2,500
WATT'S LINK
$1,155
WaveTrac 3rd member (31 or 35-spline)
$2,160
Powder Coated 3rd Member
$120
REM FINISH Gears
$165
POWDER COATING
CHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.
$3,300
ACCESSORIES
GUNI Wheels (set of 4)
$840
POWER STEERING LINE KIT
$185
PARKING BRAKE CABLES
$170
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)
$425
WILWOOD COMPACT MASTER CYLINDER, BLACK w/combo valve
$520
SCOTT'S FUEL CAP
$94
CHASSIS ASSEMBLY
STANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES
$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.
$650
CHASSIS CRATING
NEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)
$1,350
Some modifications to the Chevrolet Corvette floor are required to accept a Scott’s Chassis.
A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.
We stand behind ALL of the parts we manufacture. Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties. We are not responsible for these items outside of their original warranty.
All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.
Every Scott’s C1 Corvette chassis is manufactured in-house in Knoxville, Tennessee using American-sourced materials and components wherever possible.
The foundation begins with mandrel-bent 2″x4″x.120-wall frame rails, a one-piece heavy-duty IFS crossmember and 100% TIG-welded construction.
Whether you’re building a beautifully restored-looking C1 with modern road manners or a high-horsepower Corvette restomod capable of embarrassing much newer cars, the chassis underneath it should be engineered for the way you intend to drive it.

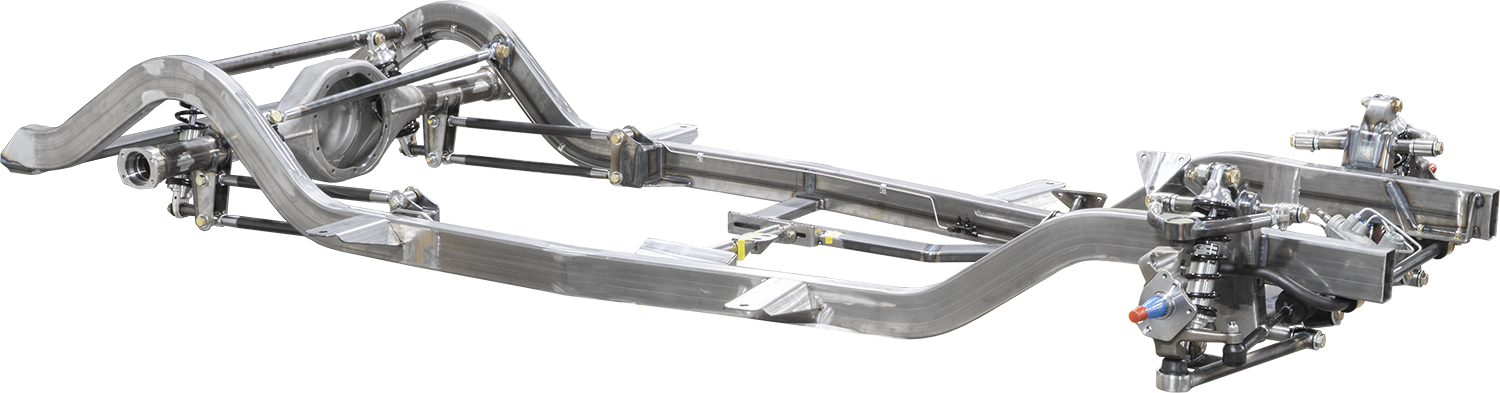

New Mandrel Bent Chevrolet Corvette Coilover Chassis
Give Your C1 Corvette the Chassis It Deserves
The 1953–1962 Chevrolet Corvette is one of the most recognizable American sports cars ever built. Its styling is timeless. Its original chassis technology doesn’t have to be.
A Scott’s Hotrods C1 Corvette Custom Chassis combines the unmistakable character of the original Corvette with modern suspension geometry, rack & pinion steering, four-wheel disc brake capability and a heavy-duty rear suspension designed for today’s performance expectations.
With Scott’s proprietary IFS, Equal-Length Parallel 4-Bar rear suspension, Moser Ford 9-inch rear end, mandrel-bent frame rails and 100% TIG-welded construction, your Corvette gets a completely new foundation Built-To-Order specifically for your project.
From a comfortable 1953–1962 Corvette cruiser to an LS/LT-powered restomod, Pro-Touring build or ground-hugging SuperSlam C1, Scott’s builds the chassis around the Corvette you want to create.
Ready to build yours? Request a quote for your 1953–1962 C1 Corvette chassis.
Scott’s Hotrods 1953-1962 C1 Chevrolet Corvette Chassis
