Why is Scott’s Hotrods’
1988-1998 OBS Chassis Different?

Every Scott’s Hotrods 1988-1998 Chevy OBS truck chassis is engineered specifically for your truck—not adapted from a universal design. Built-to-order using premium American-sourced materials, each chassis is CNC machined, precision fabricated, and 100% TIG welded in-house to deliver modern handling, exceptional strength, and outstanding ride quality. Featuring our vehicle-specific Independent Front Suspension, parallel 4-Bar rear suspension, and performance-driven suspension geometry, every Scott’s chassis is designed to transform your OBS Chevy truck into a high-performance street machine that’s as enjoyable to drive as it is to show.

Scott’s Hotrods 1988-1998 OBS Chassis

Transform your 1988-1998 Chevy or GMC OBS truck with a Scott’s Hotrods built-to-order chassis. Engineered specifically for the OBS platform, every chassis delivers modern handling, exceptional ride quality, and the strength to support everything from a dependable daily driver and street cruiser to a high-horsepower Pro Touring or award-winning show truck.



Chassis 1988-1998 OBS Truck
Ride Height Coilover (You Pick the Height) or Lay Frame 100% SuperSlam
Suspension A-Arm IFS & Equal-Length Parallel 4-Bar
Rear End Moser Ford 9″
Built Knoxville, Tennessee
Warranty Limited Lifetime
Build Time Built-To-Order



Scott’s Coilover ’88-’98 Chevy/GMC OBS Truck Chassis – Starting at $14,750
Scott’s SuperSlam ’88-’98 Chevy/GMC OBS Truck Chassis – Starting at $15,650

*MORE PRICING INFORMATION IS IN THE NEXT TABS*

Every Scott’s chassis is designed, engineered, CNC machined, fabricated, and TIG welded in-house in Knoxville, Tennessee by the same team that has built multiple AMBR winners, SEMA award winners, and Goodguys Truck of the Year-winning vehicles.

SCOTT’S CHASSIS FEATURES

  • Mandrel Bent 2”x4”x.120-wall tube frame rails
  • 8-Point 1-1/2” DOM tubular Chassis Crossmember
  • 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
  • 100% TIG-welded

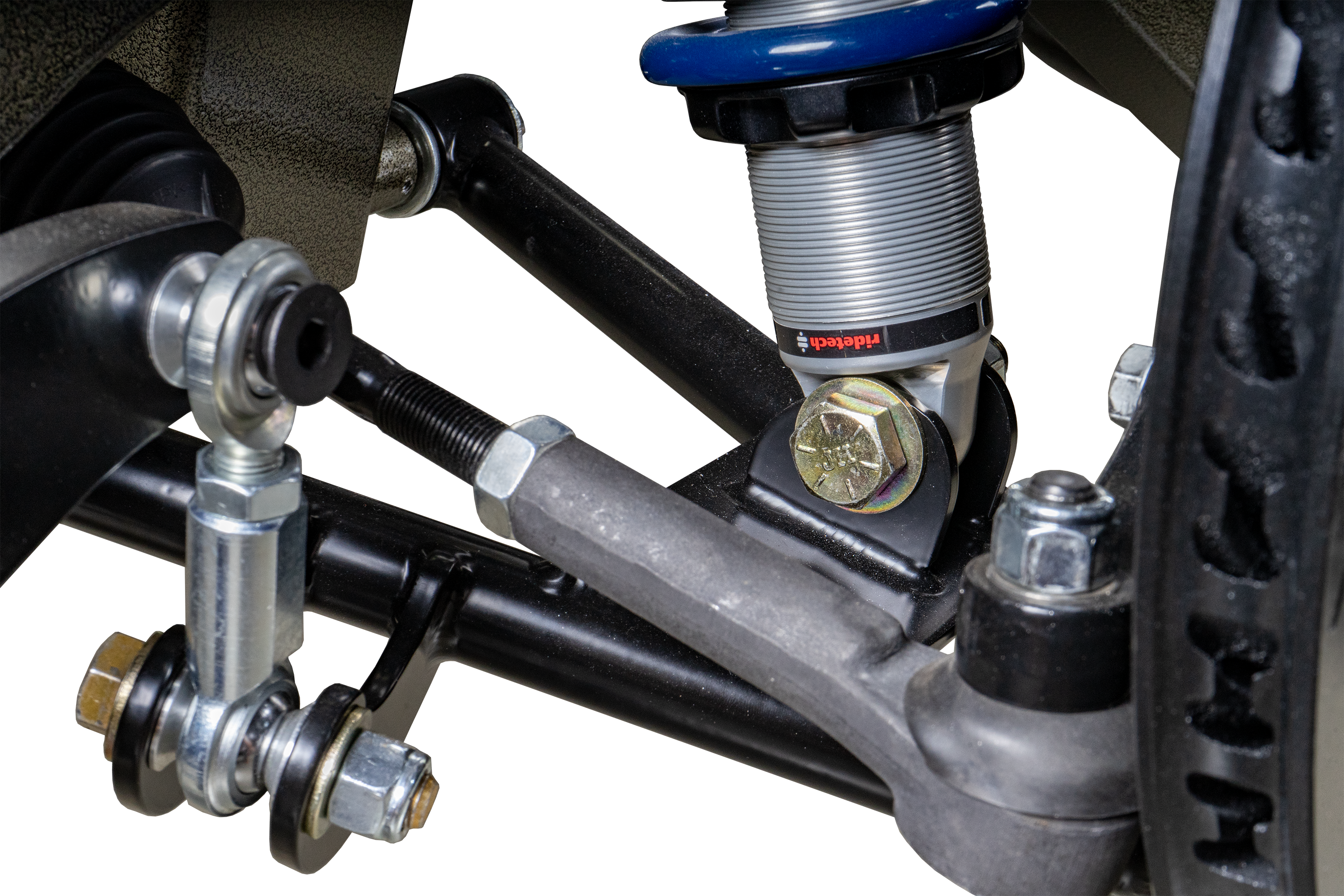

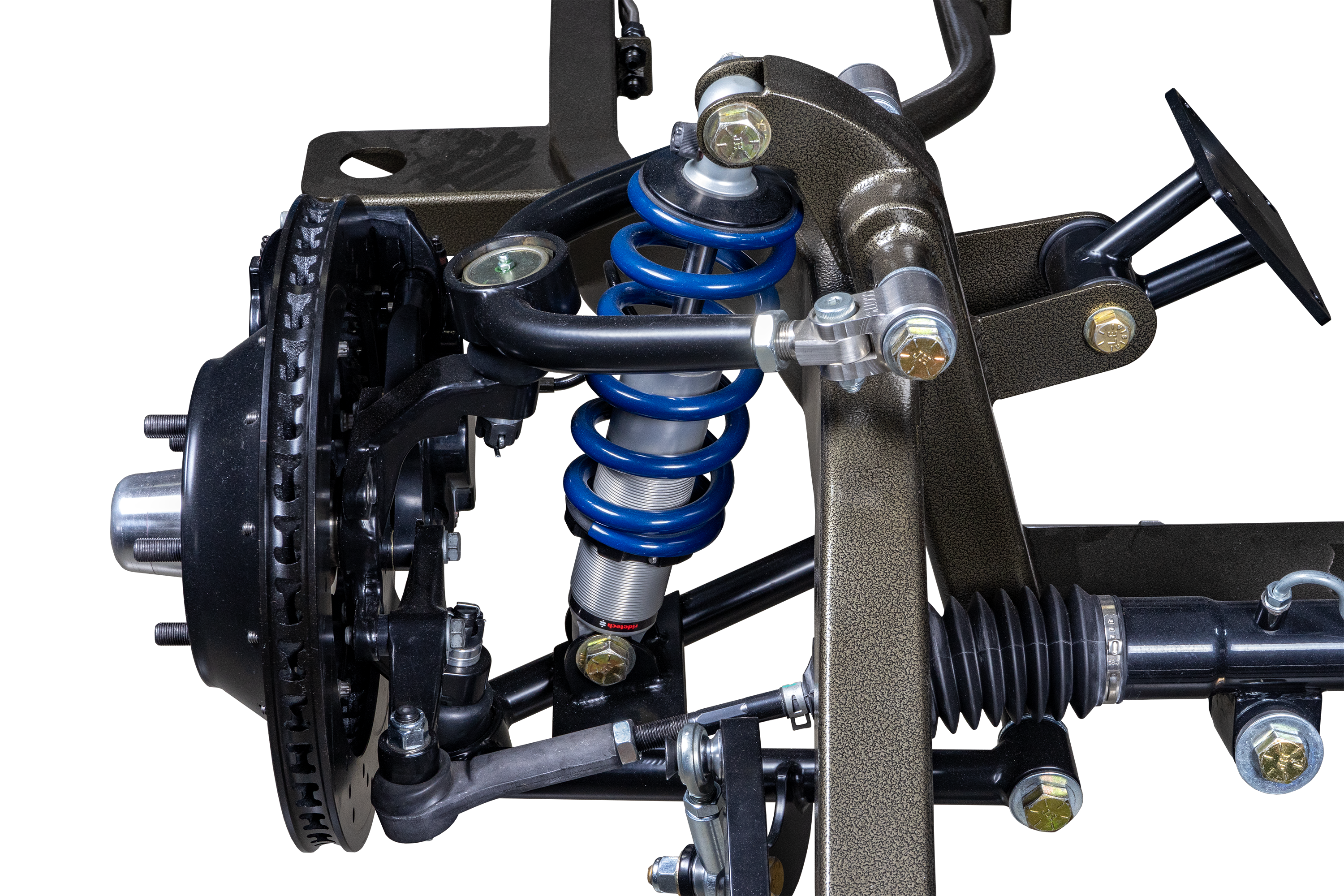

  • Scott’s IFS

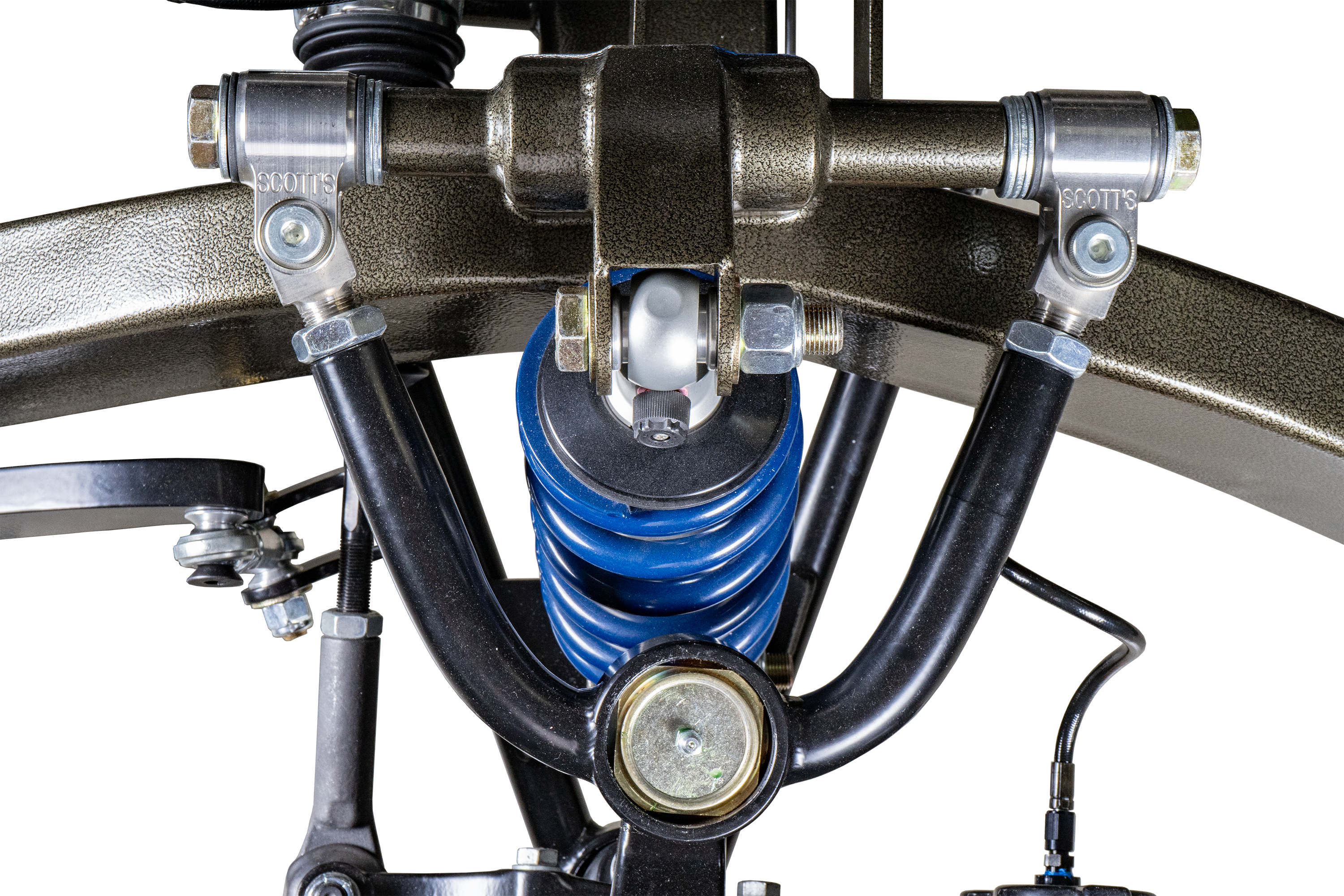

  • Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
  • Built-in Anti-Dive
  • Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
  • Oversized, Serviceable Press-In Ball Joints
  • Standard or Drop Forged Steel Spindles
  • Aldan American Single-Adjustable Coilovers or Airbags & Shocks
  • Manual Steering Rack & Pinion

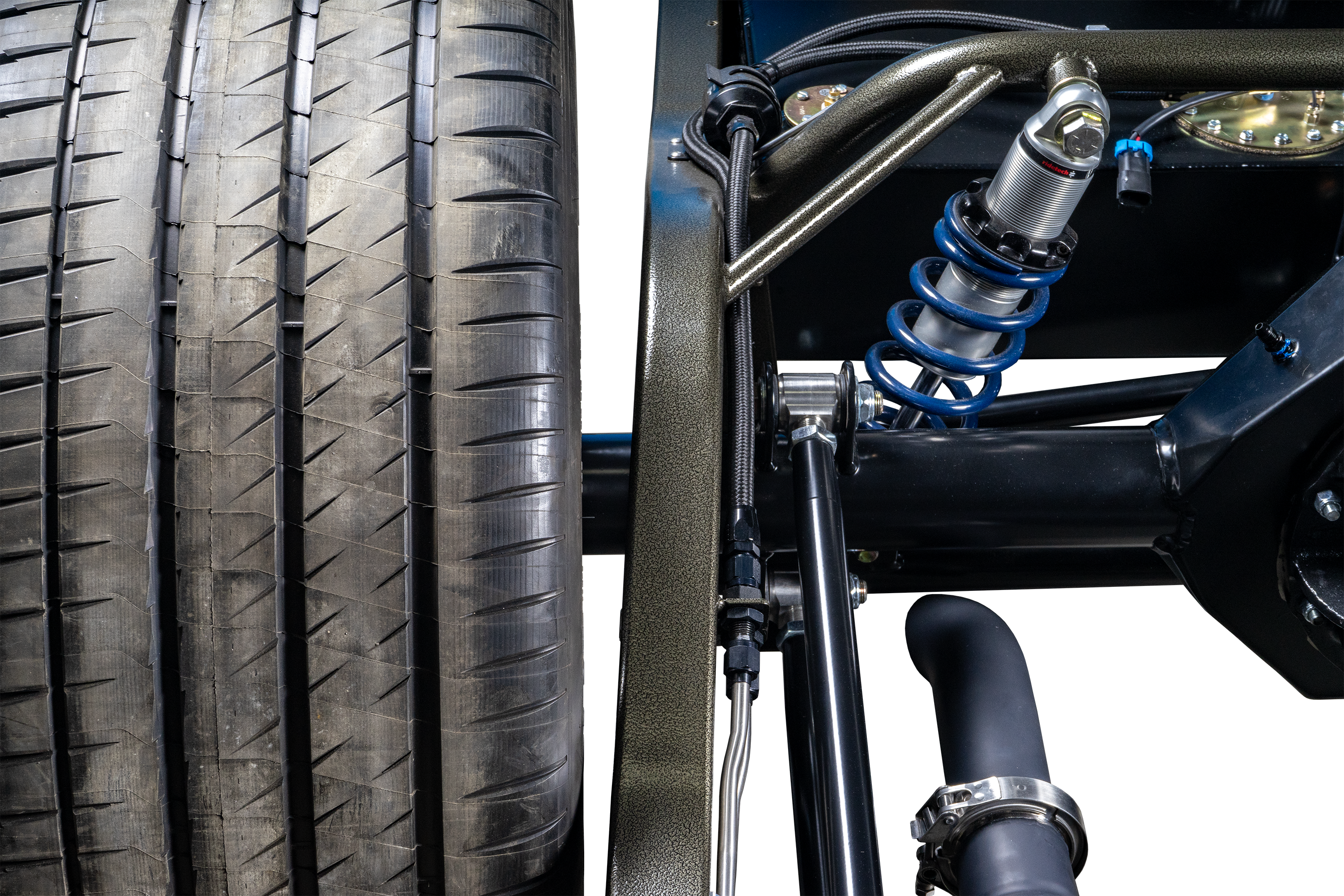

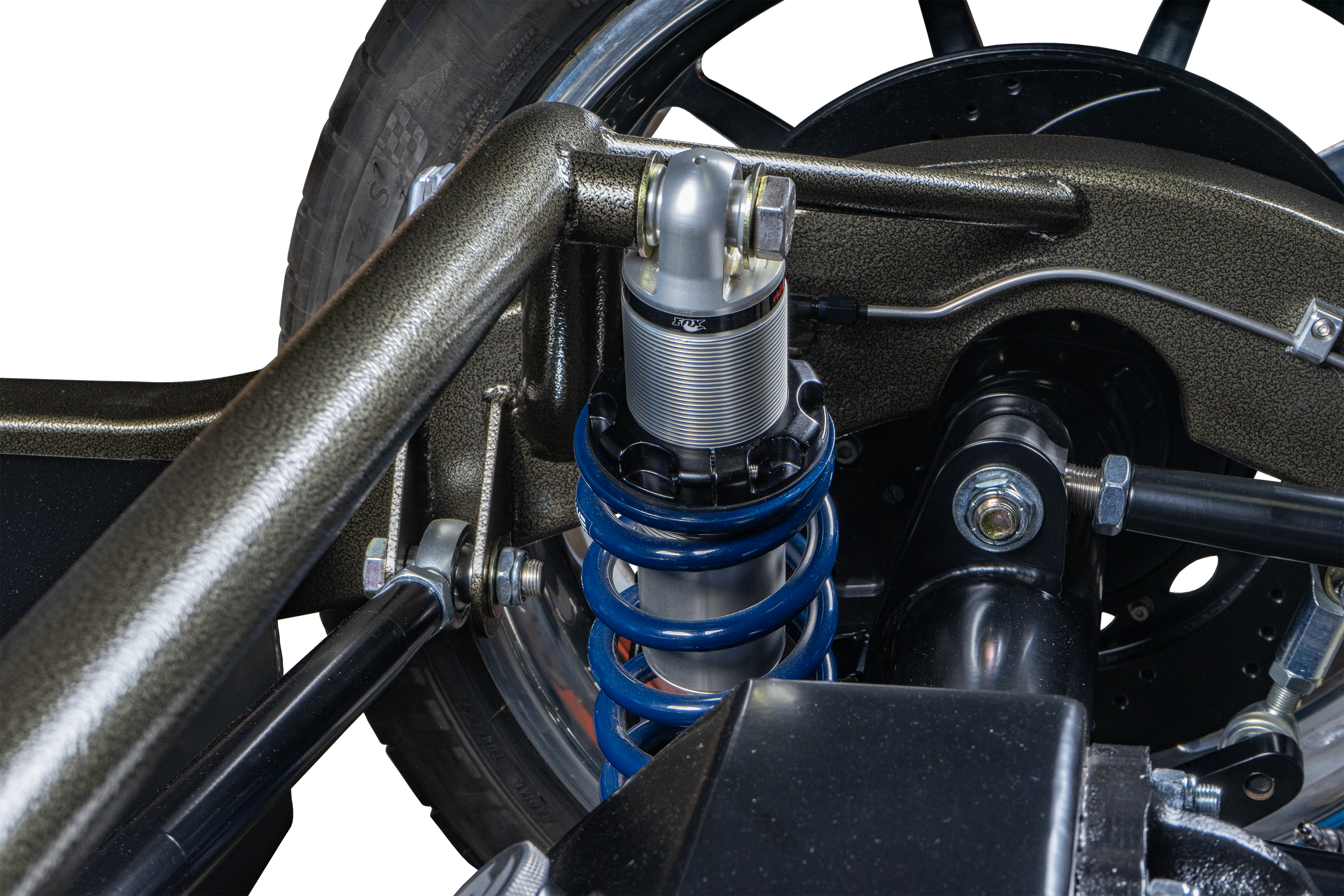

  • Scott’s 4-Bar
  • 1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
  • Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
  • 1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
  • FK Bearing Heim Joints – RH- & LH-Thread

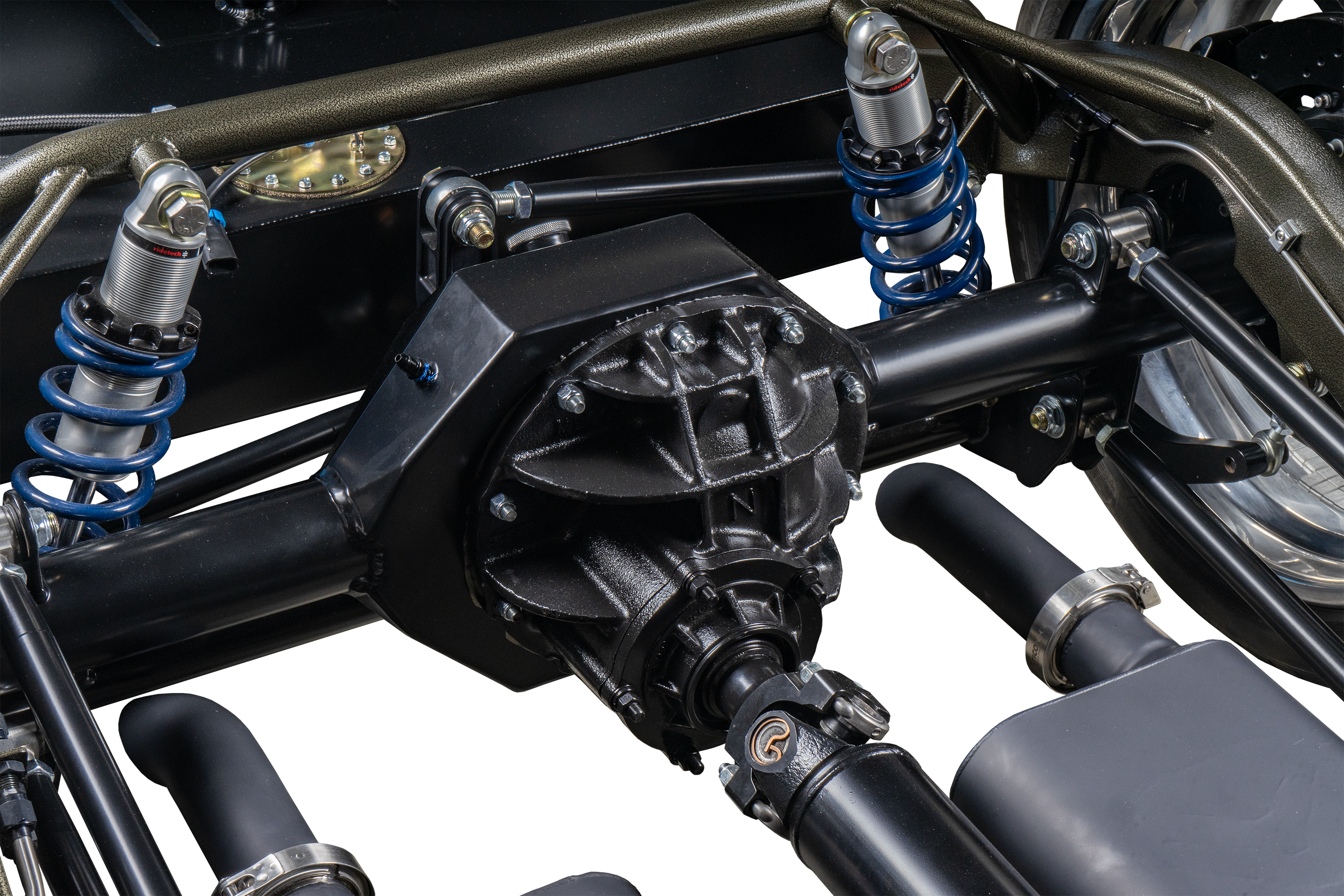

  • Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
  • Body Mounts
  • All Grade-8 Hardware
  • LIFETIME GUARANTEE



Scott's Hotrods Chassis Pricing 2026

ITEM/UPGRADEDESCRIPTIONPRICE
COILOVER CHASSISCOILOVER CHASSIS$14,750
SUPERSLAM CHASSISSUPERSLAM CHASSIS$15,650
REAR STEER CHASSISADD$1,000
LONG BED TRUCKADD$1,500
COILOVERSAldan American Single-Adjustable$0
RideTech Single-Adjustable$1,650
Aldan American Double-Adjustable$1,000
RideTech Triple-Adjustable$3,800
RACK & PINIONPower$330
Power Rear Steer$990
SWAY BAR1" Solid Sway Bar$390
Torsion Spline Sway Bar, FRONT$840
Torsion Spline Sway Bar, FRONT & REAR$1,680
MOTOR MOUNTSFORD MODULAR, 4.6, 5.4, 5.0$303
SBF, WINDOSR$204
BBF, 390, 427, 428$204
BBF, 429, 460$204
LT$277
LS$204
FORD, Y-BLOCK$204
SBC$185
BBC$185
318, 360, MOPAR, EARLY$216
352, 392, MOPAR, HEMI$260
318, 360, MOPAR, LATE$216
426, MOPAR, HEMI$260
HELLCAT, MOPAR$216
440, MOPAR$216
5.7, 6.1, MOPAR, HEMI$216
TRANSMISSIONTRANS MOUNT$400
SPINDLESWILWOOD PRO$430
PRO M2 HUB*$650
BRAKES (1/2"-20 STUDS)11" D&S Wilwood Kit, Red or Black$2,411
12" D&S Wilwood Kit, Red or Black$2,525
13" D&S Wilwood Kit, Red or Black$4,452
14" D&S Wilwood Kit, Red or Black$4,846
14" D&S Wilwood Kit, Red or Black, AERO, PRO*$5,235
15" & 14" D&S Wilwood Kit, Red or Black, AERO, PRO*$5,399
15" & 14" Slotted Wilwood Kit, Red or Black, AERO, PRO*$5,261
PRO M2 HUB*12" D&S Wilwood Kit, Red or Black$2,436
12" D&S Wilwood Kit, Red or Black 6-PISTON$2,654
13" D&S Wilwood Kit, Red or Black$4,332
14" D&S Wilwood Kit, Red or Black$4,698
14" D&S Wilwood Kit, Red or Black, AERO$5,141
15" & 14" D&S Wilwood Kit, Red or Black, AERO$5,282
15" & 14" Slotted Wilwood Kit, Red or Black, AERO$5,282
ALUMINUM FUEL TANKTANK +SENDER$1,125
TANK +SENDER +PA-4 PUMP$1,501
TANK +SENDER +PA-6 PUMP$1,531
TANK +SENDER +PA-8 PUMP$1,561
TANK +SENDER +PA-9 PUMP$1,591
FUEL LINES - STAINLESS STEELFEED -6AN 3/8" HARDLINE$860
FEED -6AN & RETURN -6AN 3/8" HARDLINE$1,415
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE$1,600
FEED -8AN & RETURN -8AN 1/2" HARDLINE$1,815
BRAKE LINES - STAINLESS STEELSTAINLESS BRAKE LINES +FLEX LINES$1,290
REAR ENDMOSER M9 FAB, 35-SPLINE $225
BACK BRACE$250
FULL-FLOATER 31-spline, FAB Housing, Back Brace$2,500
WATT'S LINK $1,155
WaveTrac 3rd member (31 or 35-spline)$2,160
Powder Coated 3rd Member$120
REM FINISH Gears$165
POWDER COATINGCHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.$3,300
ACCESSORIESGUNI Wheels (set of 4)$840
POWER STEERING LINE KIT$185
PARKING BRAKE CABLES$170
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)$425
WILWOOD COMPACT MASTER CYLINDER, BLACK$350
SCOTT'S FUEL CAP$94
CHASSIS ASSEMBLYSTANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.$650
CHASSIS CRATINGNEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)$1,350



*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

Need help configuring your chassis?

✔ Engine

✔ Transmission

✔ Ride Height

✔ Wheel Size

✔ Rear End

Talk with a Scott’s chassis specialist: 865-951-2081

Scott's Hotrods Build-A-Chassis

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturer’s warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods Warranty is non-transferable.

GM Performance Parts LS Engine Oil Pan 12628771
Holley 302-2 LS Swap Pan

Borgeson Steering Linkage Kit

Scott’s Hotrods Power Steering Line Kit





Mandrel-Bent OBS Coilover Chassis - LOW Ride Height

Scott’s Hotrods OBS Chassis Highlights

Built-In Anti-Dive

Reduces front-end dive during braking for more confidence and better control.

One-Piece Crossmember

Eliminates weak bolt-together designs while increasing chassis rigidity.

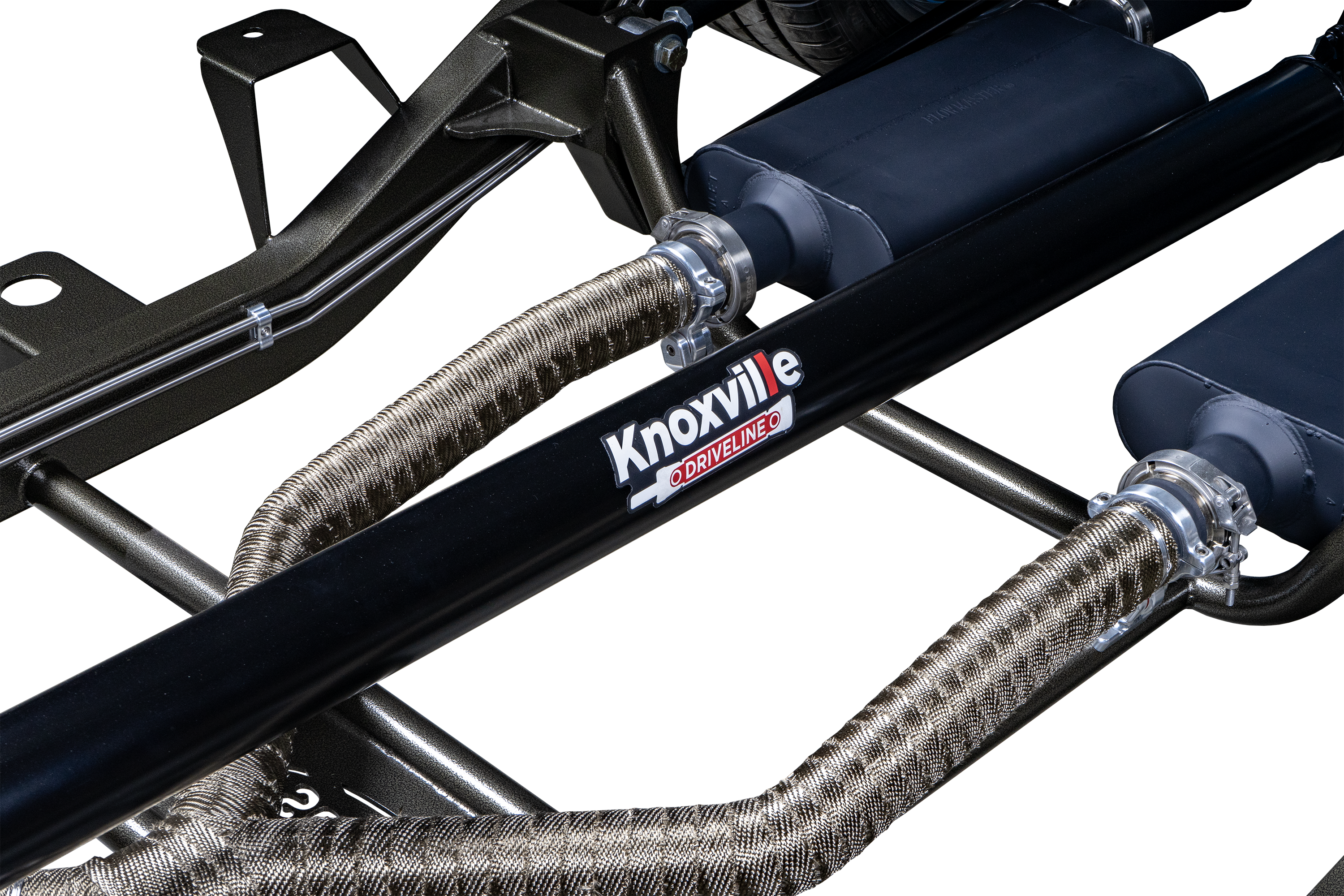

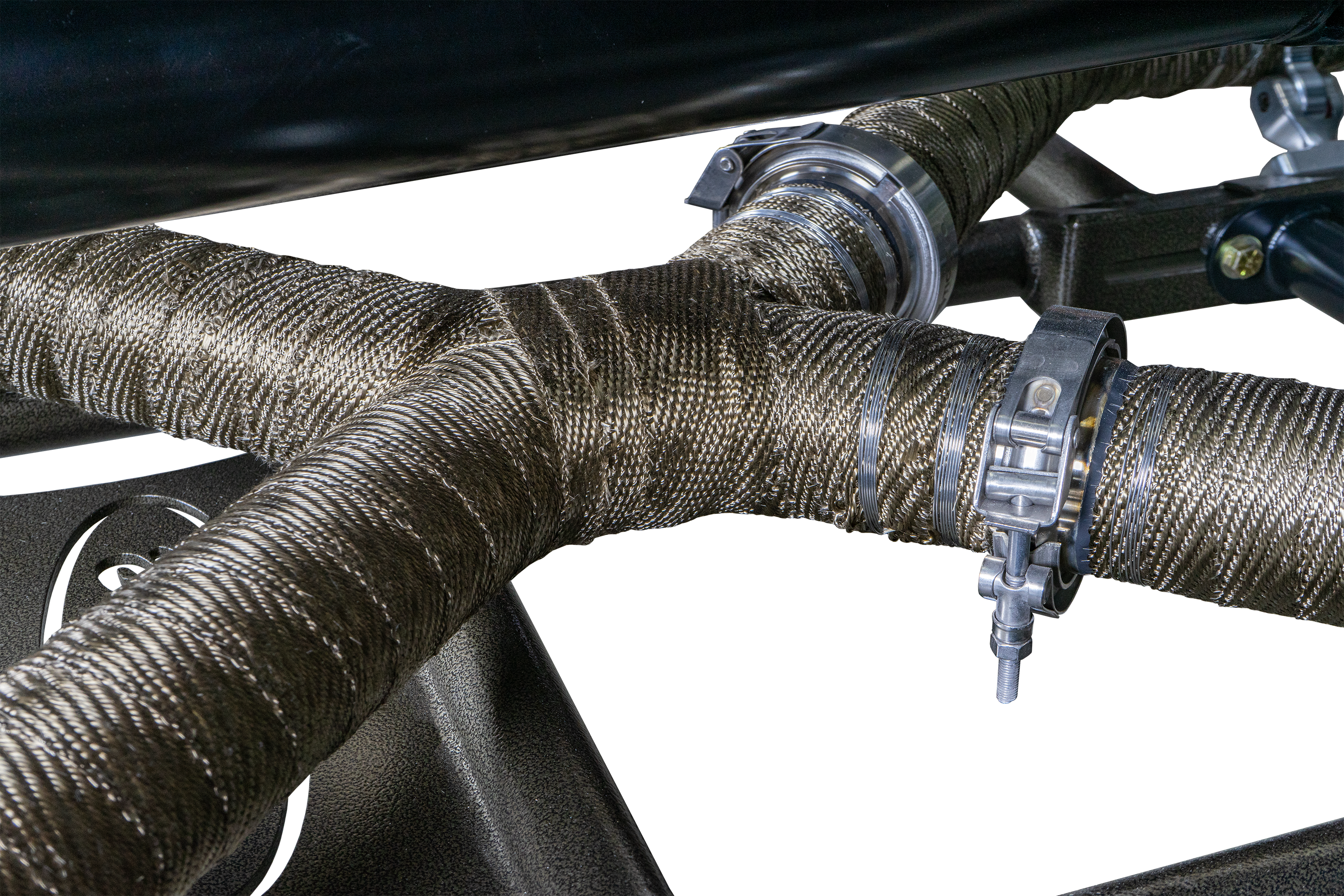

8-Point Round Tube Chassis X-member

Leaves room for exhaust while tying the chassis together, providing rigidity.

Vehicle-Specific Geometry

Designed specifically for the 1988-1998 OBS Trucks—not adapted from a universal suspension.

Custom Ride Height

You tell us how low you want your OBS Truck and we build the chassis accordingly.



Chassis Features Scott’s Typical Competitor
100% Built-To-Order ✔ ✖
100% Vehicle-Specific ✔ Sometimes
100% TIG Welded ✔ Usually MIG
The MOST Options ✔ Not Even Close
One-Piece IFS Crossmember ✔ Varies
Custom Track Width at no cost ✔ Sometimes
American Sourced Materials ✔ Varies
Equal Length Parallel 4-Bar ✔ Varies
Mandrel Bent Frame Rails ✔ Rare
Lifetime Warranty ✔ Limited



OBS Truck Chassis FAQs

  • Does it fit long beds?
    • YES! Scott’s Hotrods will build you a Long Bed, Extended Cab or Crew Cab Truck
  • Can I run a big block?
    • YES! Whatever motor you want to run in your OBS
  • Does it work with LS engines?
    • YES! LS Swap the World!
  • Coilovers or airbags?
    • We can set up your OBS with whatever ride height you want on Coilovers or lay it out on Airbags
  • Can I use stock sheet metal?
    • YES! Our OBS Chassis can be installed without any vehicle modifications, but it depends on how low you want to go.
  • What rear end comes standard?
    • Moser Ford 9″ with 31-spline axles
  • What wheel sizes fit?
    • Whatever wheels you want to run, you tell us.  Typically, 20×8.5″ Front and 20×10″ Rear
  • How long is build time?
    • It only takes about 7 days to build a complete chassis, but the Chassis Order List varies.
  • Does it require welding?
    • NOPE
  • Can it lay frame?
    • Scott’s Hotrods SuperSlam OBS Chassis will lay frame 100%.  Inner Fedners, Trans & Driveshaft Tunnel, Bed and Rear Tubs require modification.

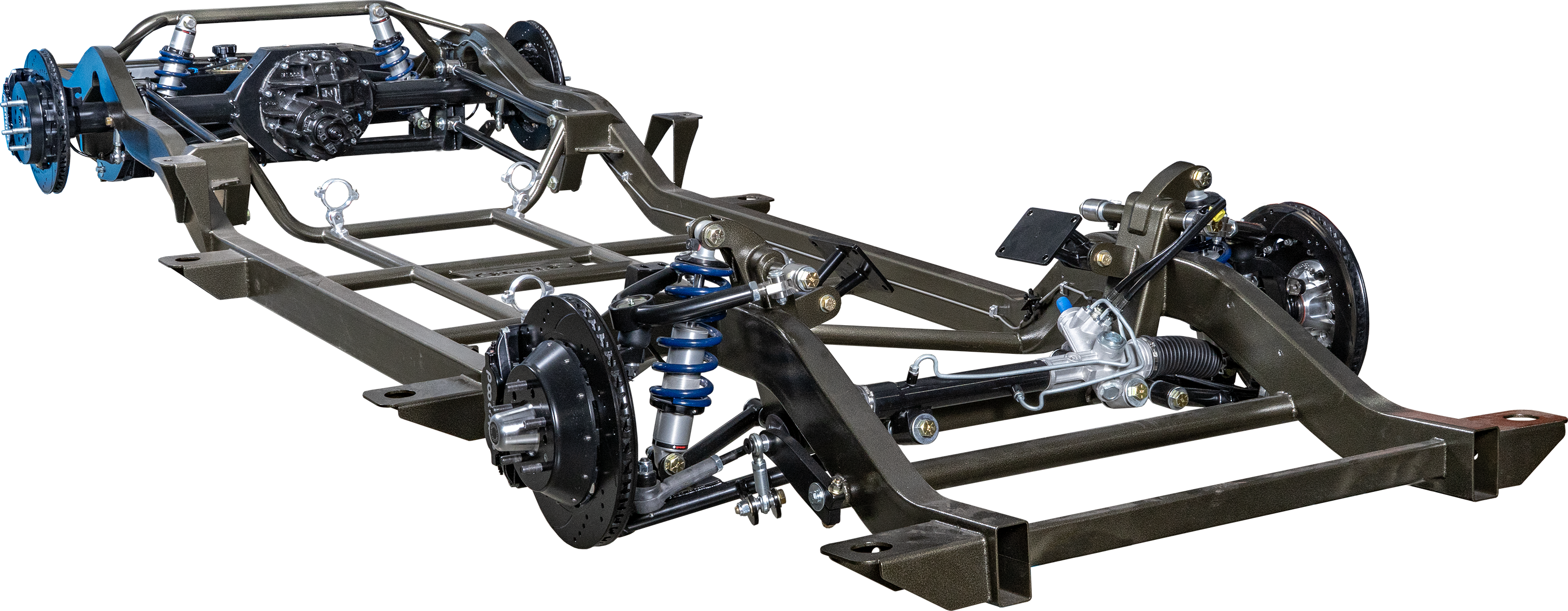

scotts hotrods chevrolet gmc obs coilover truck chassis

👆This Chassis is Under 👇 this OBS Truck

Triple Crown of Rodding 2025 1988-1998 Truck of the Year Scott's Hotrods Big Papa

Scott’s Hotrods 1988-1998 OBS Chassis

Designed specifically for the 1988-1998 GM GMT400 platform

scotts hotrods 1988-1998 obs chassis
