1995 Chevrolet OBS Single Cab Short Bed – Custom Truck Build

Brian Wojcik’s 1995 Chevy OBS Project

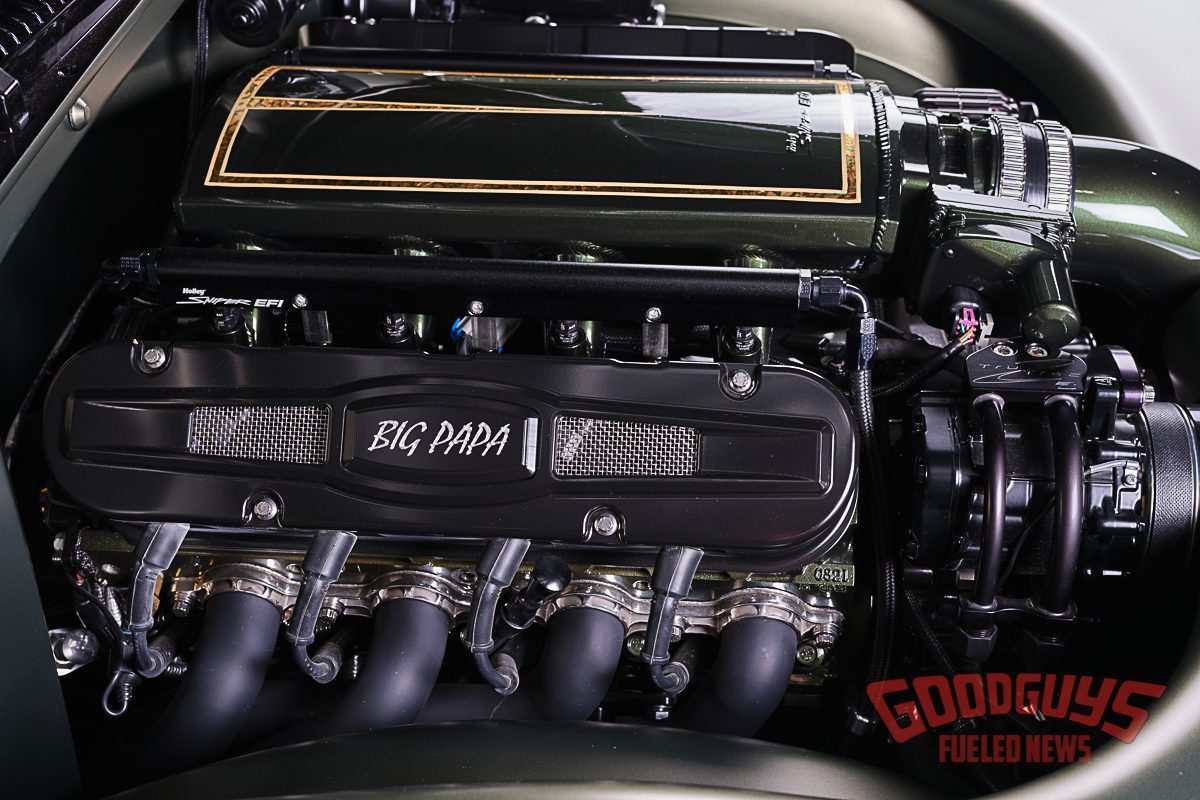

“BIG PAPA”

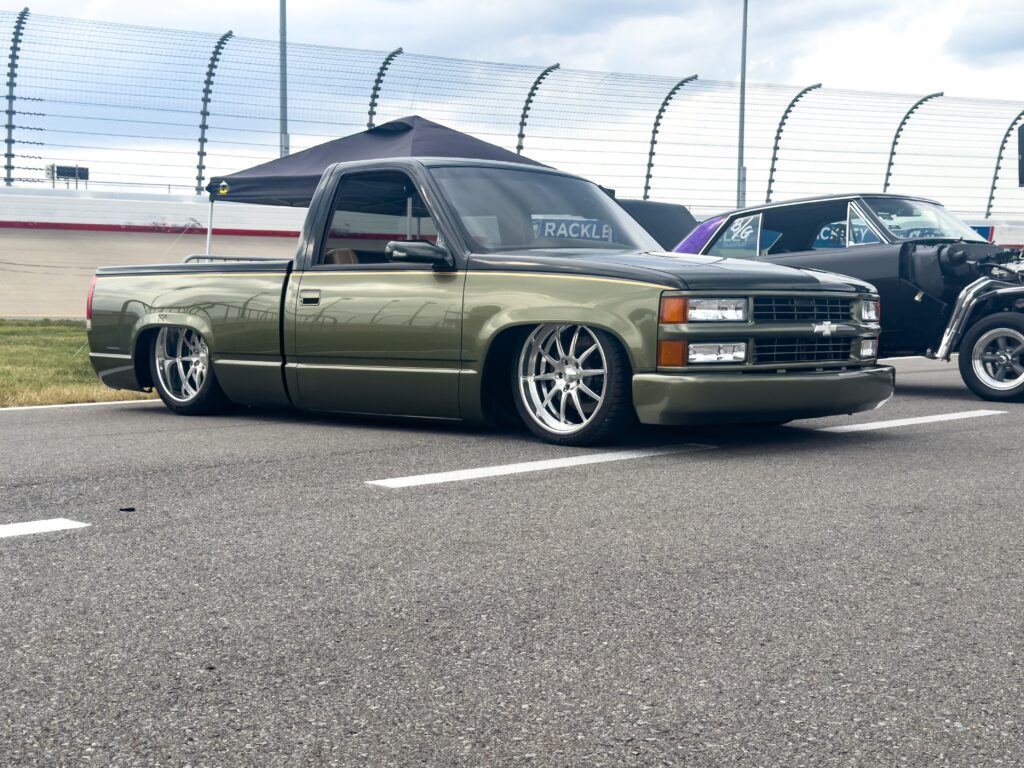

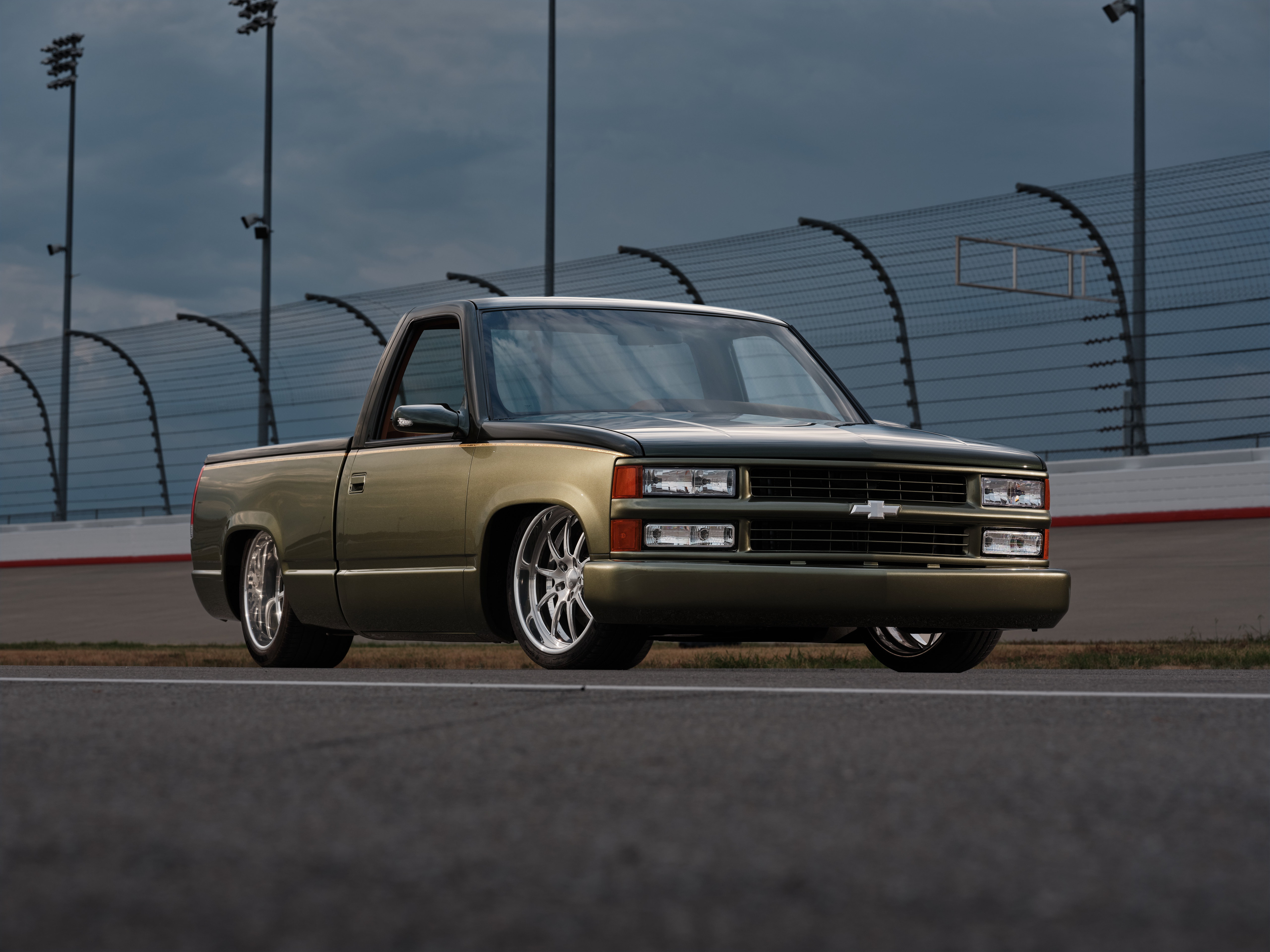

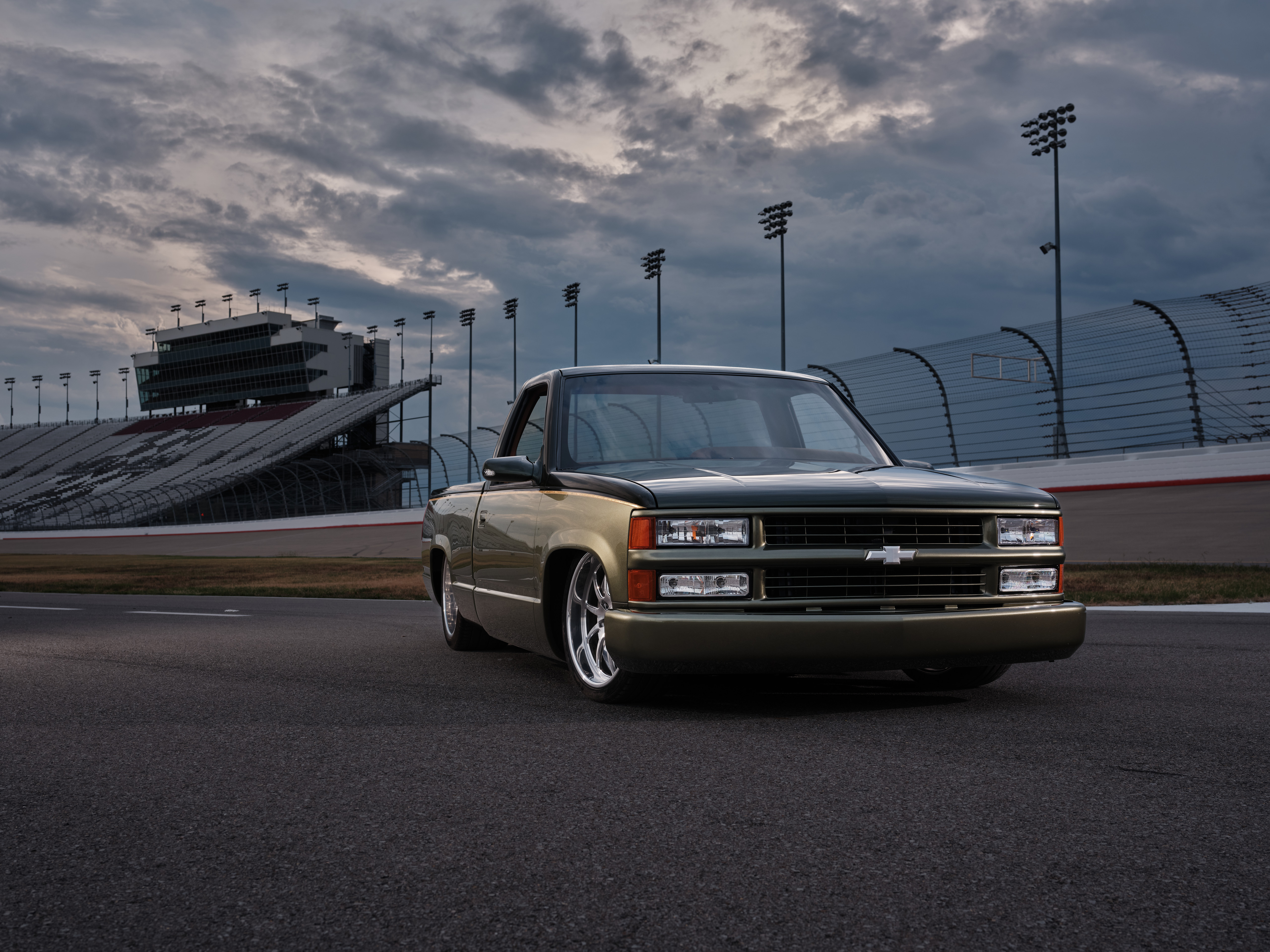

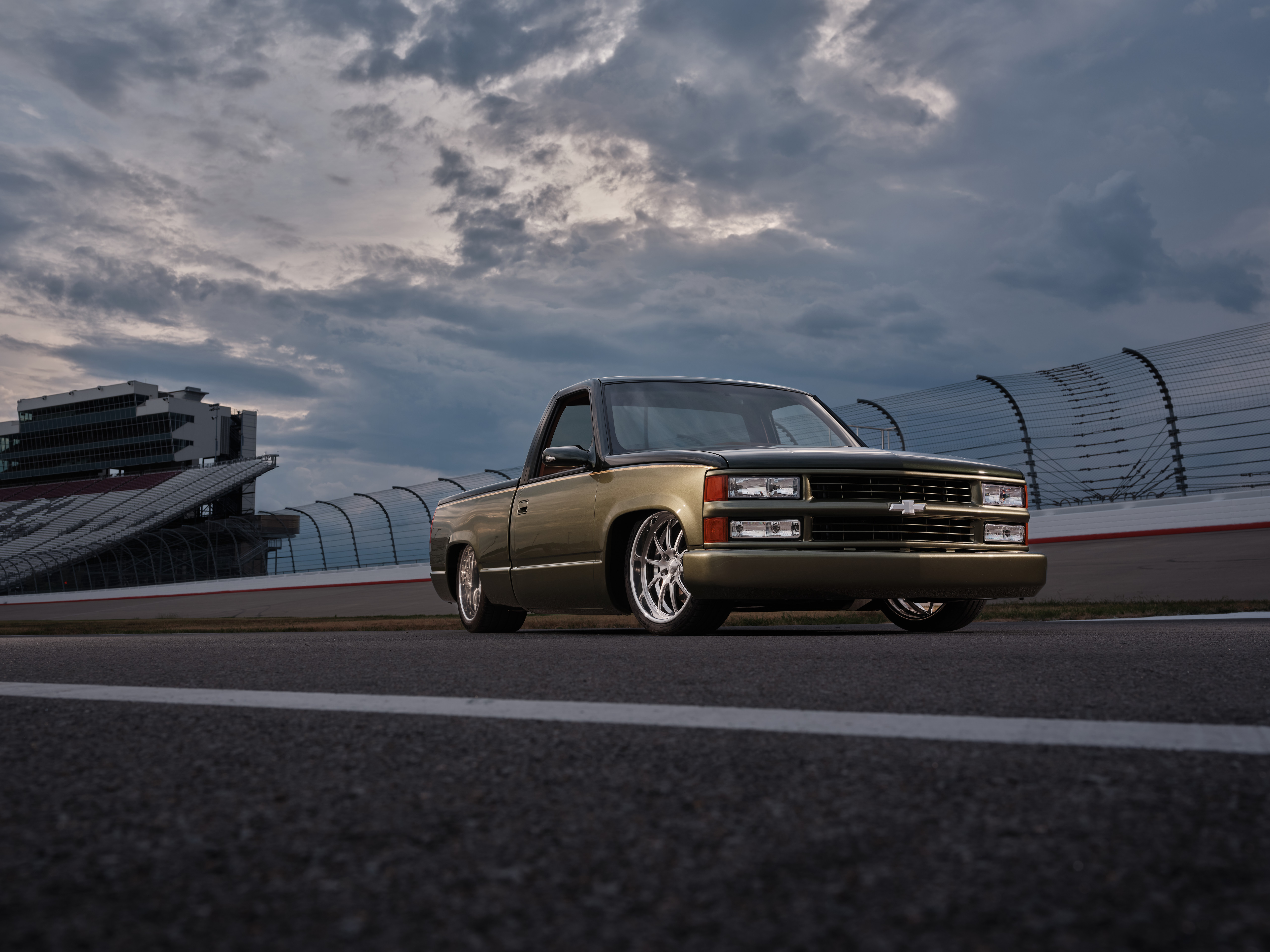

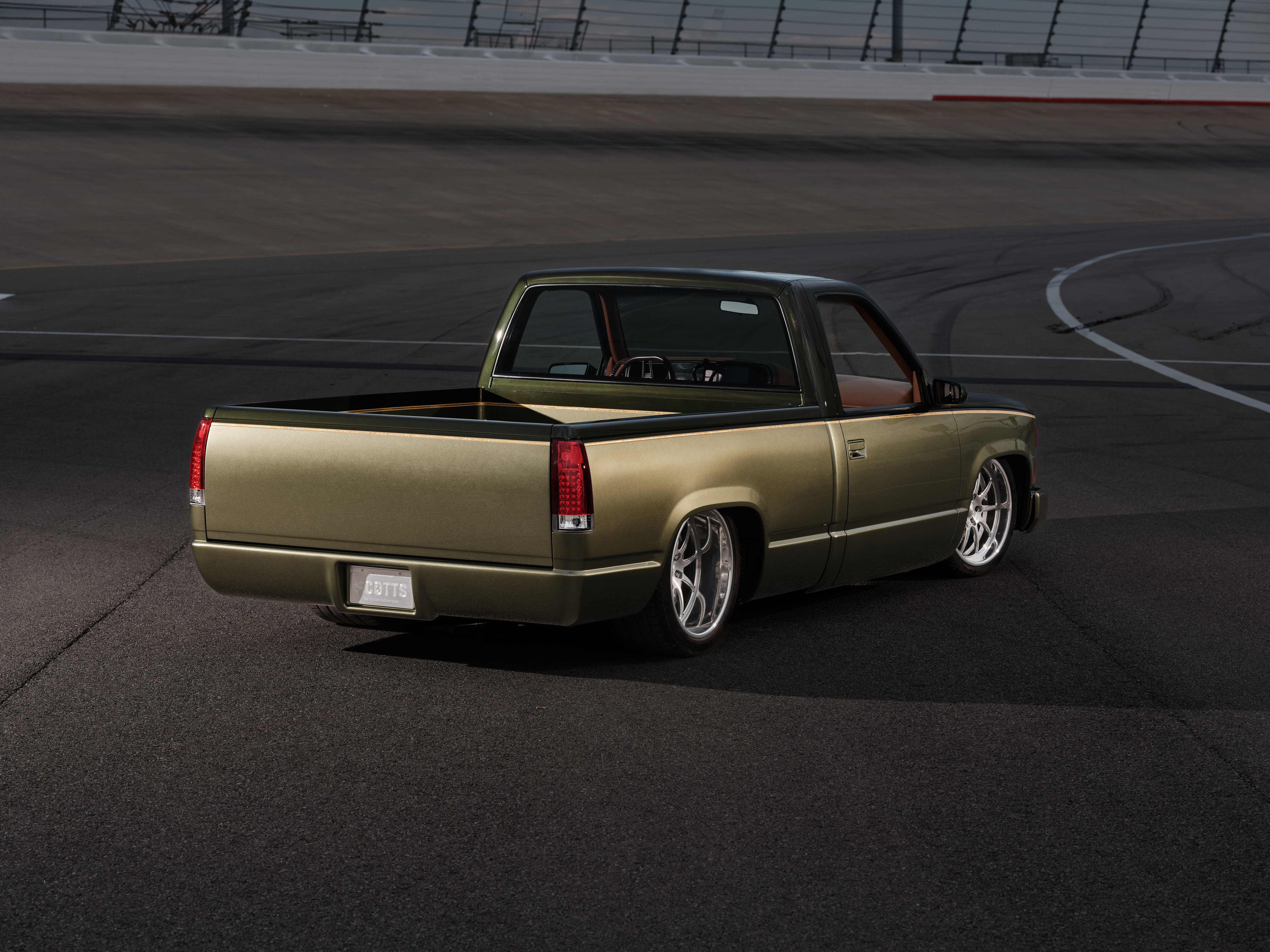

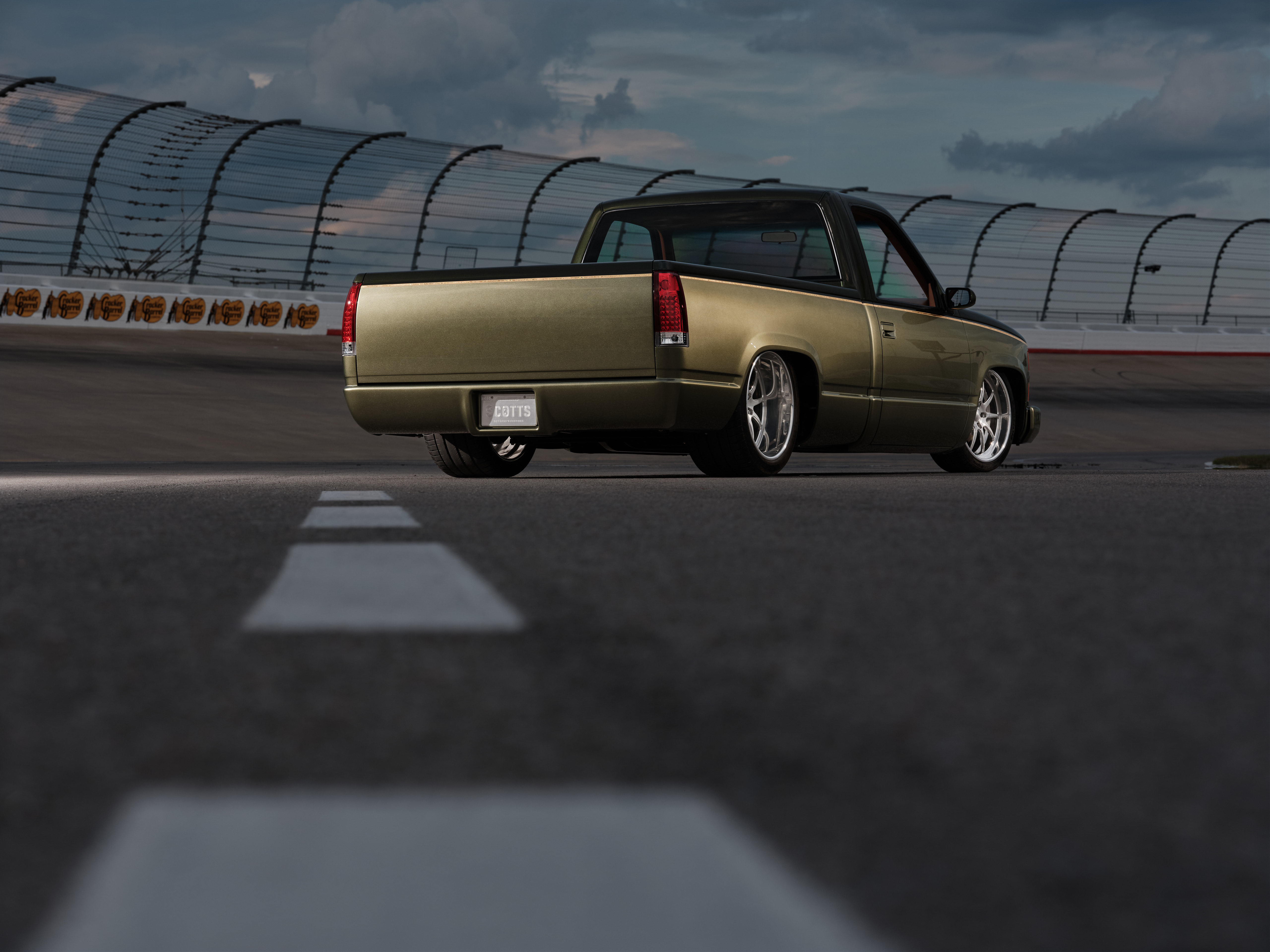

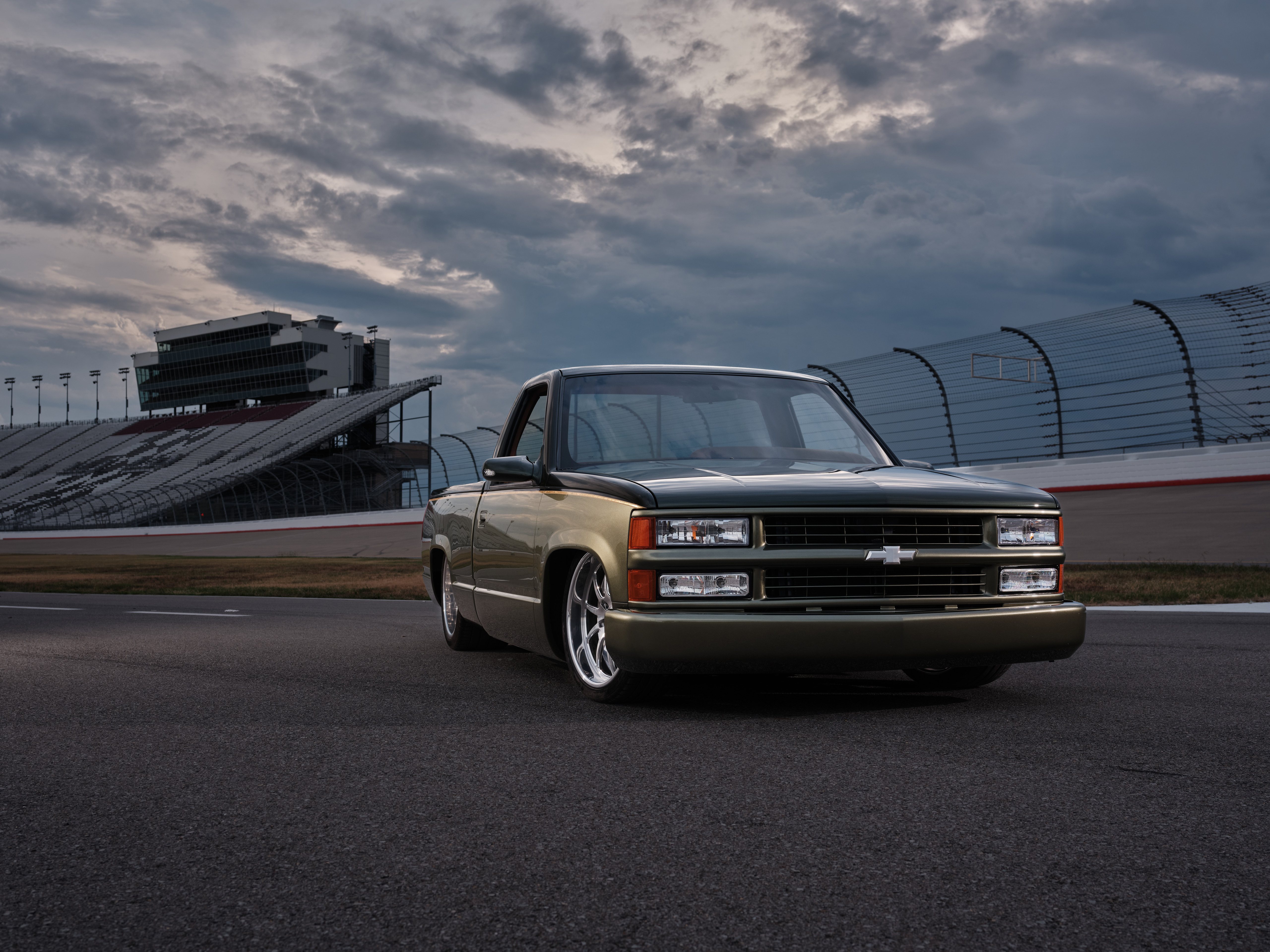

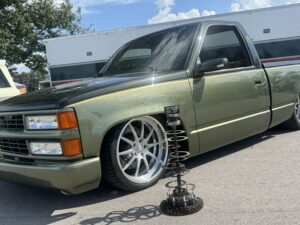

This 1995 Chevrolet OBS Single Cab Short Bed was built by Scott’s Hotrods for customer Brian Wojcik with one goal in mind: transform the classic OBS pickup into a low, aggressive and highly capable custom truck while maintaining the clean lines that made the 1988–1998 Chevy trucks so iconic.

At the foundation of the build is a complete Scott’s Hotrods custom coilover chassis, engineered specifically for the truck and designed to position the body approximately 4 inches off the ground. The chassis combines Scott’s proprietary IFS, Equal-Length Parallel 4-Bar rear suspension, RideTech coilovers, front and rear torsion spline sway bars, rack-and-pinion steering and massive Wilwood disc brakes.

’95 OBS Coilover Chassis

•2”x4” Mandrel Bent Frame Rails
•8-Point Chassis Round Tube X-member
•Cab & Bed Mounts

•Scott’s IFS
•1-piece IFS Crossmember
•Tubular Upper & Lower A-Arms
•CNC Adjustable Upper A-Arm Rod Ends
•RideTech Single-Adjustable Coilovers
•Built-in Anti-Dive
•Power Rack & Pinion
•Forged Steel Drop Spindles
•Torsion Spline Sway Bar, front

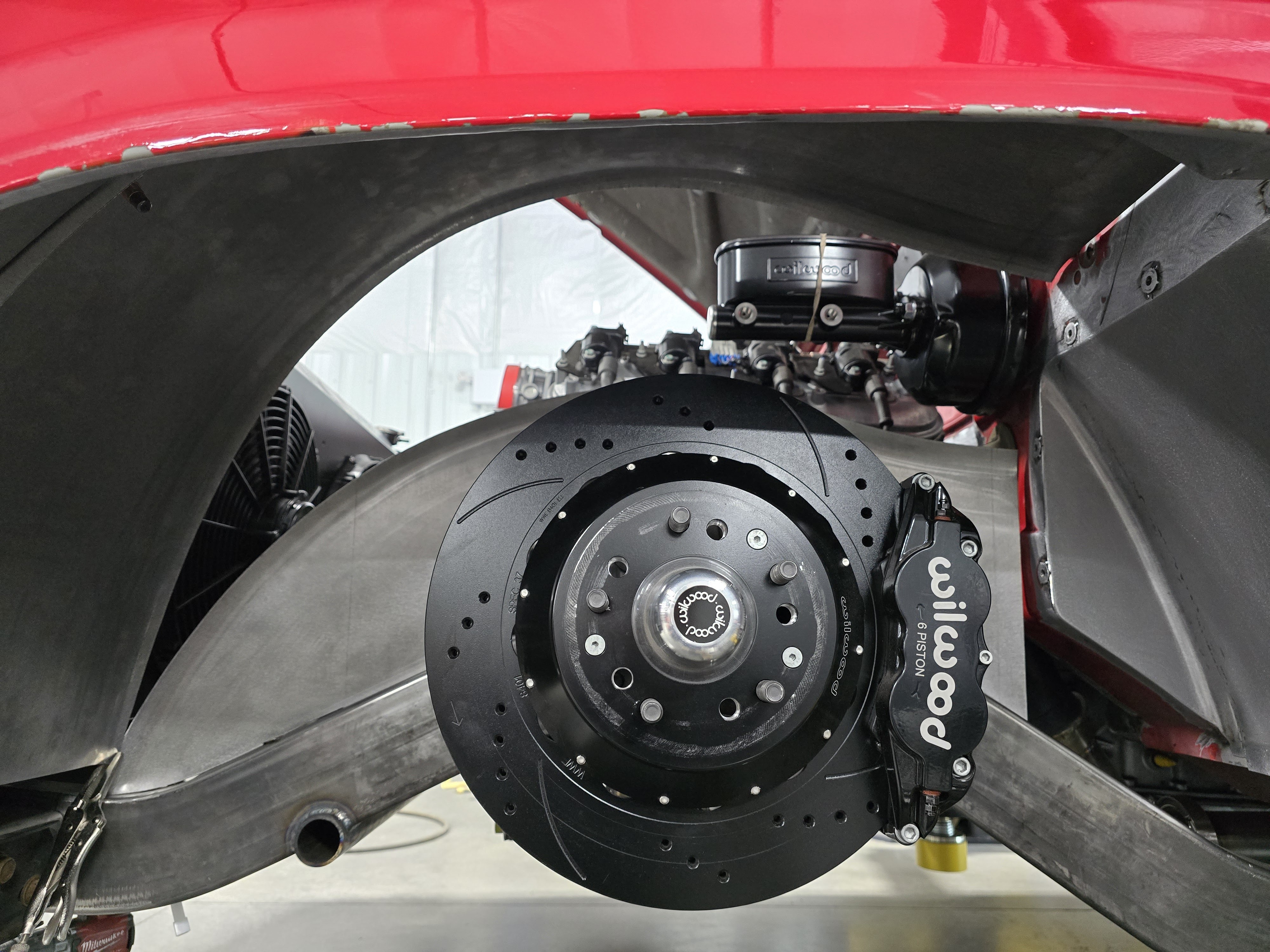

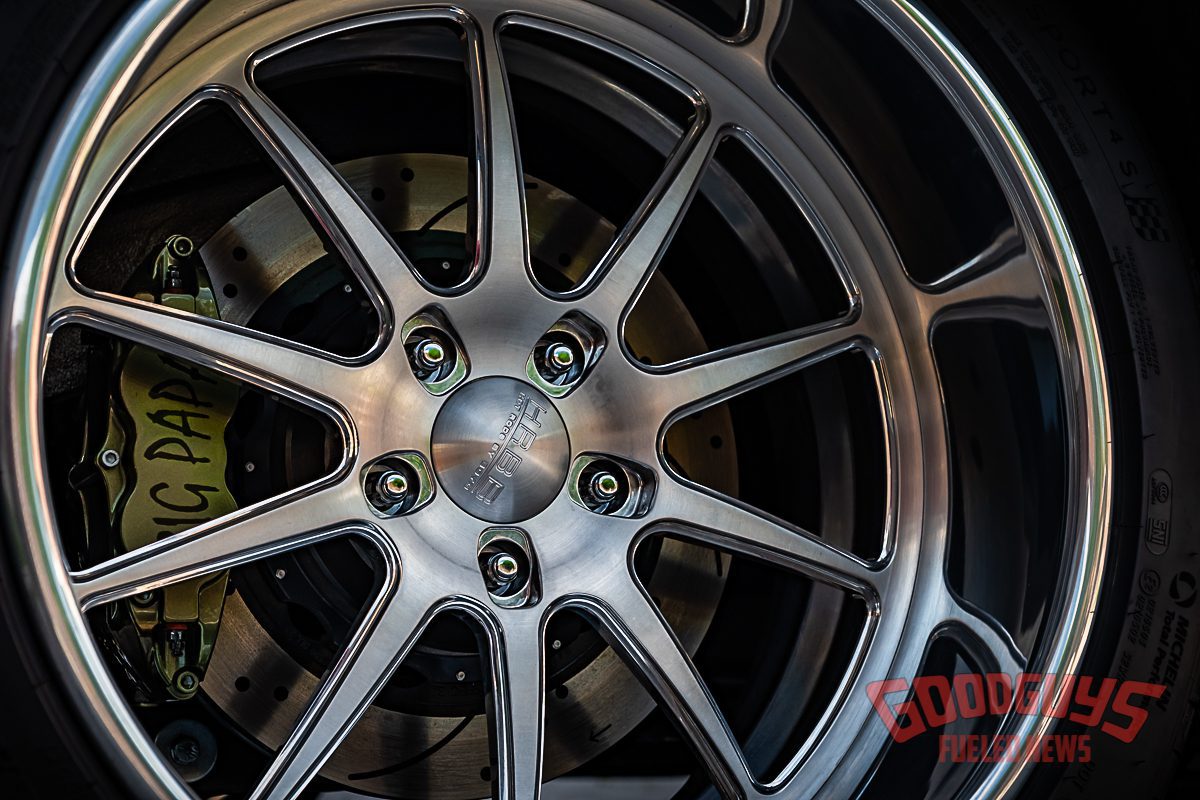

•14″ Wilwood Disc Brakes, 6-Piston Calipers

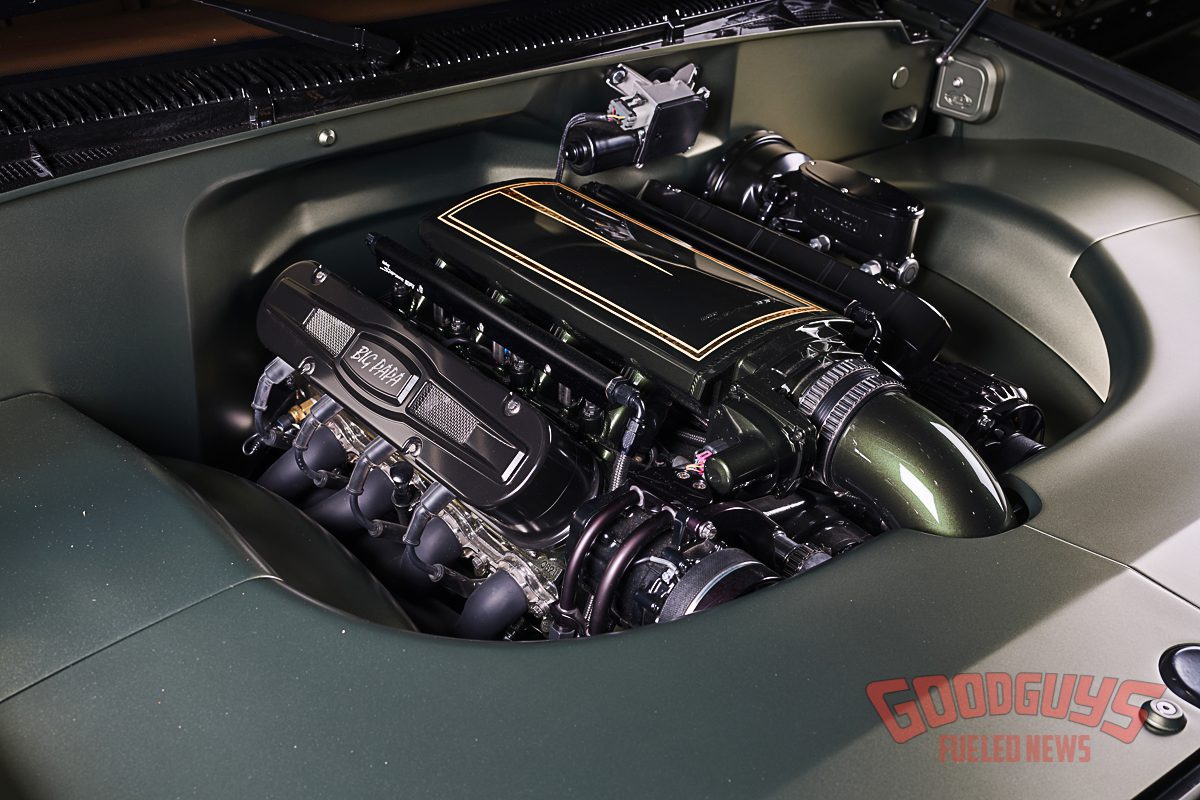

•LS Motor Mounts
•4L70E Adjustable Dropout Trans Mount

•Stainless Steel Fuel Lines Plumbed, -6AN
•Stainless Steel Brake Lines Plumbed, -3AN

•Scott’s 4-Bar Rear Suspension
•Machined Link Bars
•CNC Machined Rod Ends, RH & LH Thread
•RideTech Single-Adjustable Coilovers
•Scott’s Watt’s Link
•Moser M9 FAB Housing Fill & Drain Plug
•31-spline axles
•3.70 TrueTrac 3rd Member
•Torsion Spline Sway Bar, rear
•14″ Wilwood Disc Brakes, 4-Piston Calipers

•Scott’s Aluminum EFI Fuel Tank
•In-Tank Fuel Pump, PA-5
•Sending Unit 240-33ohm

•Fragola Brake Flex Lines, -3AN
•Wilwood Parking Brake Cables
•Borgeson Steering Linkage Kit
•Aeromotive Fuel Filter

•100% TIG-Welded
•All Grade-8 Hardware
•LIFETIME GUARANTEE

Additional Parts & Pieces on this awesome build include:

Hot Rods By Boyd HR23 20×9″, 20×12″
Michelin Tires
Vintage Air
Pro Performance Radiator

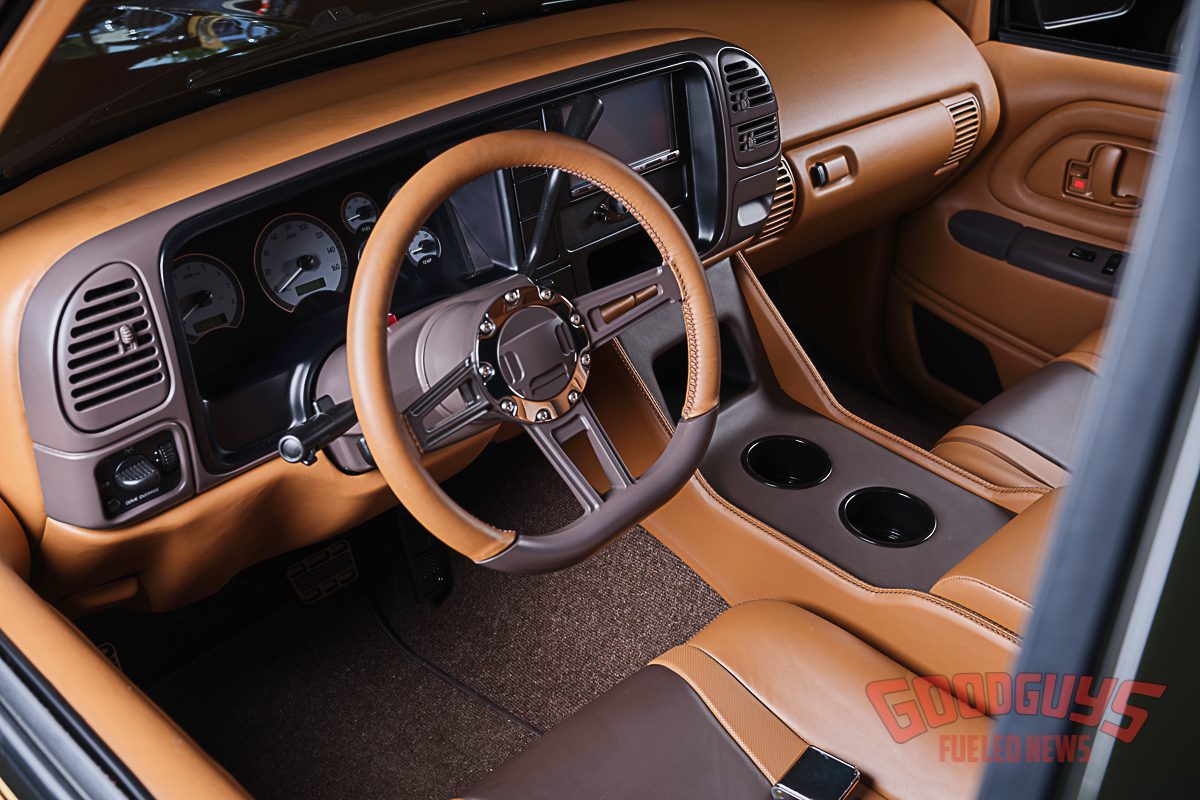

Dakota Digital Custom Gauges
Vintage Air

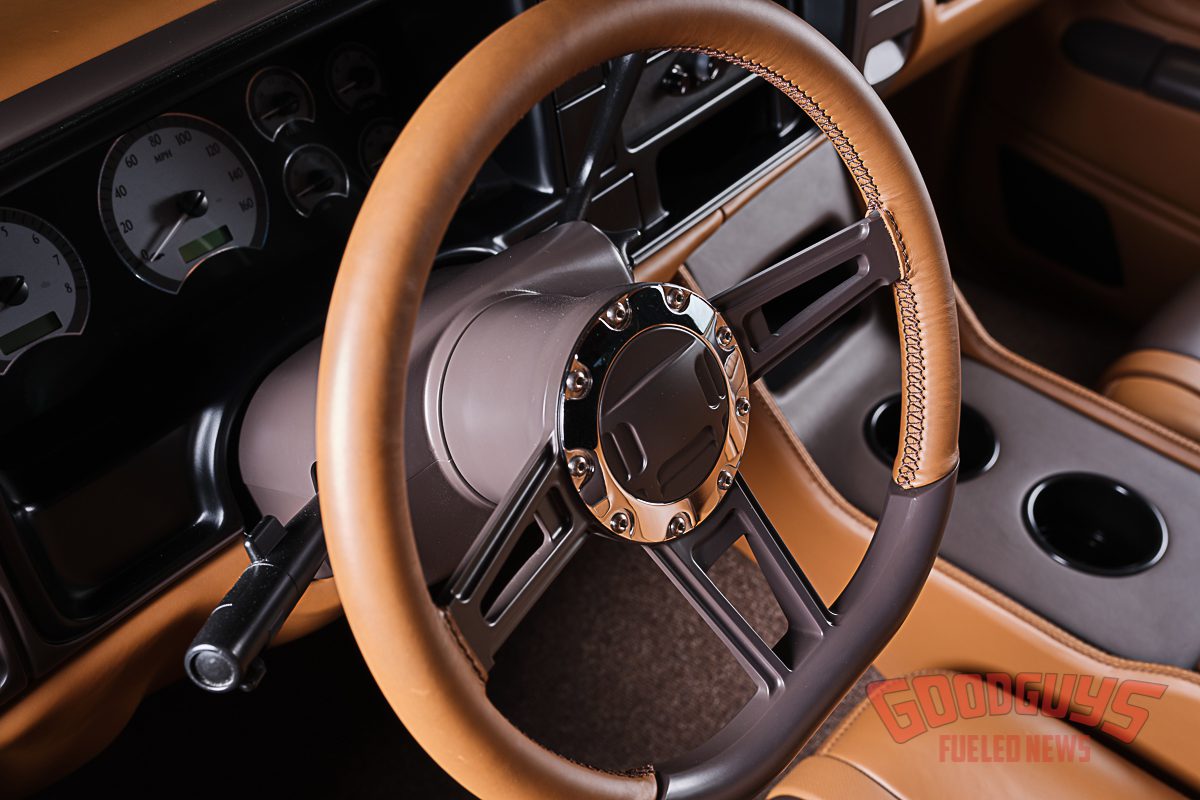

EVOD Industries Steering Wheel
Design Engineering Inc Boom Mat
Scott’s Custom Stainless Steel Headers & Exhaust
Flowmaster Mufflers

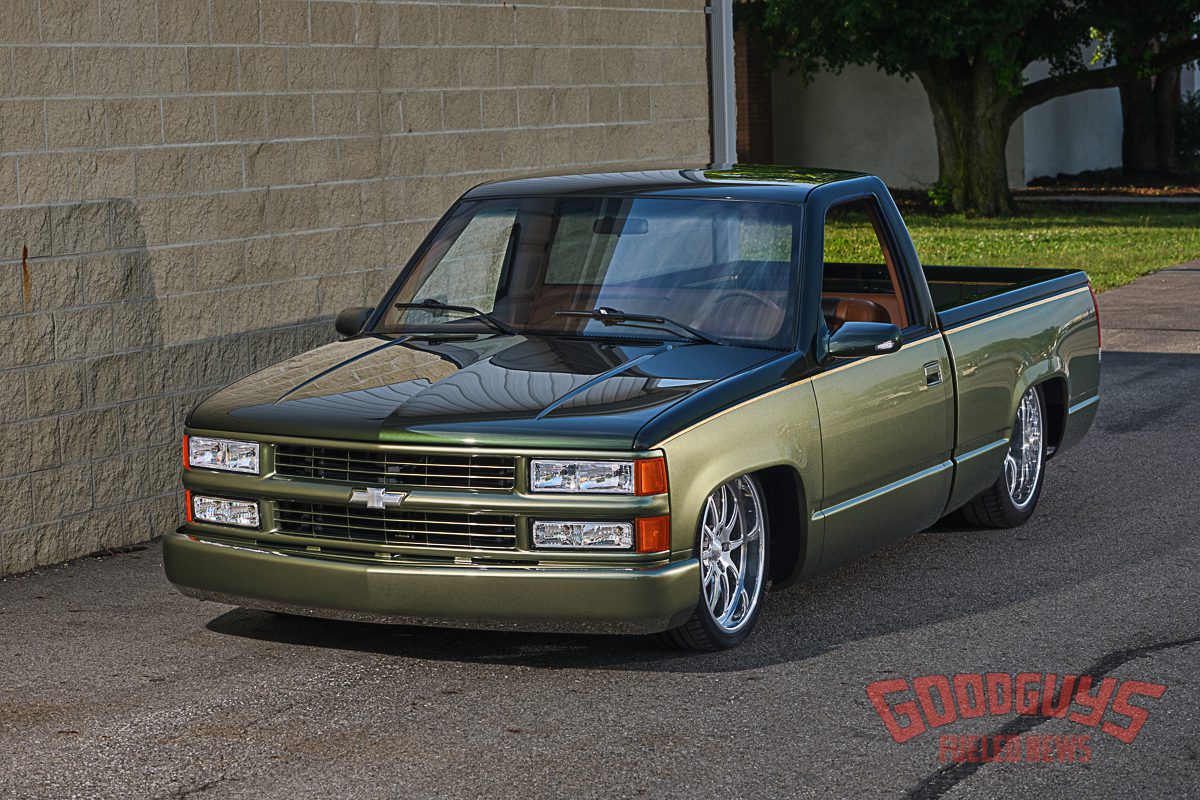

PPG Paint: Toyota Amazon Green (top) & Honda Green Tea (Bottom)

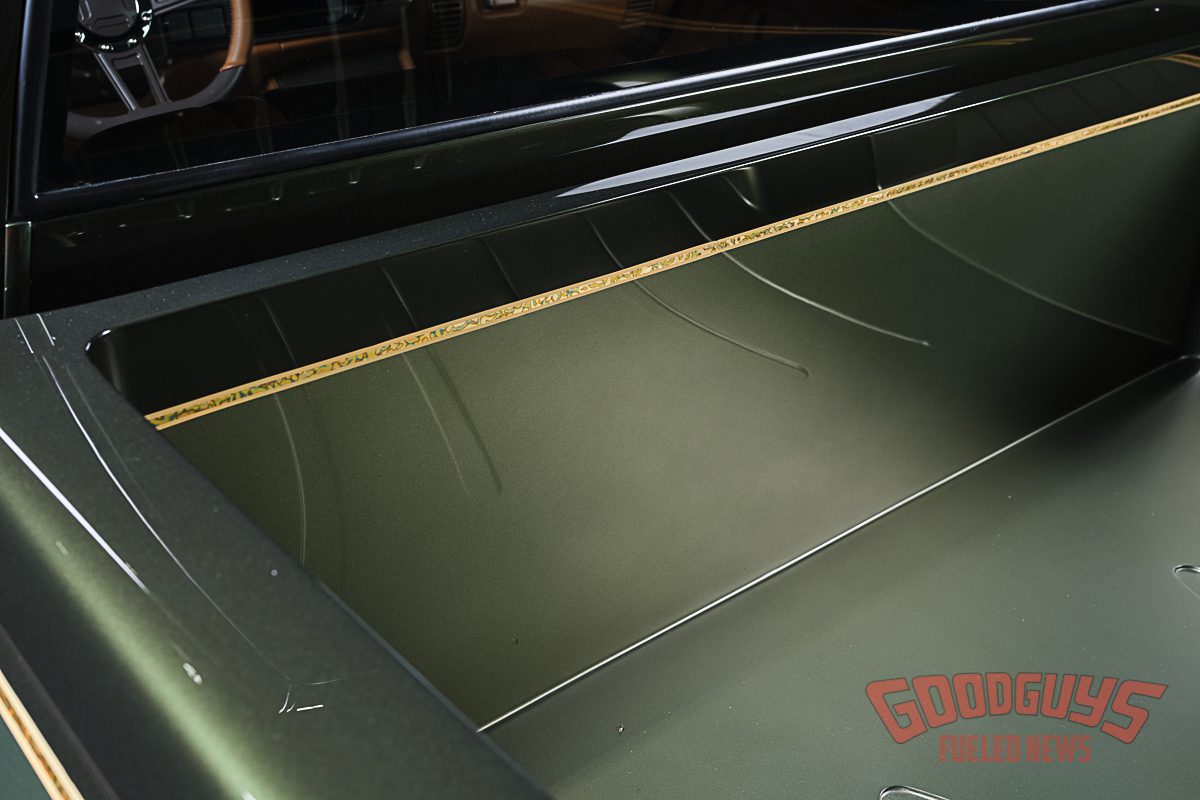

Ron Fleenor Green Variegated Gold Leaf & Pinstriping

Built by Scott’s Hotrods

This 1995 Chevrolet OBS is a great example of what happens when classic truck styling is combined with a completely modern foundation. From the custom Scott’s coilover chassis and suspension to the Wilwood brakes, Moser rear end, custom stainless exhaust and carefully selected components throughout the build, every system was designed to work together as a complete package.

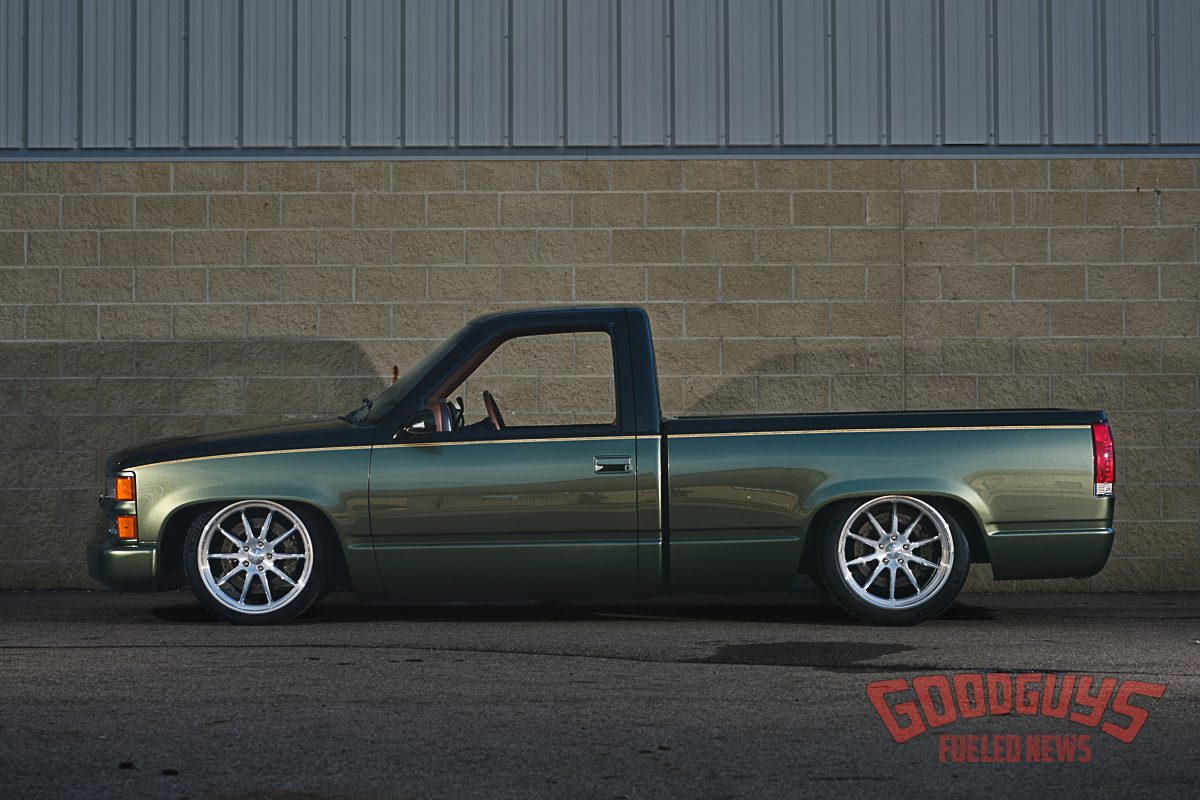

The finished truck retains the unmistakable appearance of a OBS Single Cab Short Bed, but underneath is a completely different machine—lower, stronger and engineered around modern handling, braking and performance.

Want to build your own 1988–1998 Chevy OBS on a Scott’s Hotrods chassis? Check out our complete OBS chassis options or contact Scott’s Hotrods to discuss a chassis built specifically around your truck, engine, transmission, suspension and desired ride height.

ARTICLES & VIDEOS

More Metal Magic From Scott’s Hotrods ’N Customs – Classic Truck Performance

An OBS Project Snowballs into a Finalist – Fuel Curve

Triple Crown of Rodding Awards Video

Built to Perform. Built to Stand Out.

This 1995 Chevrolet OBS Single Cab Short Bed is a perfect example of what Scott’s Hotrods can do with one of America’s most popular generations of classic trucks. By combining timeless OBS styling with a purpose-built Scott’s chassis, proprietary IFS, Equal-Length Parallel 4-Bar rear suspension, Watt’s Link and modern performance components, this truck delivers the stance, handling and performance expected from a truly modern custom build.

Whether you’re starting with a 1988–1998 Chevy or GMC OBS truck or planning a completely custom project, Scott’s Hotrods can build a chassis specifically around your vehicle, drivetrain, suspension and desired ride height. From the foundation underneath to the details that finish the build, Scott’s Hotrods builds custom trucks to look right, drive right and perform as good as they look.
