Why is Scott’s Hotrods Different?

Scott’s Hotrods ‘n Customs builds the “oddball” chassis that the other guys pass over.  If we do not already have the chassis dimensions, we will need you to fill out our Custom Chassis Spec sheet OR you can bring the stock frame to us and we can 3D Laser Scan it.  If you want it stock, mild drop, a very aggressive low ride height or bagged to layout, WE CAN DO THAT.  Scott’s Hotrods ‘n Customs IS Quality, Engineering & Workmanship. 100% TIG Welded, 100% American Made, 100% Bad Ass.

If you are looking for the MOST complete chassis available for your ’33 Plymouth Coupe, you have come to the right place. Each and every chassis is Built-To-Order per the vehicle and customer specs. Coilovers (Casual Cruiser to ProTouring) or Airbags (Lay Frame/Rocker, Adjustable On-The-Fly Ride Height).  You won’t find any leafs or drum brakes here.

Scott’s ’33 Plymouth Coupe Coilover Rear Steer Chassis – Starting at $14,410
Scott’s ’33 Plymouth Coupe SuperSlam Rear Steer Chassis – Starting at $15,220

SCOTT’S REAR STEER CHASSIS FEATURES  Starting at $14,410

• 100% TIG-Welded boxed tube frame rails

• 1-piece 2”x4”x3/16”-wall box tube IFS Crossmember

• Chassis Crossmember

• Unequal-length A-arms, 1-1/8”x1/4”-wall seamless DOM tubing

• Oversized Serviceable Press-In Ball Joints

• Single-Adjustable Coilovers or Airbags & Shocks

• Stainless Steel Fully Adjustable Upper A-Arm Rod Ends

• Built-in Anti-Dive

• Manual Rear Steer Rack & Pinion

• Wilwood ProSpindles

• Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug

• Rear Upper Shock Crossmember

• Rear 1”-1/8”x1/4”-wall, seamless DOM tubing Panhard Bar

• Rear 1”-1/8”x1/4”-wall, seamless DOM tubing link bars (adjustable RH- & LH-Thread)

• 4-Bar Rear-End Housing Brackets

• 4-Bar Frame Brackets

• All Grade-8 hardware

• LIFETIME GUARANTEE

Scott's Hotrods Chassis Pricing 2023

ITEM/UPGRADEDESCRIPTIONPRICE
COILOVER CHASSISCOILOVER CHASSIS$13,410
SUPERSLAM CHASSISSUPERSLAM CHASSIS$14,220
REAR STEER CHASSISADD$1,000
LONG BED TRUCKADD$1,400
COILOVERSAldan American Single-Adjustable$0
RideTech Single-Adjustable$1,500
Aldan American Double-Adjustable$1,100
RideTech Triple-Adjustable$3,700
RACK & PINIONPower$310
Power Rear Steer$950
SWAY BAR1" Solid Sway Bar$356
Torsion Spline Sway Bar, FRONT$770
Torsion Spline Sway Bar, FRONT & REAR$1,540
SPINDLESWILWOOD PRO$350
MOTOR MOUNTSFORD MODULAR, 4.6, 5.4, 5.0$303
SBF, WINDOSR$204
BBF, 390, 427, 428$204
BBF, 429, 460$204
LT$277
LS$204
FORD, Y-BLOCK$204
SBC$185
BBC$185
318, 360, MOPAR, EARLY$216
352, 392, MOPAR, HEMI$260
318, 360, MOPAR, LATE$216
426, MOPAR, HEMI$260
HELLCAT, MOPAR$216
440, MOPAR$216
5.7, 6.1, MOPAR, HEMI$216
TRANSMISSIONTRANS MOUNT$370
BRAKES (1/2"-20 STUDS)11" D&S Wilwood Kit, Red or Black$2,147
12" D&S Wilwood Kit, Red or Black$2,191
13" D&S Wilwood Kit, Red or Black$4,048
14" D&S Wilwood Kit, Red or Black$4,405
14" D&S Wilwood Kit, Red or Black, AERO$4,759
ALUMINUM FUEL TANKTANK +SENDER$825
TANK +SENDER +PA-4 PUMP$1,260
TANK +SENDER +PA-6 PUMP$1,337
TANK +SENDER +PA-9 PUMP$1,507
FUEL LINES - STAINLESS STEELFEED -6AN 3/8" HARDLINE$781
FEED -6AN & RETURN -6AN 3/8" HARDLINE$1,287
FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE$1,458
FEED -8AN & RETURN -8AN 1/2" HARDLINE$1,650
BRAKE LINES - STAINLESS STEELSTAINLESS BRAKE LINES +FLEX LINES$1,172
REAR ENDMOSER M9 FAB, 35-SPLINE $225
BACK BRACE$250
WATT'S LINK $1,050
TrueTrac 3rd member (31-spline)$1,980
WaveTrac 3rd member (35-spline)$2,160
POWDER COATINGCHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up.$3,300
ACCESSORIESGUNI Wheels (set of 4)$840
POWER STEERING LINE KIT$185
PARKING BRAKE CABLES$165
STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG)$415
WILWOOD COMPACT MASTER CYLINDER, BLACK$350
SCOTT'S FUEL CAP$94
CHASSIS ASSEMBLYSTANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES$0
DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED.$650
CHASSIS CRATINGNEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY)$1,350



*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

Scott's Hotrods REAR STEER IFS Quote Form Pre-1934

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

Scott’s FAQs

*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

GM Performance Parts LS Engine Oil Pan 12628771

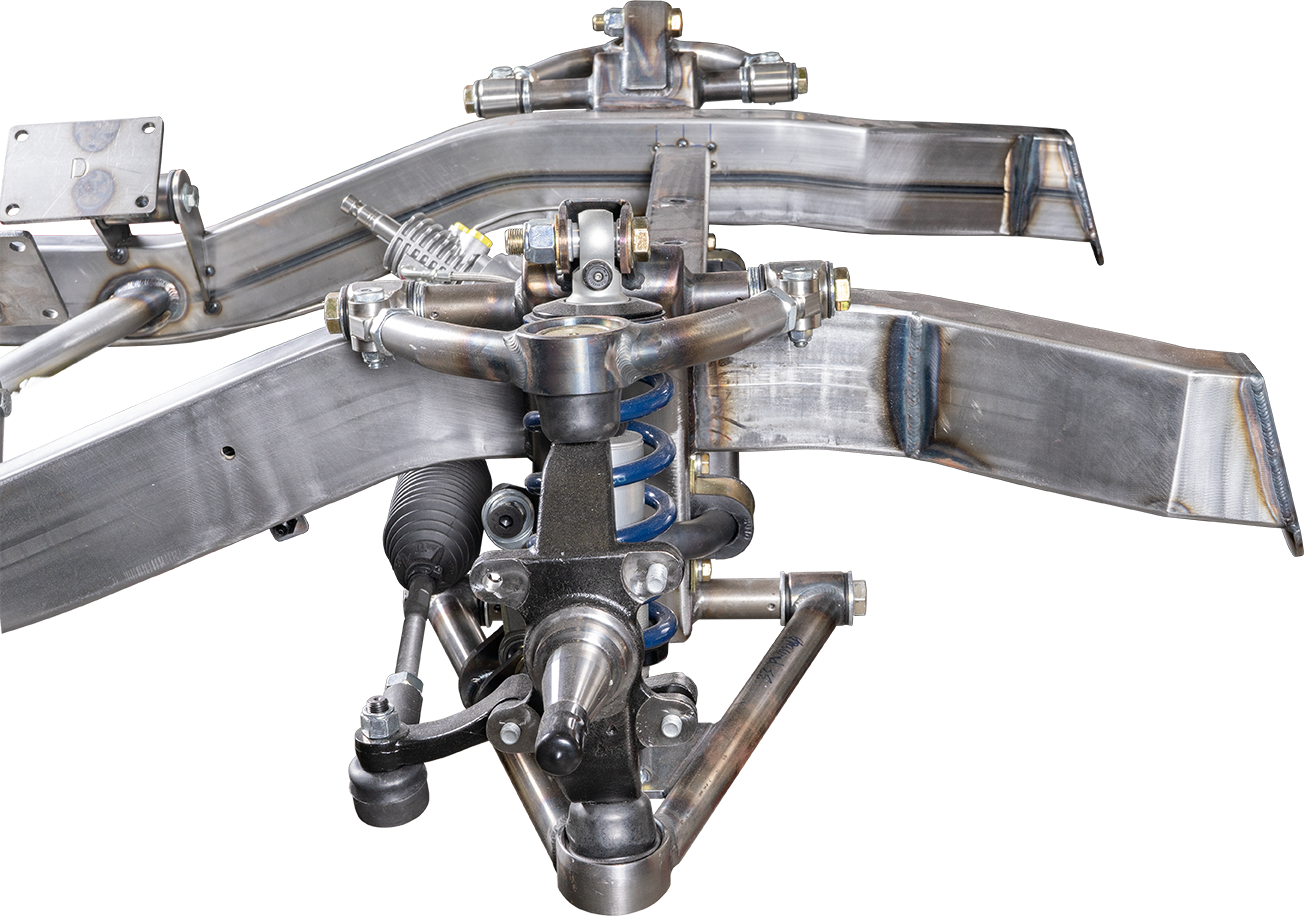

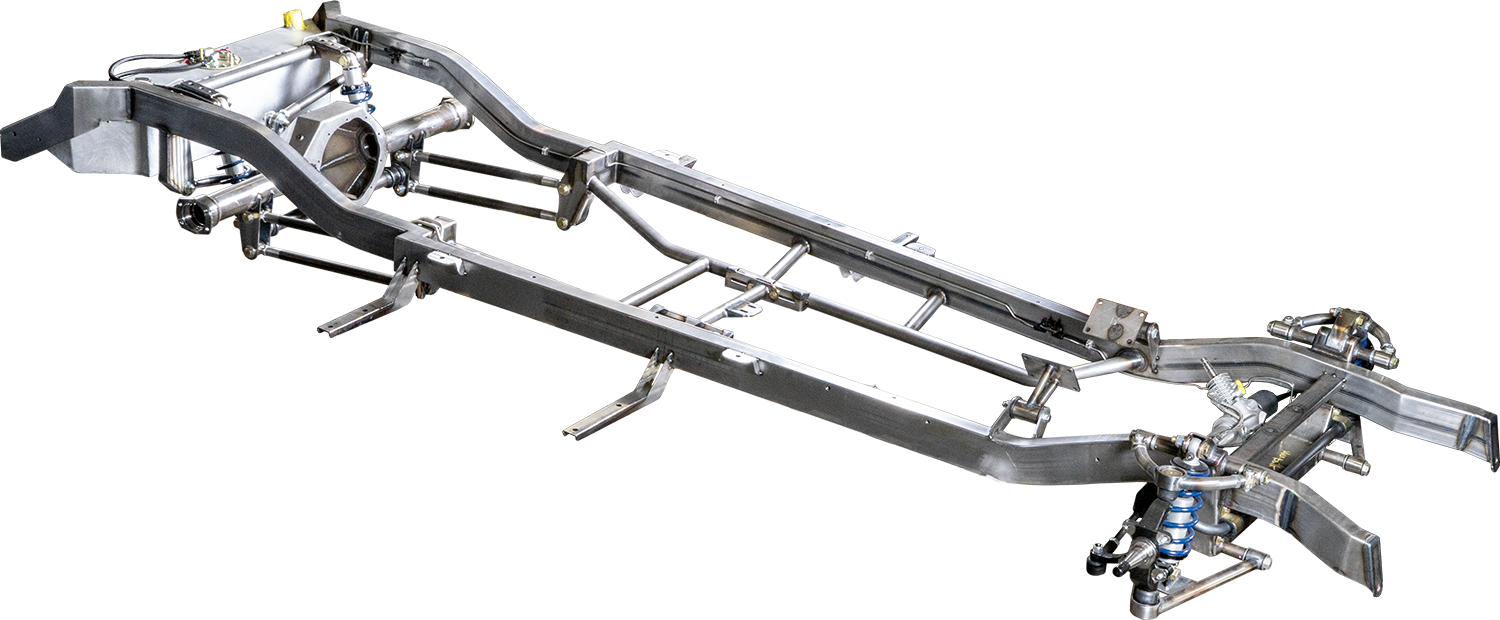

1933 Plymouth Coupe Coilover Chassis

scotts hotrods plymouth coupe coilover chassis

Scott’s Hotrods is your #1 source for custom chassis no matter what vehicle you drive!  That’s right…we build them for virtually ANY American Made application from 1925 to 1987! And, they’re designed and engineered by the finest chassis & suspension engineering team. At Scott’s Hotrods, form follows function. Our custom chassis not only look great, they truly perform on the street, on the track or wherever the road takes you! They deliver without compromising ride quality, handling or the stance you’re looking for. Each chassis is precision handcrafted in-house utilizing premium USA-made materials and backed by a limited lifetime guarantee. Trust Scott’s Hotrods to build the custom chassis of your dreams.

All of Scott’s Hotrods Chassis are built with the same quality as our IFS kits and are also 100% TIG welded. Scott’s Chassis are all Built-To-Order and are the most complete chassis you can order in today’s market meaning that you can tell us your desired ride height and chassis options including: Coilovers or Airbags and Shocks, Motor Mounts, Transmission Mount, Wilwood Brakes, complete MOSER Ford 9” rear end with a POSI 3rd member and axles, Stainless Steel Fuel & Brake lines plumbed on the chassis, aluminum fuel tank, your choice of sway bar styles and more! If you want your frame to layout 100% front to back or have a static stock ride height, we are the shop for you. All of our chassis use an 8-point crossmember for superior strength and handling. We can build a chassis for all project vehicles, any year make or model and include a lifetime warranty on craftsmanship.
