Why is Scott’s Hotrods Different?
Scott’s will build your ’67-’69 Camaro chassis specifically for you. Scott’s Hotrods ‘n Customs IS Quality, Engineering & Workmanship. 100% TIG Welded, 100% American Made, 100% Bad Ass..
If you are looking for the MOST complete chassis available for your ’67-’69 Camaro, you have come to the right place. Each and every chassis is Built-To-Order per the vehicle and customer specs. Coilovers (Casual Cruiser to ProTouring) or Airbags (Lay Frame/Rocker, Adjustable On-The-Fly Ride Height). You won’t find any leafs or drum brakes here.
Scott’s Coilover ’67-’69 Camaro Chassis – Starting at $14,685
Scott’s SuperSlam ’67-’69 Camaro Chassis – Starting at $15,495
*MORE PRICING INFORMATION IS IN THE NEXT TABS*
SCOTT’S CHASSIS FEATURES
Starting at $14,685
Includes the Following:
- Mandrel Bent 2”x4”x.120-wall tube frame rails
- Chassis Crossmember
- 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
- 100% TIG-welded
- Scott’s IFS
- Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
- Built-in Anti-Dive
- Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
- Oversized, Serviceable Press-In Ball Joints
- Standard or Drop Forged Steel Spindles
- Aldan American Single-Adjustable Coilovers or Airbags & Shocks
- Manual Steering Rack & Pinion
- Scott’s 4-Bar
- 1”-1/8”x1/4”-wall DOM tubing Link Bars (adjustable RH- & LH-Thread)
- Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
- 1”-1/8”x1/4”-wall DOM tubing Panhard Bar (adjustable RH- & LH-Thread)
- FK Bearing Heim Joints – RH- & LH-Thread
- Moser M9 FAB Housing & 31-spline axles, Fill & Drain Plug
- Scott’s Watt’s Link
- Body Mounts
- All Grade-8 Hardware
- LIFETIME GUARANTEE
Scott's Hotrods Chassis Pricing 2023
| ITEM/UPGRADE | DESCRIPTION | PRICE |
|---|---|---|
| COILOVER CHASSIS | COILOVER CHASSIS | $13,410 |
| SUPERSLAM CHASSIS | SUPERSLAM CHASSIS | $14,220 |
| REAR STEER CHASSIS | ADD | $1,000 |
| LONG BED TRUCK | ADD | $1,400 |
| COILOVERS | Aldan American Single-Adjustable | $0 |
| RideTech Single-Adjustable | $1,500 | |
| Aldan American Double-Adjustable | $1,100 | |
| RideTech Triple-Adjustable | $3,700 | |
| RACK & PINION | Power | $310 |
| Power Rear Steer | $950 | |
| SWAY BAR | 1" Solid Sway Bar | $356 |
| Torsion Spline Sway Bar, FRONT | $770 | |
| Torsion Spline Sway Bar, FRONT & REAR | $1,540 | |
| SPINDLES | WILWOOD PRO | $350 |
| MOTOR MOUNTS | FORD MODULAR, 4.6, 5.4, 5.0 | $303 |
| SBF, WINDOSR | $204 | |
| BBF, 390, 427, 428 | $204 | |
| BBF, 429, 460 | $204 | |
| LT | $277 | |
| LS | $204 | |
| FORD, Y-BLOCK | $204 | |
| SBC | $185 | |
| BBC | $185 | |
| 318, 360, MOPAR, EARLY | $216 | |
| 352, 392, MOPAR, HEMI | $260 | |
| 318, 360, MOPAR, LATE | $216 | |
| 426, MOPAR, HEMI | $260 | |
| HELLCAT, MOPAR | $216 | |
| 440, MOPAR | $216 | |
| 5.7, 6.1, MOPAR, HEMI | $216 | |
| TRANSMISSION | TRANS MOUNT | $370 |
| BRAKES (1/2"-20 STUDS) | 11" D&S Wilwood Kit, Red or Black | $2,147 |
| 12" D&S Wilwood Kit, Red or Black | $2,191 | |
| 13" D&S Wilwood Kit, Red or Black | $4,048 | |
| 14" D&S Wilwood Kit, Red or Black | $4,405 | |
| 14" D&S Wilwood Kit, Red or Black, AERO | $4,759 | |
| ALUMINUM FUEL TANK | TANK +SENDER | $825 |
| TANK +SENDER +PA-4 PUMP | $1,260 | |
| TANK +SENDER +PA-6 PUMP | $1,337 | |
| TANK +SENDER +PA-9 PUMP | $1,507 | |
| FUEL LINES - STAINLESS STEEL | FEED -6AN 3/8" HARDLINE | $781 |
| FEED -6AN & RETURN -6AN 3/8" HARDLINE | $1,287 | |
| FEED -8AN 1/2" & RETURN -6AN 3/8" HARDLINE | $1,458 | |
| FEED -8AN & RETURN -8AN 1/2" HARDLINE | $1,650 | |
| BRAKE LINES - STAINLESS STEEL | STAINLESS BRAKE LINES +FLEX LINES | $1,172 |
| REAR END | MOSER M9 FAB, 35-SPLINE | $225 |
| BACK BRACE | $250 | |
| WATT'S LINK | $1,050 | |
| TrueTrac 3rd member (31-spline) | $1,980 | |
| WaveTrac 3rd member (35-spline) | $2,160 | |
| POWDER COATING | CHASSIS BLACK. Includes Reassembly. WET Assembly IF being picked up. | $3,300 |
| ACCESSORIES | GUNI Wheels (set of 4) | $840 |
| POWER STEERING LINE KIT | $185 | |
| PARKING BRAKE CABLES | $165 | |
| STEERING LINKAGE KIT (U-JOINTS, STEERING SHAFT, INTERMEDIATE HEIM & BUNG) | $415 | |
| WILWOOD COMPACT MASTER CYLINDER, BLACK | $350 | |
| SCOTT'S FUEL CAP | $94 | |
| CHASSIS ASSEMBLY | STANDARD. BRAKES, AXLES & 3RD MEMBER STAY IN BOXES | $0 |
| DRY ASSEMBLY, ROLLER. BRAKES, AXLES & 3RD MEMBER INSTALLED. | $650 | |
| CHASSIS CRATING | NEW 2x6" & 4x4" Wood All Screwed Together (Standard Assembly ONLY) | $1,350 |
*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771
Some slight floor modifications are required to fit the chassis properly. Small pockets for the frame rails behind the front seats and the stock rear subframe rails need to be shaved.
A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.
We stand behind ALL of the parts we manufacture. Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties. We are not responsible for these items outside of their original warranty.
All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.
GM Performance Parts LS Engine Oil Pan 12628771
Chevrolet Performance Oil Pump Pickup 12558251

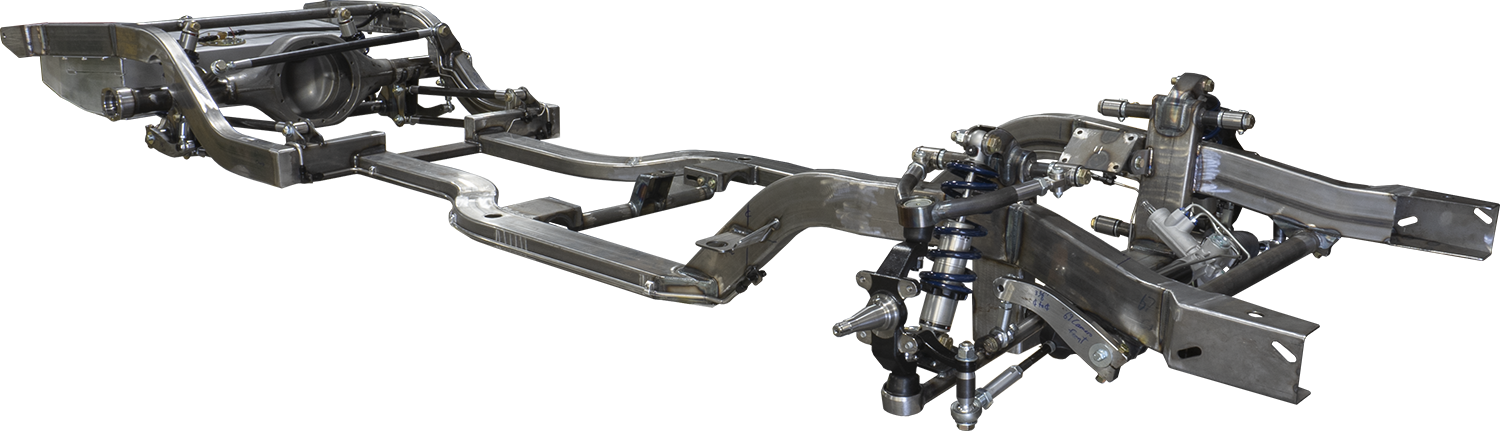

New Mandrel Bent Chevrolet Camaro Coilover Chassis
Scott’s Hotrods manufactures the most complete chassis on the market for ANY Year/Make/Model vehicle from 1925 to 1987.
Every car project can benefit from replacing the old, worn out and weak stock chassis with a brand new, rigid, American made custom chassis. Every Scott’s Chassis is fully built from raw materials using our chassis tables and vehicle-specific jigs to ensure tighter-than-factory tolerances.
We engineer chassis for all different types of applications: Street Cruiser, ProStreet, ProTouring, Low Static Ride Height, 100% Stock-Appearing or completely laid out on the ground. Our SuperSlam Chassis will lay frame 100% front to back. All of our chassis are set up for your desired ride height, your handling characteristics and your custom track or wheelbase.
All Scott’s chassis feature our IFS & 4-Bar with either Coilovers or Airbags with external shocks and Disc Brakes on all four corners. We do not offer lesser quality components leaf springs and drums brakes.
We even build complete chassis for Unibody vehicles, giving them the rigidity they so desperately need. The chassis and crossmembers are built to accommodate the full seating area; unlike other chassis manufacturers that use cookie-cutter chassis patterns & components that can cause you to lose some seating room.
Our application-specific, custom tubular crossmember, or square tube x-member in some cases, is tailored to the specific application of each customer.
Although the little things can get overlooked by other manufacturers, floor clearance, exhaust clearance and rigidity are essential traits for every custom chassis we build. We take the extra time to make sure all of the little things are not overlooked.
